It uses Through-beam sensing. The nominal sensing distance is 20 m.
The sensing principle is Through-beam. Its Axial optical arrangement is paired with a nominal sensing distance of 20 m.
A switching frequency of 500 Hz.
No-load supply current is ≤ 40 mA. Maximum ripple is 10%.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Ingress protection is rated IP67.
Dimensions are 50X50 mm and the connection is 2 m PVC Cable. Weight is 200 g.
The operating temperature range is - 20 °C…+ 60 °C (UL omologation 0 °C…60 °C). EMC compatibility is EN 60947-5-2.

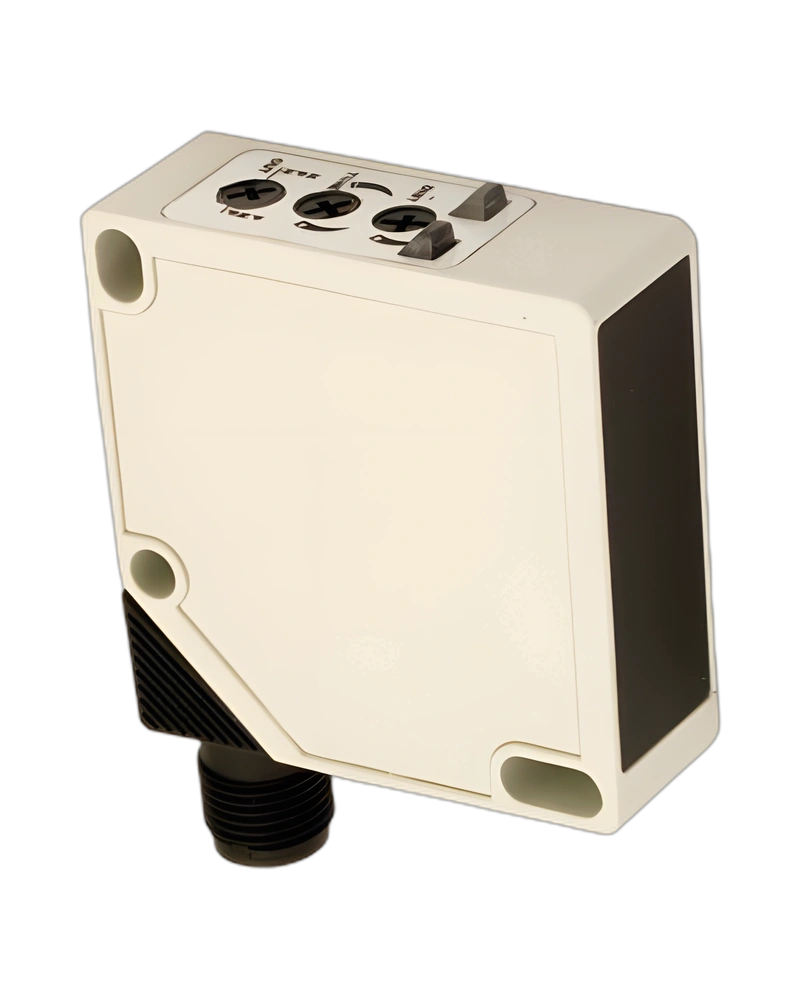

The manufacturer part number is Q50ID/B0-0A. This model is manufactured by M.D. Micro Detectors. Axial is Operating principle:.
Time to availability is ≤ 1 ms.
Q50ID/B0-0A uses Through-beam sensing with a nominal sensing distance of 20 m. For electrical integration, it provides switching frequency 500 Hz. The physical configuration includes dimensions 50X50 mm, 2 m PVC Cable connection. It is rated IP67 for an operating temperature range of - 20 °C…+ 60 °C (UL omologation 0 °C…60 °C).
| Specification | Details |
|---|---|
| Model | Q50ID/B0-0A |
| Manufacturer part number | Q50ID/B0-0A |
| Manufacturer | M.D. Micro Detectors |
| Switching frequency | 500 Hz |
| Weight | 200 g |
| Active head material | PMMA |
| Operating temperature | - 20 °C…+ 60 °C ( UL omologation 0 °C…60 °C) |
| Dimensions | 50X50 mm |
| Connection | 2 m PVC Cable |
| Optical position | Axial |
| Operating principle | Through-beam |
| Nominal sensing distance | 20 m |
| Degree of protection | IP67 |
| EMC compatibility | EN 60947-5-2 |
| Time to availability | ≤ 1 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | 10% |
| Load current | ≤ 200 mA |
| No-load supply current | ≤ 40 mA |
