Explore performance details, construction highlights, applications, and technical information in one clear overview.
It uses Through-beam sensing. The nominal sensing distance is 20 m.
The sensing principle is Through-beam. Its Axial optical arrangement is paired with a nominal sensing distance of 20 m.
A switching frequency of 20 Hz.
The operating voltage is 12-240 VDC/ 24-240 VAC/50-60 Hz. Short-circuit protection is Yes. Reverse polarity protection is Yes.
Ingress protection is rated IP67.
Dimensions are 50X50 mm and the connection is 2 m PVC Cable. Weight is 200 g.
The operating temperature range is - 20 °C…+ 60 °C (UL omologation 0 °C…60 °C). EMC compatibility is EN 60947-5-2.

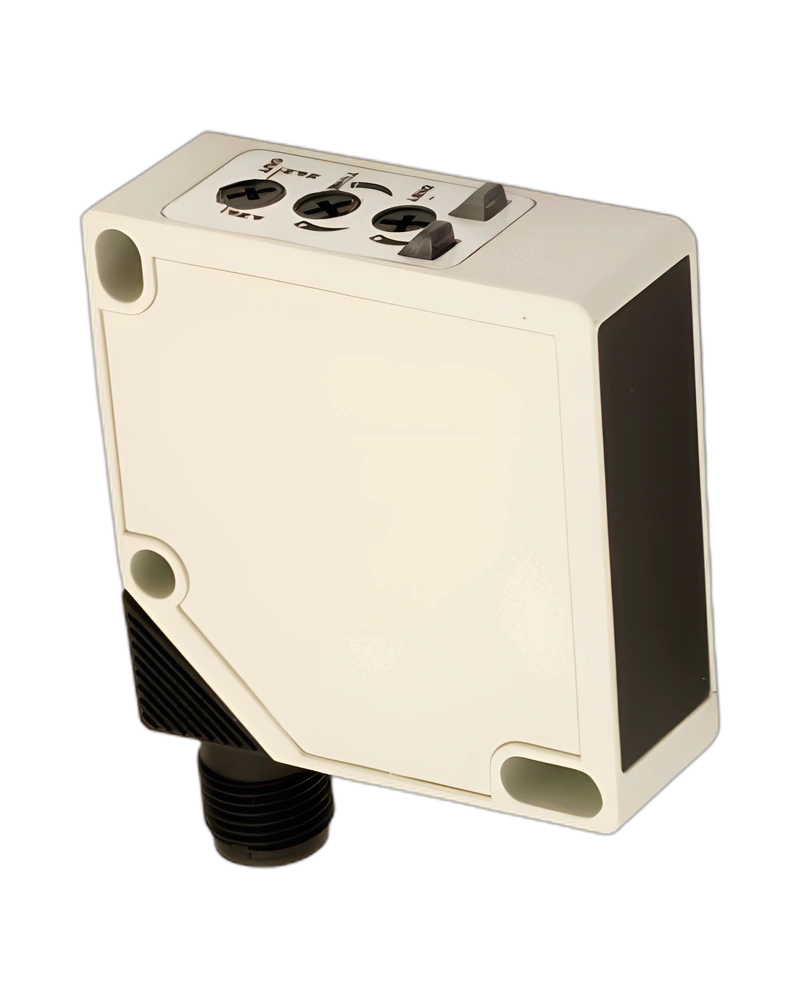

The manufacturer part number is Q50ID/0T-0A. This model is manufactured by M.D. Micro Detectors.
| Specification | Details |
|---|---|
| Model | Q50ID/0T-0A |
| Manufacturer part number | Q50ID/0T-0A |
| Manufacturer | M.D. Micro Detectors |
| Switching frequency | 20 Hz |
| Weight | 200 g |
| Active head material | PMMA |
| Operating temperature | - 20 °C…+ 60 °C ( UL omologation 0 °C…60 °C) |
| Dimensions | 50X50 mm |
| Connection | 2 m PVC Cable |
| Optical position | Axial |
| Operating principle | Through-beam |
| Nominal sensing distance | 20 m |
| Degree of protection | IP67 |
| EMC compatibility | EN 60947-5-2 |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Operating voltage | 12-240 VDC/ 24-240 VAC/50-60 Hz |
