Explore performance details, construction highlights, applications, and technical information in one clear overview.
The nominal sensing distance is 0.1…1 m.
Its Axial optical arrangement is paired with a nominal sensing distance of 0.1…1 m. The optical emission is Infrared.
A switching frequency of 500 Hz.
The operating voltage is 10-30 VDC, with load current of ≤ 200 mA. No-load supply current is ≤ 40 mA.
Maximum ripple is 10%. Short-circuit protection is Yes. Reverse polarity protection is Yes.
Ingress protection is rated IP67.
Dimensions are 50X50 mm and the connection is 2 m PVC Cable. Weight is 200 g.
The operating temperature range is - 20 °C…+ 60 °C (UL omologation 0 °C…60 °C). EMC compatibility is EN 60947-5-2.

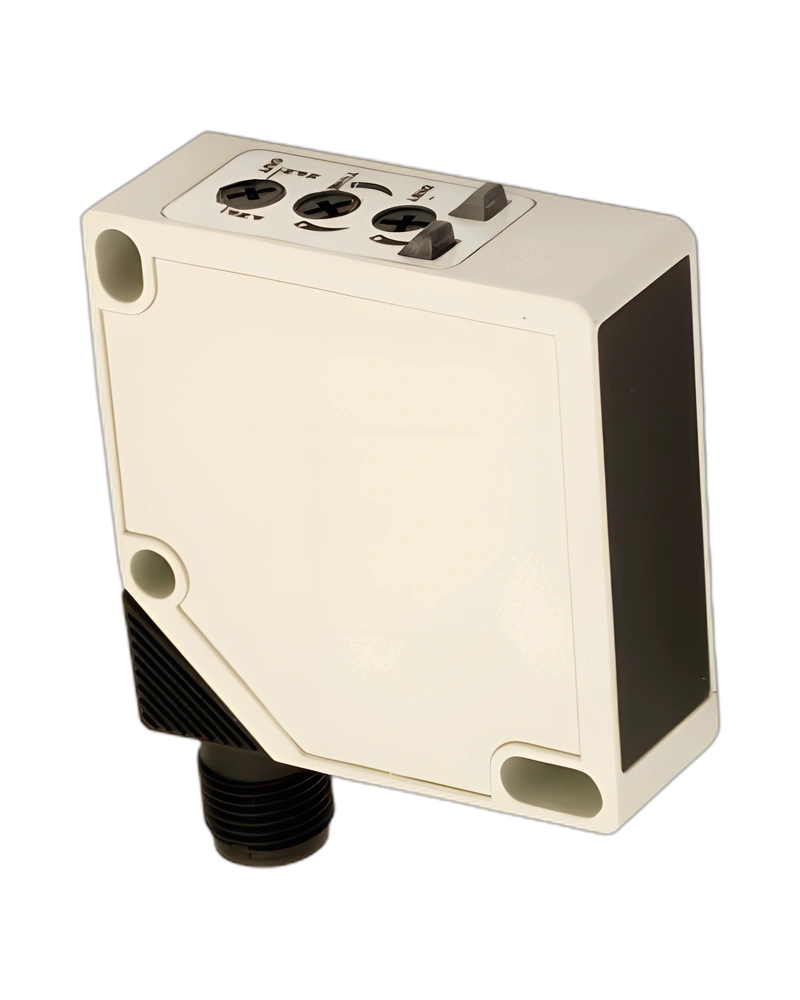

The manufacturer part number is Q50I6/B0-0A. This model is manufactured by M.D. Micro Detectors. Axial is Operating principle:.
For electrical integration, it provides operating voltage 10-30 VDC, switching frequency 500 Hz. The physical configuration includes dimensions 50X50 mm, 2 m PVC Cable connection. It is rated IP67 for an operating temperature range of - 20 °C…+ 60 °C (UL omologation 0 °C…60 °C).
| Specification | Details |
|---|---|
| Model | Q50I6/B0-0A |
| Manufacturer part number | Q50I6/B0-0A |
| Manufacturer | M.D. Micro Detectors |
| Switching frequency | 500 Hz |
| Weight | 200 g |
| Active head material | PMMA |
| Operating temperature | - 20 °C…+ 60 °C ( UL omologation 0 °C…60 °C) |
| Dimensions | 50X50 mm |
| Connection | 2 m PVC Cable |
| Optical position | Axial |
| Nominal sensing distance | 0.1…1 m |
| Degree of protection | IP67 |
| EMC compatibility | EN 60947-5-2 |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | 10% |
| Operating voltage | 10-30 VDC |
| Load current | ≤ 200 mA |
| No-load supply current | ≤ 40 mA |
| Emission | Infrared |
