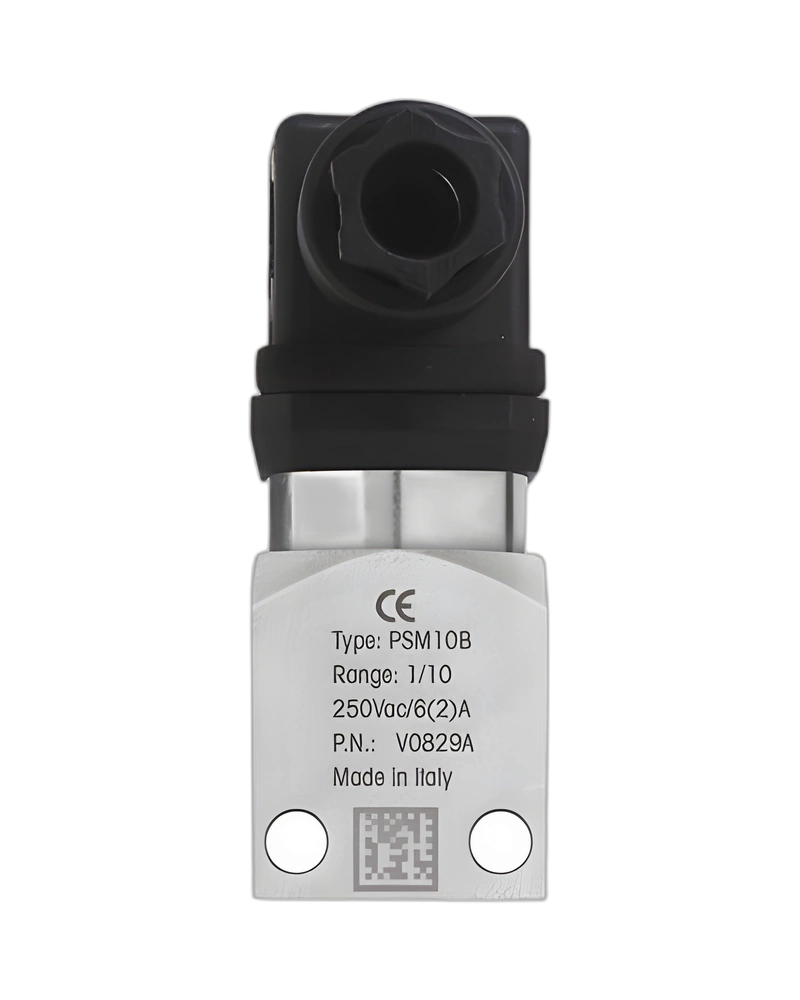

The ELETTROTEC PSM10BGL24 - PSM...B - Pressure switch with SPDT contacts for panel mounting - PSM...B - Pressure switch with SPDT contacts for panel mounting - PSM-PSP...CE is a panel-mounted pressure switch with SPDT contacts designed for industrial applications. This pressure switch operates within a temperature range of -30°C to +140°C, features adjustable hysteresis (10%-30% of set-point), and supports maximum static pressure of 300 bar. It is suitable for high-reliability environments with mechanical life up to 106 cycles and IP65 protection.
The ELETTROTEC PSM10BGL24 - PSM...B - Pressure switch with SPDT contacts for panel mounting - PSM...B - Pressure switch with SPDT contacts for panel mounting - PSM-PSP...CE is a robust, panel-mounted pressure switch with SPDT contacts engineered for demanding industrial environments. This pressure switch delivers precise pressure monitoring and switching capabilities with a wide operating temperature range of -30°C to +140°C, making it ideal for applications where extreme conditions are encountered. Its adjustable hysteresis (10%-30% of set-point) ensures accurate switching behavior, while the IP65 protection rating provides effective dust and water resistance for harsh industrial settings.
The PSM10BGL24 - PSM...B - Pressure switch with SPDT contacts for panel mounting - PSM-PSP...CE features a diaphragm type construction with a maximum static pressure rating of 300 bar. It operates within a temperature range of -30°C to +140°C, depending on the diaphragm and seal material. The switch supports adjustable hysteresis between 10% and 30% of the set-point value. It has a mechanical life of 106 cycles at 25°C and requires a maximum tightening torque of 5 kgm for secure installation. The IP65 protection rating ensures resistance to dust and water ingress, making it suitable for industrial environments.
This pressure switch functions reliably across a wide temperature range (-30°C to +140°C), depending on the diaphragm and seal material used. It is designed for operation with a maximum static pressure of 300 bar, with a tolerance of ±0.2 bar. The switch can handle a maximum current of 30 mA (with the optional 'G' configuration) and operates within a power supply range of 12 Vdc or 250 Vac. The adjustable hysteresis feature (10%-30% of set-point) ensures precise switching behavior under varying pressure conditions.
The PSM10BGL24 - PSM...B - Pressure switch with SPDT contacts for panel mounting - PSM-PSP...CE is available in three body materials: brass, zinc-plated steel, and stainless steel AISI 316. The diaphragm type construction ensures high reliability and durability, with the switch designed to withstand high-pressure environments. The IP65 rating provides effective protection against dust and water, making it suitable for industrial applications where environmental exposure is a concern.
The PSM10BGL24 - PSM...B - Pressure switch with SPDT contacts for panel mounting - PSM...B - Pressure switch with SPDT contacts for panel mounting is an industrial Pressure. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Maximum voltage 250 Vac, 24 Vdc; 30 V with option “G” | Max. voltage 250 Vac, 24 Vdc; 30 V with “G” option |
| Current intensity 6 (2) A; 30 mA with option “G” | Current 6 (2) A; 30 mA with “G” option |
| temperature range -30°C...+140°C (in Function della membrana/Seal) | temperature range -30°C to +140°C (according to diaphragm/seal material) |
| Num. max. interventi a 25°C 120/1’ (membrana) | Max. cycle rate at 25°C 120/min. (diaphragm type) |
| Num. max. interventi a 25°C 60/1’ (piston) | Max. cycle rate at 25°C 60/min. (piston type) |
| PSM | 10 W V R1 8 T5D |
| Current maximum / Max. current | < 30 mA |
