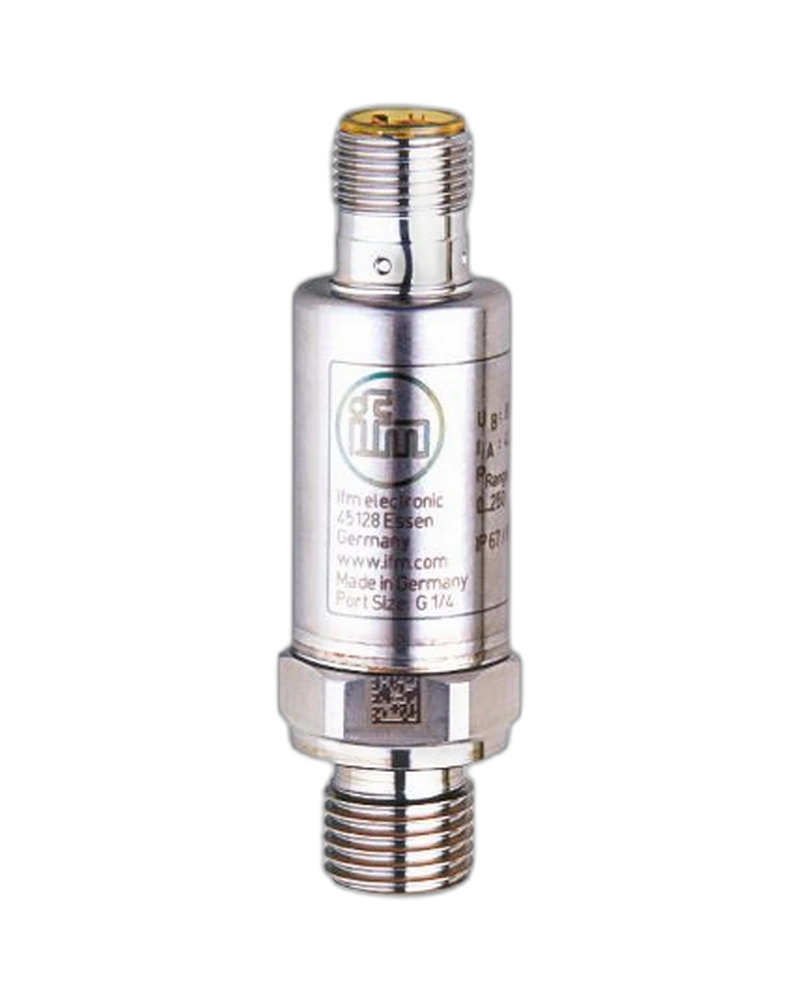

The IFM PT5404 is an electronic pressure transmitter designed for industrial measurement of liquids and gases. It measures relative pressure from 0 to 10 bar and provides a continuous 4…20 mA analogue output. Its stainless-steel pressure connection and compact cylindrical housing support reliable installation in industrial machinery. The transmitter operates from 8.5…36 V DC and provides fast analogue response. With IP67/IP69K protection and high pressure-cycle capability, the PT5404 is suitable for demanding pressure-monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PT5404 uses an electronic pressure measuring element for continuous pressure measurement. Its 0…10 bar range is suitable for many general industrial pressure applications. The transmitter is designed for both liquids and gases. A 4…20 mA output provides a standard signal for PLCs, controllers, and process instruments. This makes the sensor suitable for continuous pressure monitoring rather than simple switching.
The 4…20 mA output provides proportional transmission of the measured pressure. The maximum load depends on the supply voltage and reaches 720 Ω at 24 V DC. The analogue output has a step response time of approximately 1 ms. Short-circuit and overload protection improve electrical reliability. This makes the PT5404 suitable for fast pressure-control loops.
The PT5404 has a cylindrical Ø19 mm housing with a length of 66 mm. The process connection is G1/4 external thread according to DIN EN ISO 1179-2. Wetted parts are manufactured from high-grade stainless steel. The transmitter supports a 25 bar pressure rating and 300 bar burst pressure. IP67 and IP69K protection support operation in harsh industrial environments.
0…10 bar pressure range
Relative pressure measurement
4…20 mA analogue output
Fast 1 ms response
8.5…36 V DC supply
G1/4 external thread
Stainless-steel construction
25 bar pressure rating
300 bar burst pressure
IP67/IP69K protection
60 million pressure cycles
M12 connection
Short-circuit protection
Overload protection
High measurement stability
Hydraulic systems
Pneumatic systems
Pump monitoring
Process pressure measurement
Machine automation
Industrial equipment
Cooling circuits
Pressure-control systems
The PT5404 can be connected to standard analogue PLC inputs through its 4…20 mA signal. Its wide supply range allows integration into different industrial control architectures. The fast response supports dynamic pressure applications. The transmitter does not require a local display or switching configuration. This makes it a simple solution where continuous analogue pressure information is required.
Install the transmitter using the specified G1/4 process connection and appropriate sealing arrangement. Tighten the connection within the recommended torque range according to the installation conditions. Avoid exceeding the specified pressure and temperature limits. Inspect the process connection and M12 cable connection periodically. Verify the analogue signal during commissioning to confirm correct pressure transmission.
| Specification | Details |
|---|---|
| Model | PT5404 |
| Product type | Pressure transmitter |
| Order code | PT-010-SEG14-A-ZVG/US/ /W |
| Measuring principle | Electronic pressure measurement |
| Measuring range | 0…10 bar |
| Pressure type | Relative |
| Media | Liquids and gases |
| Process connection | G1/4 external thread |
| Connection standard | DIN EN ISO 1179-2 |
| Pressure rating | 25 bar |
| Minimum burst pressure | 300 bar |
| Vacuum resistance | -1000 mbar |
| Medium temperature | -40…90 °C |
| Operating voltage | 8.5…36 V DC |
| Current output | 4…20 mA |
| Number of analogue outputs | 1 |
| Maximum load | 720 Ω at 24 V |
| Power-on delay | <0.1 s |
| Analogue step response | 1 ms |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Protection class | III |
| Reverse polarity protection | Yes |
| Ambient temperature | -40…90 °C |
| Storage temperature | -40…100 °C |
| Protection rating | IP67 / IP69K |
| Housing | Cylindrical |
| Dimensions | Ø19 × 66 mm |
| Weight | 59 g |
| Wetted material | Stainless steel 630 / 1.4542 / 17-4 PH |
| Electrical connection | M12, 2-pin |
