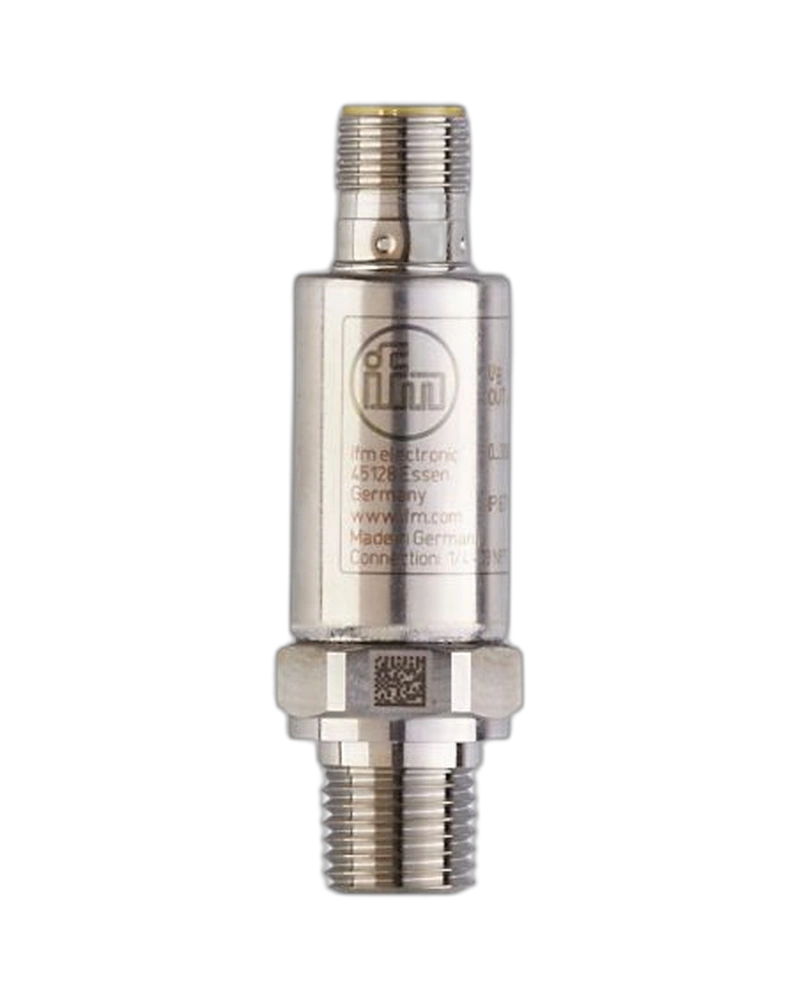

The IFM PT2415 is a compact pressure transmitter designed for continuous measurement of liquids and gases in industrial applications. It measures relative pressure from 0 to 100 psi, equivalent to approximately 6.9 bar. A standard 4…20 mA analogue output provides reliable pressure information to PLCs and process controllers. Its stainless-steel construction, 250 psi pressure rating, and 2900 psi minimum burst pressure provide robust operation. The compact 1/4-inch NPT process connection makes the PT2415 suitable for space-constrained industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PT2415 is designed for continuous pressure measurement rather than switching control. Its 0…100 psi measuring range covers many general industrial pressure applications. The transmitter provides a proportional 4…20 mA signal for straightforward connection to analogue control inputs. Repeatability is specified below ±0.05% of span under defined temperature conditions. This makes the sensor suitable for stable pressure monitoring and control.
The 4…20 mA output is a standard industrial signal that can be connected directly to compatible PLC and controller inputs. The maximum load is calculated from the supply voltage and reaches 720 Ω at 24 V DC. The analogue output has a 1 ms step response time. Short-circuit and overload protection improve electrical reliability. This combination supports fast and dependable pressure signal transmission.
The PT2415 uses a cylindrical housing measuring approximately Ø18.9 × 66.9 mm. Its process connection is a 1/4-inch NPT external thread. The wetted pressure connection is manufactured from stainless steel 17-4 PH/630. IP67 and IP69K protection provide resistance against industrial environmental conditions. The transmitter is rated for 60 million pressure cycles at 1.2 times nominal pressure.
0…100 psi measuring range
0…690 kPa measuring range
Relative pressure measurement
4…20 mA analogue output
1 ms analogue response
8.5…36 V DC supply
1/4-inch NPT external thread
250 psi pressure rating
2900 psi burst pressure
Stainless-steel construction
60 million pressure cycles
IP67/IP69K protection
M12 connector
Short-circuit protection
Overload protection
Hydraulic pressure monitoring
Pneumatic equipment
Pump systems
Industrial machinery
Process pressure measurement
Cooling systems
Pressure control systems
Machine automation
The PT2415 can be connected to standard analogue PLC inputs through its 4…20 mA output. Its wide 8.5…36 V DC supply range provides installation flexibility. The transmitter does not require a separate local display for remote pressure monitoring. Its fast analogue response is useful in dynamic pressure systems. This makes it a practical solution for simple continuous pressure measurement.
Install the transmitter through its 1/4-inch NPT external process connection using an appropriate sealing method. Ensure that the applied pressure remains within the specified operating range. The recommended tightening torque is below 50 Nm depending on lubrication, seal, and pressure conditions. Inspect the process connection and M12 connector during routine maintenance. Verify the 4…20 mA signal during commissioning.
| Specification | Details |
|---|---|
| Model | PT2415 |
| Product type | Pressure transmitter |
| Measuring principle | Electronic pressure measurement |
| Measuring range | 0…100 psi / 0…690 kPa |
| Pressure type | Relative |
| Media | Liquids and gases |
| Output | 4…20 mA |
| Number of analogue outputs | 1 |
| Supply voltage | 8.5…36 V DC |
| Minimum insulation resistance | 100 MΩ at 500 V DC |
| Protection class | III |
| Reverse polarity protection | Yes |
| Power-on delay | <0.1 s |
| Maximum output load | (Ub − 8.5 V) / 21.5 mA |
| Maximum load at 24 V | 720 Ω |
| Analogue step response | 1 ms |
| Repeatability | <±0.05% of span |
| Characteristic deviation | <±0.5% of span |
| Linearity deviation | <±0.1% BFSL / <±0.2% LS |
| Hysteresis deviation | <±0.2% |
| Long-term stability | <±0.1% per 6 months |
| Medium temperature | -40…90 °C |
| Ambient temperature | -40…90 °C |
| Storage temperature | -40…100 °C |
| Pressure rating | 250 psi / 1.7 MPa |
| Minimum burst pressure | 2900 psi / 20 MPa |
| Vacuum resistance | -14.5 psi / -0.1 MPa |
| Protection rating | IP67 / IP69K |
| Housing dimensions | Ø18.9 × 66.9 mm |
| Housing material | Stainless steel 630/1.4542/17-4 PH |
| Wetted material | Stainless steel 630/1.4542/17-4 PH |
| Minimum pressure cycles | 60 million |
| Process connection | 1/4-inch NPT external thread |
| Electrical connection | M12 A-coded |
