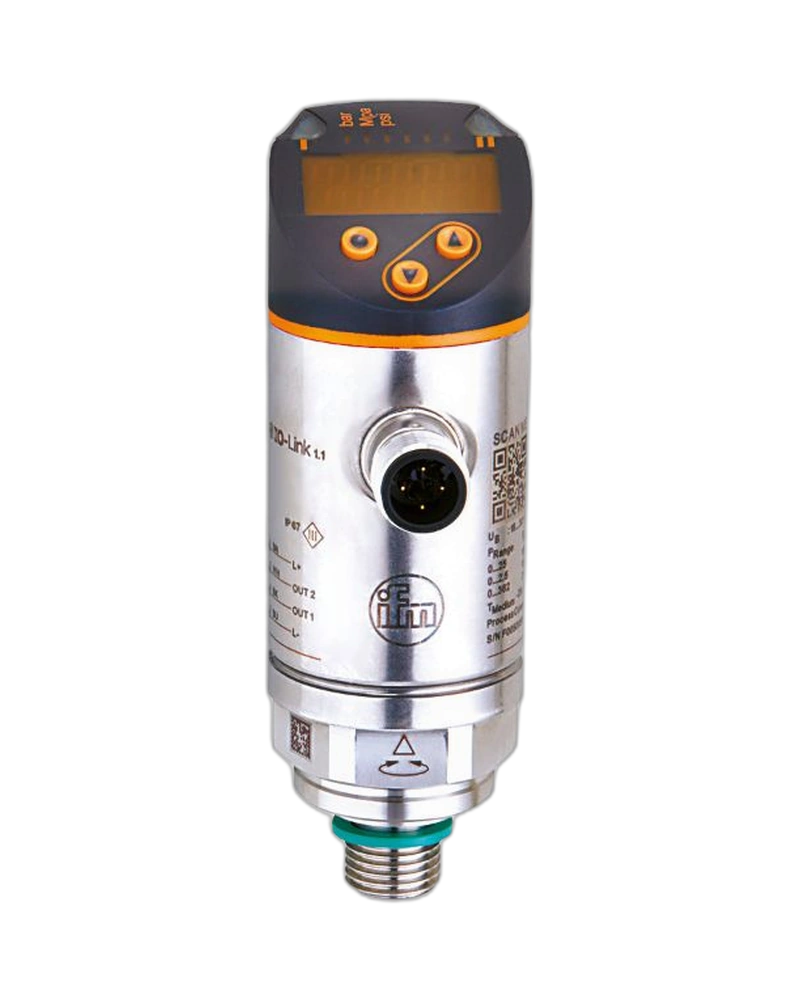

The IFM PN7572 is a high-pressure electronic sensor with an integrated 4-digit red/green display for industrial pressure monitoring. It measures relative pressure from 0 to 100 bar and is designed primarily for liquid applications. Two programmable switching outputs provide flexible pressure-control functions, while IO-Link enables digital parameterisation and diagnostics. Its metallic thin-film measuring cell, stainless-steel construction, and 300 bar pressure rating support demanding industrial applications. The 345° rotatable housing allows convenient alignment of the display after installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PN7572 provides a 0…100 bar pressure measuring range for high-pressure industrial systems. Its pressure rating is 300 bar with a minimum burst pressure of 1000 bar. Set points can be configured from 1 to 100 bar with 0.5 bar increments. The sensor also provides programmable hysteresis and window functions. This makes it suitable for pressure alarms, machine protection, and automated control.
The integrated red/green 4-digit display provides direct visibility of measured pressure. Three green LEDs identify the selected pressure unit, while two yellow LEDs indicate switching status. The upper housing can rotate 345° for improved display orientation. Programming can be performed using the integrated button. This provides convenient local configuration without requiring external equipment.
The PN7572 supports IO-Link 1.1 through COM2 at 38.4 kBaud. Both standard SIO operation and IO-Link communication are available. The minimum IO-Link process cycle time is 2.3 ms in the standard operating mode. High-resolution operating mode provides 0.05 bar IO-Link pressure resolution. Digital communication enables parameterisation, diagnostics, and process-data access.
0…100 bar measuring range
Relative pressure measurement
Metallic thin-film measuring cell
4-digit red/green display
Two digital switching outputs
PNP/NPN electrical design
NO/NC configurable
IO-Link 1.1
COM2 38.4 kBaud
0.05 bar high-resolution IO-Link mode
300 bar pressure rating
1000 bar burst pressure
345° rotatable housing
G1/4 external thread
M5 internal thread
IP65/IP67 protection
Hydraulic systems
High-pressure liquid monitoring
Industrial machinery
Pump systems
Pressure alarms
Machine tools
Process equipment
Automation systems
The two switching outputs allow the PN7572 to monitor separate pressure thresholds. Hysteresis or window switching can be selected according to the application. Switch-on and switch-off delays can also be configured. This provides flexibility for pressure alarms and automated machine protection. The response time is below 3 ms.
Install the PN7572 through its G1/4 external process connection. Use the recommended 25…35 Nm tightening torque depending on sealing and installation conditions. The sensor housing can be rotated 345° for convenient display positioning. Ensure that pressure remains within the specified rating during operation. Inspect the process connection and M12 connector periodically.
| Specification | Details |
|---|---|
| Model | PN7572 |
| Product type | Pressure sensor with display |
| Order code | PN-100-SEG14-QFRKG/US/V |
| Measuring principle | Metallic thin-film cell |
| Measuring range | 0…100 bar |
| Pressure type | Relative |
| Primary medium | Liquids |
| Medium temperature | -25…80 °C |
| Pressure rating | 300 bar |
| Minimum burst pressure | 1000 bar |
| Supply voltage | 18…30 V DC |
| Current consumption | <35 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Power-on delay | 0.3 s |
| Number of outputs | 2 |
| Output signal | Switching / IO-Link |
| Electrical design | PNP/NPN |
| Switching function | NO/NC configurable |
| Voltage drop | 2.5 V |
| Continuous output current | 150 mA |
| Maximum current at ≤60 °C | 200 mA |
| Maximum current at ≤40 °C | 250 mA |
| Switching frequency | <170 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Response time | <3 ms |
| Programmable delay | 0…50 s |
| IO-Link revision | 1.1 |
| IO-Link transmission | COM2, 38.4 kBaud |
| IO-Link cycle time | 2.3 ms |
| Ambient temperature | -25…80 °C |
| Storage temperature | -40…100 °C |
| Protection rating | IP65/IP67 |
| Housing material | Stainless steel 17-4 PH/316L |
| Process connection | G1/4 external thread |
| Electrical connection | M12, gold-plated |
| Display | 4-digit red/green |
