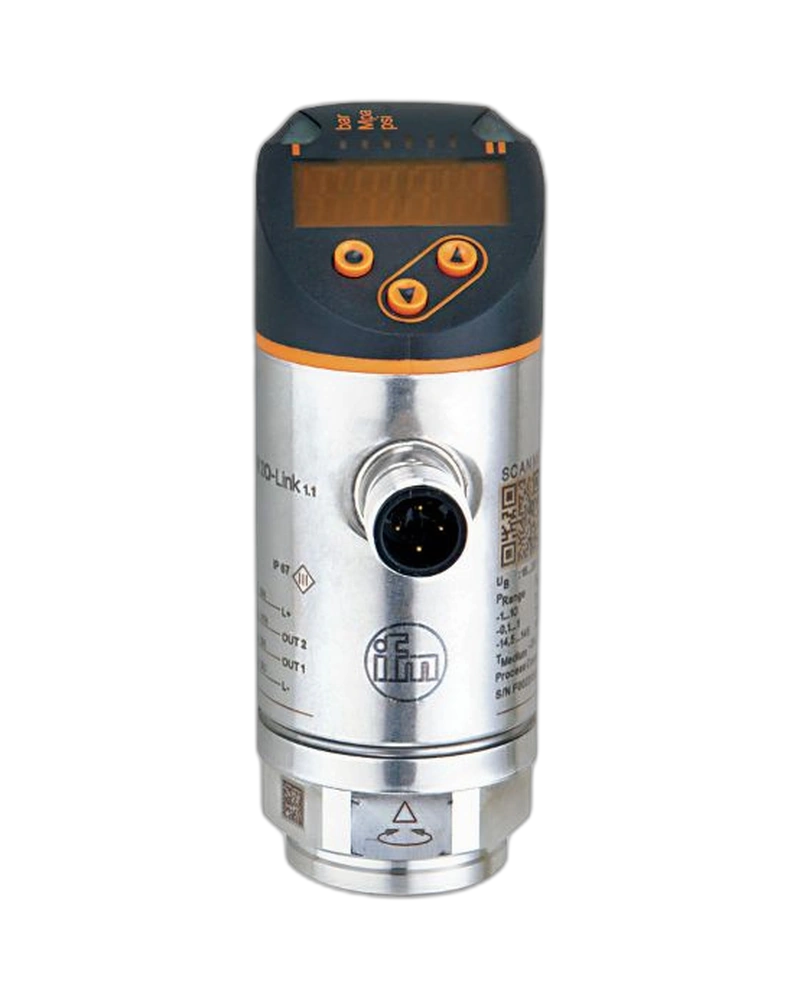

The IFM PN7092 is a high-pressure electronic sensor with an integrated 4-digit display for industrial liquid-pressure monitoring. It provides a measuring range of 0…100 bar and a pressure rating of 300 bar. Two programmable digital outputs provide configurable pressure-switching functions, while IO-Link supports digital parameterisation and diagnostics. The ceramic-capacitive pressure cell provides reliable measurement with high overload capability. Its stainless-steel housing, G1/4 internal thread, and IP65/IP67 protection make it suitable for demanding hydraulic and industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PN7092 measures pressure from 0 to 100 bar. It is primarily intended for liquid applications, with use in gases above 25 bar available only under specified conditions. The sensor has a 300 bar pressure rating and a minimum burst pressure of 650 bar. This high pressure capability makes it suitable for hydraulic systems and industrial pressure circuits. The ceramic-capacitive measuring cell provides stable measurement performance.
The PN7092 provides two digital switching outputs. PNP/NPN configuration and NO/NC parameterisation provide flexibility for different control systems. The outputs support up to 150 mA continuously, with higher current capability at reduced temperatures. Short-circuit and overload protection are included. This allows direct integration into PLC-based pressure-control systems.
The PN7092 supports IO-Link 1.1 using COM2 at 38.4 kBaud. Standard operation provides 0.1 bar IO-Link pressure resolution. The high-resolution operating mode provides 0.05 bar resolution. Device identification, process data, and diagnostic functions are available through IO-Link. The minimum process cycle time is 2.3 ms in the standard configuration.
0…100 bar measuring range
High-pressure measurement
4-digit red/green display
Ceramic-capacitive cell
Two digital outputs
PNP/NPN
NO/NC configurable
IO-Link 1.1
COM2 38.4 kBaud
300 bar pressure rating
650 bar burst pressure
G1/4 internal thread
M12 connector
IP65/IP67
345° rotatable display housing
Hydraulic systems
Industrial pumps
Pressure control systems
Hydraulic machinery
Machine tools
Process equipment
Industrial automation
Liquid pressure monitoring
The PN7092 is constructed with stainless-steel 316L housing and ceramic wetted components. It supports 100 million minimum pressure cycles. Shock resistance is rated at 50 g for 11 ms, while vibration resistance is specified up to 20 g from 10…2000 Hz. The cylindrical housing measures Ø34 × 90.7 mm. This construction is suited to demanding industrial machinery.
The sensor uses a G1/4 internal process connection and should be installed using the correct sealing and tightening procedure. The display housing can rotate 345° for convenient viewing. Ensure the pressure range remains within the specified operating limits. IO-Link can be used to verify pressure values and sensor status during commissioning. Regular inspection of the process connection and M12 connector is recommended.
| Specification | Details |
|---|---|
| Model | PN7092 |
| Product type | Pressure sensor with display |
| Order code | PN-100-SER14-QFRKG/US/ /V |
| Measuring principle | Ceramic-capacitive |
| Measuring range | 0…100 bar |
| Pressure type | Relative pressure |
| Primary medium | Liquids |
| Gas application | >25 bar on request |
| Process connection | G1/4 internal thread |
| Pressure rating | 300 bar |
| Minimum burst pressure | 650 bar |
| Vacuum resistance | -1000 mbar |
| Medium temperature | -25…80 °C |
| Operating voltage | 18…30 V DC |
| Current consumption | <35 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Digital outputs | 2 |
| Output signal | Switching / IO-Link |
| Electrical design | PNP/NPN |
| Switching function | NO/NC configurable |
| Output current | 150 mA |
| Output current at ≤60 °C | 200 mA |
| Output current at ≤40 °C | 250 mA |
| Switching frequency | <170 Hz |
| Voltage drop | 2.5 V |
| Short-circuit protection | Yes, pulsed |
| Overload protection | Yes |
| IO-Link revision | 1.1 |
| IO-Link transmission | COM2, 38.4 kBaud |
| Standard IO-Link resolution | 0.1 bar |
| High-resolution IO-Link | 0.05 bar |
| Minimum process cycle | 2.3 ms |
| Ambient temperature | -25…80 °C |
| Protection rating | IP65 / IP67 |
| Housing material | Stainless steel 316L |
| Wetted materials | Stainless steel 316L, ceramic, FKM |
| Dimensions | Ø34 × 90.7 mm |
| Weight | 272 g |
| Electrical connection | M12, 4-pin, gold-plated |
| Display | 4-digit red/green alphanumeric |
