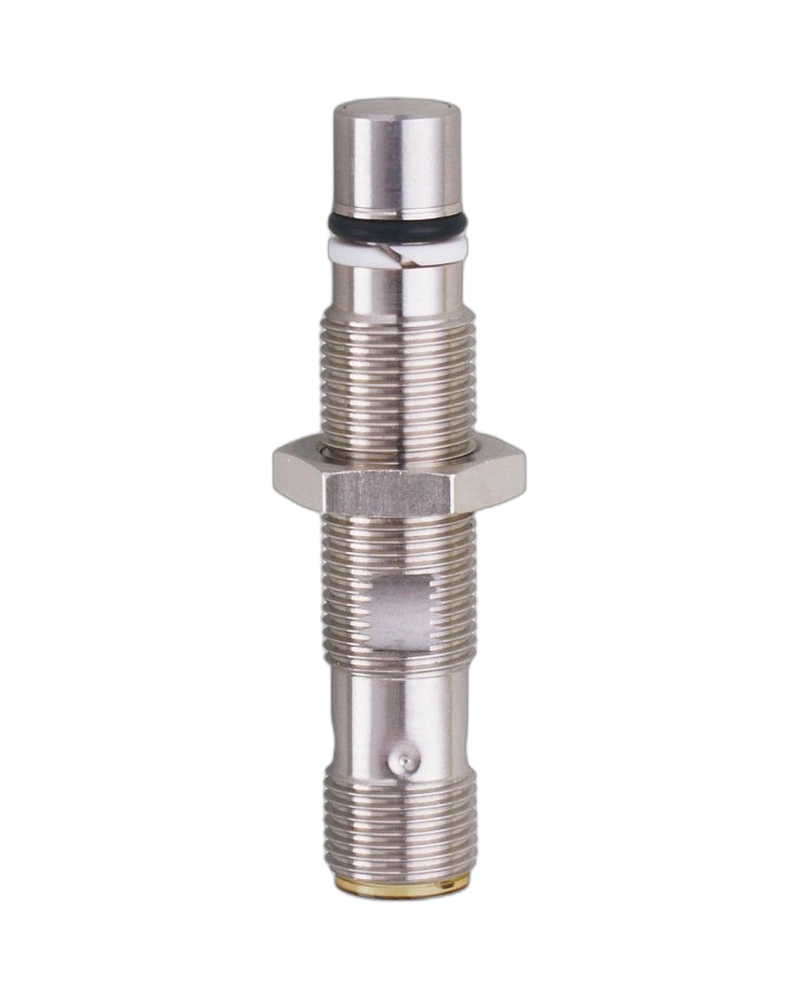

The IFM MFH202 is a pressure-resistant magnetic position sensor developed specifically for hydraulic cylinders. It detects ferrous-metal targets with a 1.8 mm sensing range and operates reliably under hydraulic pressures up to 500 bar. The sensor provides a PNP normally-open output with a switching capacity of 200 mA and a frequency of up to 1000 Hz. Its full-metal stainless-steel construction supports demanding hydraulic applications. IP65, IP66, IP68 and IP69K protection provide strong environmental resistance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MFH202 detects ferrous metals for reliable position monitoring inside hydraulic-cylinder applications. Its 1.8 mm sensing range provides a defined switching point for piston-position detection. The sensor operates without mechanical contact between the sensing element and moving hydraulic components. A PNP normally-open output provides a direct digital position signal. This makes the sensor suitable for automated hydraulic control and feedback systems.
The MFH202 has a continuous pressure rating of 500 bar and a minimum burst pressure of 2000 bar. Its pressure peak rating is 1000 bar. The stainless-steel full-metal housing provides mechanical strength for direct hydraulic-cylinder installation. FKM sealing and a PTFE supporting ring protect the sensing assembly. These characteristics make the sensor suitable for demanding hydraulic machinery.
The sensor operates from 10–36 V DC with current consumption below 23 mA. Its PNP output has a maximum voltage drop of 1.6 V and supports 200 mA continuous current. Switching frequency reaches 1000 Hz for fast piston-position monitoring. Short-circuit and overload protection are integrated into the sensor. Reverse-polarity protection improves wiring reliability.
1.8 mm sensing range
PNP normally-open output
500 bar pressure rating
2000 bar minimum burst pressure
1000 bar pressure peak
10–36 V DC supply
200 mA switching current
1000 Hz switching frequency
Full-metal stainless-steel housing
M12 × 1 threaded body
M12 A-coded connector
IP65/IP66/IP68/IP69K protection
Short-circuit protection
Overload protection
Reverse-polarity protection
Hydraulic cylinder position detection
Mobile hydraulic equipment
Industrial hydraulic systems
Hydraulic presses
Construction machinery
Agricultural machinery
Material-handling equipment
Hydraulic actuator monitoring
The MFH202 has an M12 × 1 threaded body with a 60 mm overall length. The sensor is flush mountable and supplied with one M12 lock nut. Its stainless-steel housing provides high mechanical durability. The tightening torque is specified below 15 Nm. The compact form factor enables installation directly on hydraulic-cylinder assemblies.
The MFH202 operates over an ambient temperature range of -25 to 120 °C. It provides IP65, IP66, IP68 and IP69K protection. The sensor is tested for severe vibration and shock conditions, including 20 g vibration and 100 g shock testing. Its MTTF is specified at 658 years. These characteristics support long-term operation in demanding hydraulic environments.
| Specification | MFH202 |
|---|---|
| Product type | Pressure-resistant position sensor |
| Product code | MFB3002BBPKG/B/AM/500/US |
| Application | Hydraulic cylinders |
| Detection principle | Magnetic |
| Target material | Ferrous metal |
| Electrical design | PNP |
| Output function | Normally open |
| Sensing range | 1.8 mm |
| Operating voltage | 10–36 V DC |
| Current consumption | <23 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Voltage drop | 1.6 V |
| Leakage current | 0.1 mA |
| Continuous current | 200 mA |
| Switching frequency | 1000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Short-circuit type | Pulsed |
| Hysteresis | <15% of Sr |
| Switch-point drift | 10% of Sr |
| Repeatability | 10% of Sr |
| Pressure rating | 500 bar |
| Minimum burst pressure | 2000 bar |
| Pressure peak | 1000 bar |
| Ambient temperature | -25…120 °C |
| Protection rating | IP65/IP66/IP68/IP69K |
| Housing material | Stainless steel |
| Housing dimensions | M12 × 1 / L60 mm |
| Connection | M12 A-coded, 4-contact |
