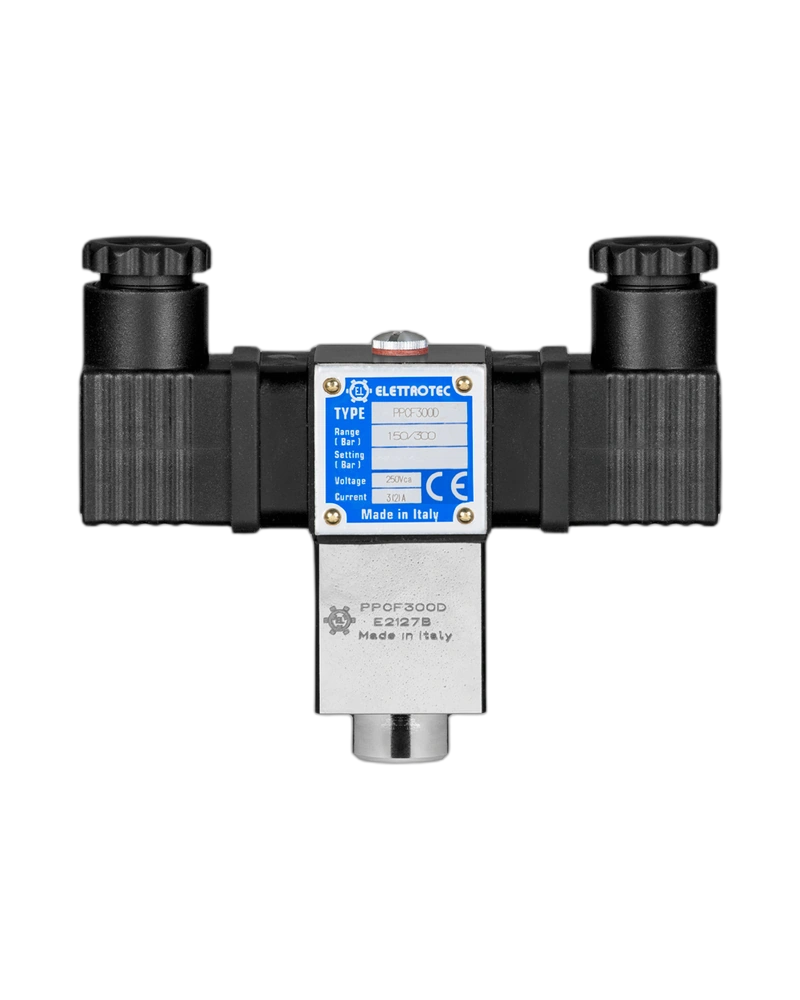

The ELETTROTEC PPCF300FNF14HSG - PPCF - Pressure switch with one or two SPDT contacts - PPCF - Pressure switch with one or two SPDT contacts is a precision pressure switch with one or two SPDT contacts designed for industrial applications. Featuring a stainless steel AISI 316 body, it operates within 30–150 bar (adjustable) or 150–300 bar ranges, with a max static pressure rating of 600 bar. This robust switch supports 250 VAC/24 VDC power and 3 A (resistive) current ratings, making it ideal for high-pressure systems requiring reliable contact switching.
The ELETTROTEC PPCF300FNF14HSG - PPCF - Pressure switch with one or two SPDT contacts - PPCF - Pressure switch with one or two SPDT contacts is a high-performance pressure switch engineered for demanding industrial environments. Constructed from stainless steel AISI 316, this model delivers precise pressure monitoring and switching capabilities across a wide operational range, from 30 to 150 bar (adjustable) or 150 to 300 bar, with a maximum static pressure rating of 600 bar. Its robust construction and reliable performance ensure seamless integration into critical pressure control systems where accuracy and durability are paramount.
The PPCF150DFNF14SGM12 features a body dimension of 30 x 30 mm (max. height 92 mm), with a 1/4 BSPT female connection. It operates within 30–150 bar (adjustable) or 150–300 bar ranges, supporting 250 VAC/24 VDC power supplies and 3 A (resistive) current ratings. The switch includes a max static pressure rating of 600 bar and a max fixed hysteresis of 30% of set-point (or 10% F.S.) at 25°C.
This pressure switch functions reliably under industrial conditions with a working voltage of 220 VAC. It accommodates both resistive and inductive loads, with current ratings of 3 A (resistive) and 2 A (inductive). The switch maintains precise operation within a temperature range where hysteresis is specified at 25°C.
The PPCF300FNF14HSG - PPCF - Pressure switch with one or two SPDT contacts is manufactured from AVP steel (AISI 316 stainless steel), ensuring high corrosion resistance and mechanical strength. The 1/4 BSPT female connection provides secure attachment for fluid systems, while the robust design supports high-pressure environments without compromising integrity.
The PPCF300FNF14HSG - PPCF - Pressure switch with one or two SPDT contacts - PPCF - Pressure switch with one or two SPDT contacts is an industrial Pressure. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Dimensions | Body 30 x 30 – Max. high92 mm |
| Body material | AVP steel – Stainless steel AISI 316 |
| Switch rating | 250 Vac, 24 Vdc; 30 V with “G” option / 3 (2) A |
| Adjustment range | 30 – 150 bar – 150 – 300 bar |
| Max. static pressure | 600 bar |
| Maximum voltage 250 Vac, 24 Vdc; 30 V with option “G” | Max. voltage 250 Vac, 24 Vdc; 30 V with “G” option |
| Working voltage 220 Vac | Working voltage 220 Vac |
| Current intensity 3 A (resistive), 2 A (inductive) | Current 3 A (resistive), 2 A (inductive) |
| Fixed differential max. 25°C 30% of the set-point value di set-point (o 10% F.S.) | Max. fixed hysteresis at 25°C 30% of set-point (or 10% F.S.) |
| 14K F14 | G 1/4 BSPT male / for G 1/4 BSPP with withnection female / Female connection (only PPCF/PPCF...D PPCF/PPCF...D only) |
| PPC150 | 30 - 150 46 12 G 1/4 BSPT 78 ± 7.0 600 piston in steel Steel piston |
