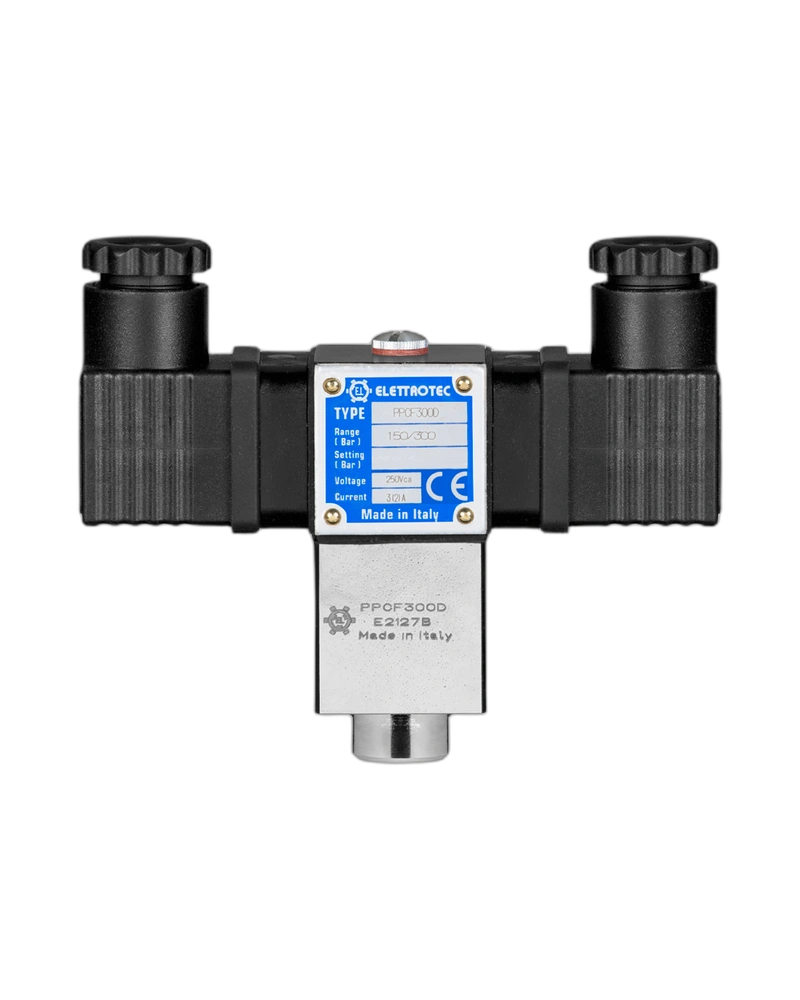

The ELETTROTEC PPCF150DFVF14L24- PPCF - Pressure switch with one or two SPDT contacts- PPCF pressure switch features one or two SPDT contacts for precise pressure monitoring. With a working voltage of 220 Vac, 3 A (resistive) current capacity, and a max static pressure of 600 bar, this industrial pressure switch ensures reliable operation in demanding environments. Its IP 65 protection and 1/4 BSPP female connection make it ideal for high-pressure applications requiring robust performance.
The ELETTROTEC PPCF150DFVF14L24- PPCF - Pressure switch with one or two SPDT contacts- PPCF pressure switch is a high-performance industrial device designed for precise pressure monitoring and control in demanding applications. This pressure switch with one or two SPDT contacts operates within a 30-150 bar range, delivering reliable performance under high static pressure conditions up to 600 bar. Its robust construction, featuring a steel piston and IP 65 protection, ensures durability and long service life in harsh industrial environments where pressure stability and precise switching are critical.
The PPCF150DFVF14L24- PPCF pressure switch operates within a 30-150 bar adjustment range. It features a steel piston, 1/4 BSPP female connection, and a max static pressure rating of 600 bar. The PPCF150DFVF14L24- PPCF - Pressure switch with one or two SPDT contacts is designed for 220 Vac working voltage, with a current capacity of 3 A (resistive) and 2 A (inductive). Its IP 65 protection ensures resistance to dust and water ingress, making it suitable for outdoor and harsh industrial environments. The switch includes a max. fixed hysteresis of 30% of set-point (or 10% F.S.) at 25°C and a max. current draw of 30 mA.
This pressure switch functions optimally at 25°C with a max. fixed hysteresis of 30% of set-point (or 10% F.S.). It supports a working voltage of 220 Vac and is rated for 3 A (resistive) current loads. The PPCF150DFVF14L24- PPCF - Pressure switch with one or two SPDT contacts is designed for high-pressure applications with a max. static pressure of 600 bar, ensuring reliable performance in demanding industrial settings.
The PPCF150DFVF14L24- PPCF features a 1/4 BSPP female connection for secure attachment to pressure systems. Its IP 65 rating allows for installation in environments with dust and water exposure, while the steel piston construction ensures long-term durability under high-pressure conditions.
The ELETTROTEC PPCF150DFVF14L24- PPCF - Pressure switch with one or two SPDT contacts- PPCF - Pressure switch with one or two SPDT contacts is an industrial Pressure. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Maximum voltage 250 Vac, 24 Vdc; 30 V with option “G” | Max. voltage 250 Vac, 24 Vdc; 30 V with “G” option |
| Working voltage 220 Vac | Working voltage 220 Vac |
| Current intensity 3 A (resistive), 2 A (inductive) | Current 3 A (resistive), 2 A (inductive) |
| Fixed differential max. 25°C 30% of the set-point value di set-point (o 10% F.S.) | Max. fixed hysteresis at 25°C 30% of set-point (or 10% F.S.) |
| 18K 14K | G 1/8 BSPT male / for G 1/4 BSPT male / for |
| Current maximum / Max. current | < 30 mA |
| 14K F14 | G 1/4 BSPT male / for G 1/4 BSPP with withnection female / Female connection (only PPCF/PPCF...D PPCF/PPCF...D only) |
| PPC150 | 30 - 150 46 12 G 1/4 BSPT 78 ± 7.0 600 piston in steel Steel piston |
| PPCF150 | 30 - 150 72 12 G 1/4 BSPP female female 92 ± 7.0 600 piston in steel Steel piston |
