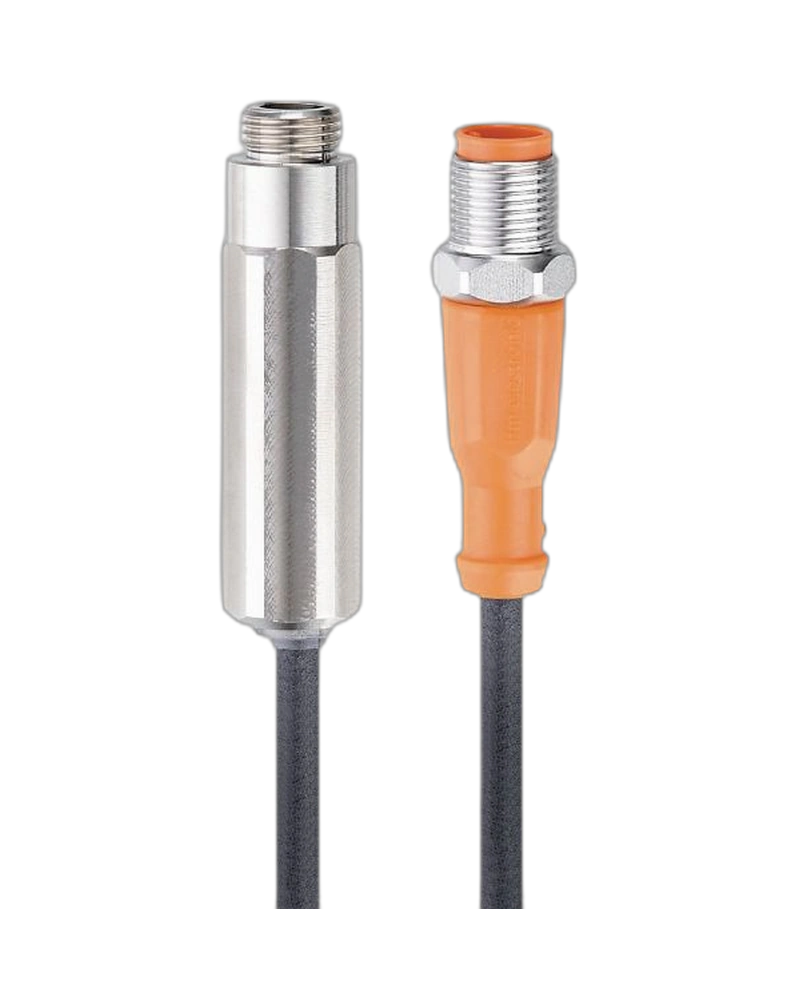

The IFM M9H215 is a magnetic position sensor designed for plunger detection in lubricant-distribution systems. It uses a PNP/NPN normally open output and a 2 mm sensing range. The sensor operates from 10...36 V DC and switches at 10 Hz. Its stainless-steel 316L housing supports pressure ratings up to 350 bar. A 0.5 m PUR cable and M12 connector provide compact electrical installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The M9H215 detects ferrous-metal movement using magnetic sensing. Its actual sensing range is 2 ±10%. The operating distance is 0...1.62 mm. A normally open PNP/NPN output provides flexible switching. This makes the sensor suitable for plunger and actuator monitoring.
The sensor uses stainless-steel 316L for both the active face and housing. Its pressure rating reaches 35 MPa or 350 bar. The M11 × 1 process connection provides direct mechanical installation. A tightening torque below 18 Nm is specified. These characteristics support demanding pressure applications.
The sensor operates from 10...36 V DC. Its output can switch 100 mA continuously at 10 Hz. Short-circuit and overload protection are included. IP65/IP67 protection supports industrial environmental conditions. The sensor is designed for temperatures from -40...85 °C under specified cable conditions.
2 mm sensing range
PNP/NPN output
Normally open
10...36 V DC
100 mA output
10 Hz switching frequency
Stainless steel 316L
M11 × 1 process connection
56.5 mm length
350 bar pressure rating
0.5 m PUR cable
M12 connector
IP65/IP67
Yellow LED
Short-circuit protection
Lubricant distributors
Plunger detection
Pressure systems
Hydraulic machinery
Mobile equipment
Actuator monitoring
Position sensing
Industrial automation
Machine equipment
Process machinery
The M9H215 is suited to compact installations where both magnetic detection and pressure resistance are required. Its 2 mm sensing range provides controlled position detection. The stainless-steel body supports demanding mechanical conditions. The PNP/NPN design provides output flexibility. This makes the sensor suitable for specialized machine-position applications.
| Specification | M9H215 |
|---|---|
| Product Type | Magnetic position sensor |
| Model | M9H215 |
| Order Code | M9B2002-ARKG/B/AM/0,5M/ZH/US |
| Electrical Design | PNP/NPN |
| Output Function | Normally open |
| Sensing Principle | Magnetic |
| Target | Ferrous metal |
| Sensing Range | 2 ±10% mm |
| Operating Distance | 0...1.62 mm |
| Supply Voltage | 10...36 V DC |
| Rated Insulation Voltage | 60 V |
| Protection Class | III |
| Reverse Polarity | Yes |
| Power-on Delay | 300 ms |
| Voltage Drop | 5.9 V |
| Minimum Load Current | 5 mA |
| Leakage Current | 0.8 mA |
| Output Current | 100 mA |
| Switching Frequency | 10 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Hysteresis | 3...15% |
| Ambient Temperature | -40...85 °C |
| Protection | IP65/IP67 |
| Housing | Cylindrical |
| Housing Material | Stainless steel 316L |
| Dimensions | Ø13.8 / L=56.5 mm |
| Process Connection | M11 × 1 |
| Cable | 0.5 m PUR |
| Connector | M12 A-coded |
| Pressure Rating | 35 MPa / 350 bar |
