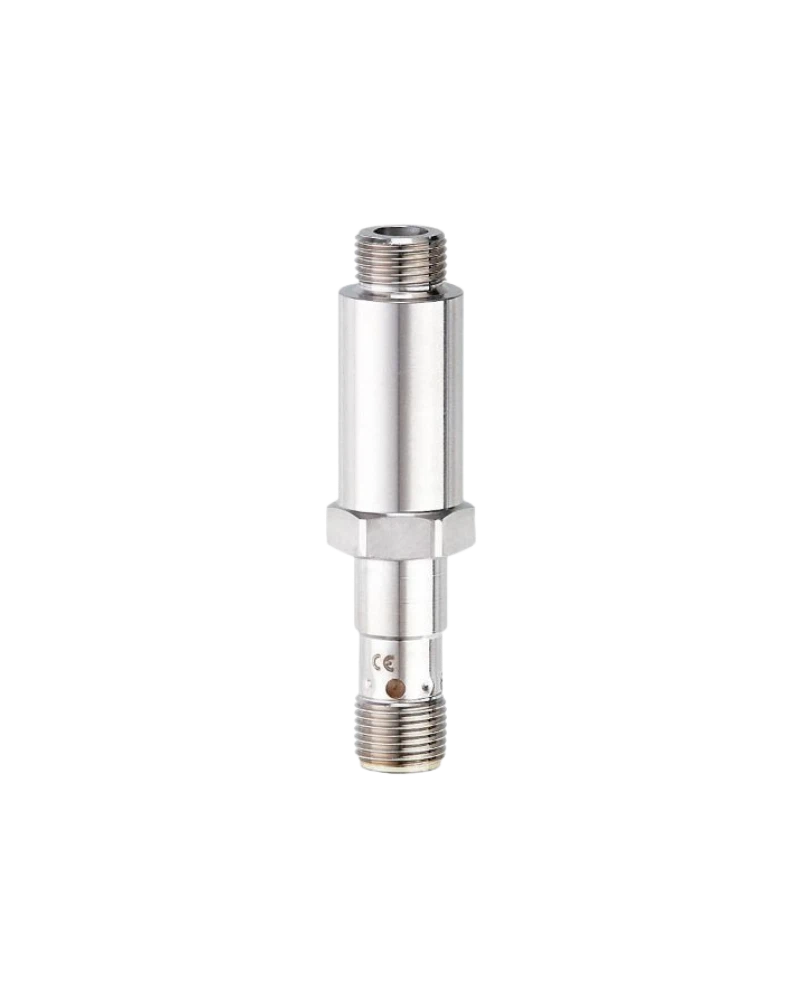

The IFM M9H210 is a compact magnetic position sensor designed for plunger detection. It uses a PNP/NPN normally open switching output and operates from 10...36 V DC. The sensor has a 2 mm actual sensing range and 10 Hz switching frequency. Its stainless-steel 316L housing is pressure-resistant up to 350 bar. The M12 × 1 housing and M12 connector provide compact installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The M9H210 detects ferrous-metal movement using magnetic sensing. Its actual sensing range is 2 ±10%. The operating distance is 0...1.62 mm. The PNP/NPN output provides normally open switching. This configuration supports flexible controller integration.
The sensor is designed for lubricant-distributor plunger detection. Its pressure rating is 35 MPa or 350 bar. Stainless-steel 316L construction provides mechanical durability. The M12 × 1 body supports direct installation. This makes the sensor appropriate for demanding pressure applications.
The M9H210 operates from 10...36 V DC. Its maximum output current is 100 mA. The switching frequency is 10 Hz. Short-circuit and overload protection are integrated. These functions support reliable machine-position feedback.
2 mm sensing range
PNP/NPN output
Normally open
10...36 V DC
100 mA output
10 Hz switching frequency
Stainless-steel 316L
M12 × 1 housing
68.5 mm length
350 bar pressure rating
M12 connector
Gold-plated contacts
IP65/IP67
Yellow LED
Short-circuit protection
Plunger detection
Lubricant distributors
Pressure systems
Hydraulic equipment
Mobile machinery
Machine automation
Position monitoring
Actuator sensing
Industrial machinery
Process equipment
The M9H210 provides non-contact magnetic position detection. Its stainless-steel body supports harsh mechanical conditions. The pressure rating allows use in lubricant-distribution equipment. The PNP/NPN output provides flexible controller compatibility. This makes it suitable for compact machine-position applications.
| Specification | M9H210 |
|---|---|
| Product Type | Magnetic position sensor |
| Model | M9H210 |
| Order Code | M9B2002-ARKG/B/AM/US |
| Electrical Design | PNP/NPN |
| Output Function | Normally open |
| Sensing Principle | Magnetic |
| Target | Ferrous metal |
| Sensing Range | 2 ±10% mm |
| Operating Distance | 0...1.62 mm |
| Supply Voltage | 10...36 V DC |
| Rated Insulation Voltage | 60 V |
| Protection Class | III |
| Reverse Polarity | Yes |
| Power-on Delay | 300 ms |
| Voltage Drop | 5.9 V |
| Minimum Load Current | 5 mA |
| Leakage Current | 0.8 mA |
| Output Current | 100 mA |
| Switching Frequency | 10 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Hysteresis | 3...15% |
| Ambient Temperature | -25...85 °C |
| Protection | IP65/IP67 |
| Housing | Cylindrical |
| Housing Material | Stainless steel 316L |
| Dimensions | M12 × 1 / L=68.5 mm |
| Process Connection | M12 × 1 |
| Connector | M12 A-coded |
| Contacts | Gold-plated |
| Pressure Rating | 35 MPa / 350 bar |
