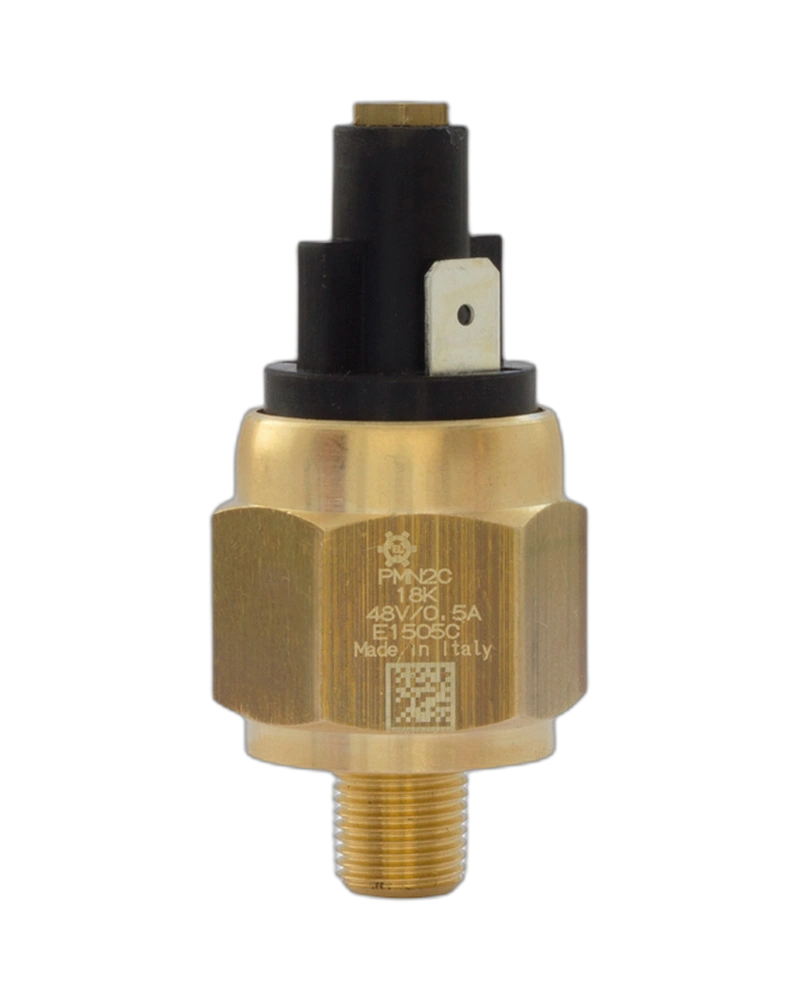

The ELETTROTEC PMN10ABN18K - PMN - Adjustable pressure switches with push-on terminal - PMN - Adjustable pressure switches with push-on terminal - PMN - Adjustable pressure switches with push-on terminal is an industrial Pressure intended for professional equipment and system applications, with product-specific technical characteristics available for selection and integration. Key characteristics include Body material: Brass – zinc plated steel – AISI 316; Dimensions: Body Ch 24 – Max. high 49; Switch rating: 0.5 (0.2) A / 48 Vac-dc.

Product Overview

The PMN10ABN18K - PMN - Adjustable pressure switches with push-on terminal - PMN - Adjustable pressure switches with push-on terminal is a Pressure intended for professional industrial applications.

Technical Characteristics

Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.

Key Features

• Body material of Brass – zinc plated steel – AISI 316 for durable industrial use.
• Dimensions of Body Ch 24 – Max. high 49 for installation and space planning.
• Switch rating of 0.5 (0.2) A / 48 Vac-dc for application-specific selection and integration.
• Adjustment range of 0.1 – 1 bar – 0.15 – 2 bar – 2 – 10 bar – 10 – 20 bar – 20 – 50 bar – 50 – 80 bar – 50 – 150 bar – 100 – 250 bar – 50 – 300 bar for application-specific selection and integration.
• Max. static pressure of 300 bar, 600 bar (according to possible pressure range and body material) for application-specific selection and integration.
• Electrical connection of Faston 6.3 x 0.8 DIN 46248 for straightforward system integration.
• Temperature tange of -40 °C +140 °C (according to diaphragm/seal material required) for application-specific selection and integration.
• Threads of G1/8 BSPT – G1/4 BSPT – M10 x 1 – ecc. for straightforward system integration.

Applications

The PMN10ABN18K - PMN - Adjustable pressure switches with push-on terminal - PMN - Adjustable pressure switches with push-on terminal can be considered for industrial systems and equipment requiring a Pressure. Final suitability should be evaluated against the complete system requirements.

Selection Considerations

Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.

Product Summary

The PMN10ABN18K - PMN - Adjustable pressure switches with push-on terminal - PMN - Adjustable pressure switches with push-on terminal is an industrial Pressure. Selection should be based on the documented characteristics and the requirements of the intended application.
