Explore performance details, construction highlights, applications, and technical information in one clear overview.

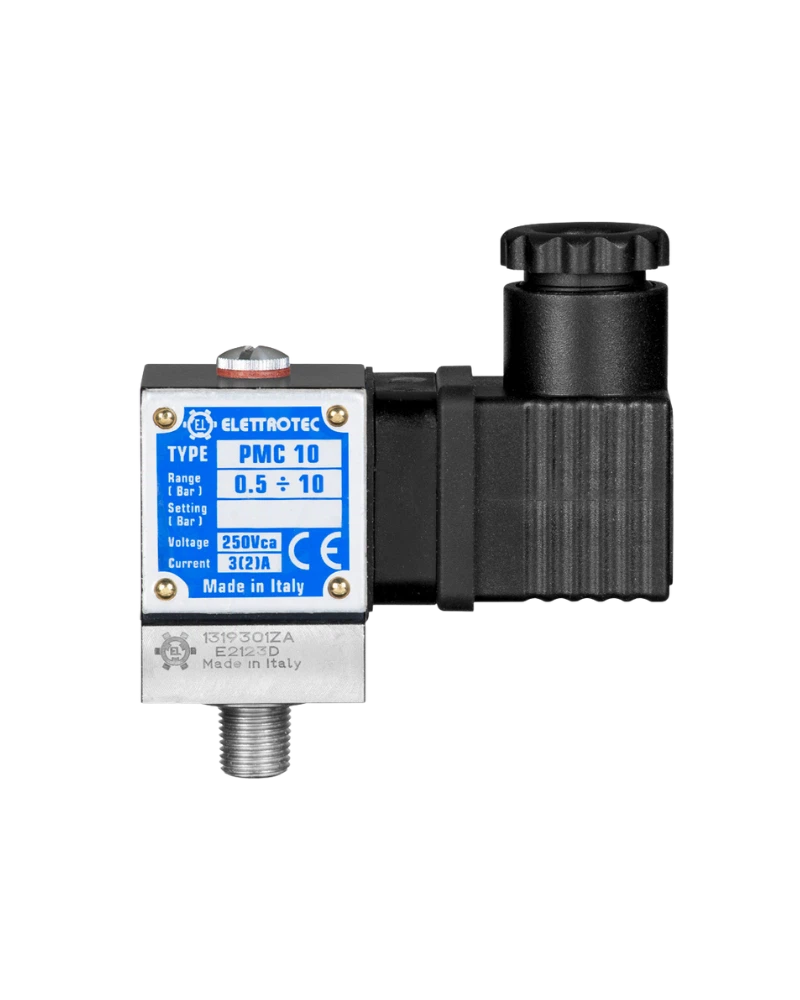

The ELETTROTEC PMC10DFE14KHTGSGSM- Pressure switch with SPDT contacts- Pressure switch with SPDT contacts is an industrial Pressure intended for professional equipment and system applications, with product-specific technical characteristics available for selection and integration. Key characteristics include Dimensions: Body 30 x 30 mm – Max. high 75 mm; Input voltage: Vi 30 V; Corriente de alimentacion / Power supply: 12 Vac/dc .
The PMC10DFE14KHTGSGSM- Pressure switch with SPDT contacts is a Pressure intended for professional industrial applications.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
The PMC10DFE14KHTGSGSM- Pressure switch with SPDT contacts can be considered for industrial systems and equipment requiring a Pressure. Final suitability should be evaluated against the complete system requirements.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
The ELETTROTEC PMC10DFE14KHTGSGSM- Pressure switch with SPDT contacts- Pressure switch with SPDT contacts is an industrial Pressure. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Dimensions | Body 30 x 30 mm – Max. high 75 mm |
| Input voltage | Vi 30 V |
| Input current | Li 100mA |
| temperature range | -30 °C +140 °C (according to diaphragm/seal material) |
| Current máx. 250 Vac, 24 Vdc; 30 V with opción “G” | Max. voltage 250 Vac, 24 Vdc; 30 V with “G” option |
| Voltaje de trabajo 220 Vac | Working voltage 220 Vac |
| Intensidad de Current 3 A (resistivos), 2 A (inductivos) | Current 3 A (resistive), 2 A (inductive) |
| Histéresis fija máx. 25°C 30% del valor calibrado (o 10% F.S.) | Max. fixed hysteresis at 25°C 30% of set-point (or 10% F.S.) |
| MODELO MODEL | CAMPO DE REGULACION ADJUSTMENT RANGE bar sizeS DIMENSIONS mm PRECISION 25°C TOLERANCE AT 25°C bar MÁX. Pressure SOPORTADA MAX. STATIC PRESSURE bar EJECUCIÓN EXECUTION |
| PPC150 | 30 - 150 46 12 G 1/4 BSPT 78 ± 7.0 600 piston in steel Steel piston |
| PPCF150 | 30 - 150 72 12 G 1/4 BSPP female female 92 ± 7.0 600 piston in steel Steel piston |
| Current máx. / Max. current | < 30 mA |
| Maximum voltage 250 Vac, 24 Vdc; 30 V with option “G” | Max. voltage 250 Vac, 24 Vdc; 30 V with “G” option |
