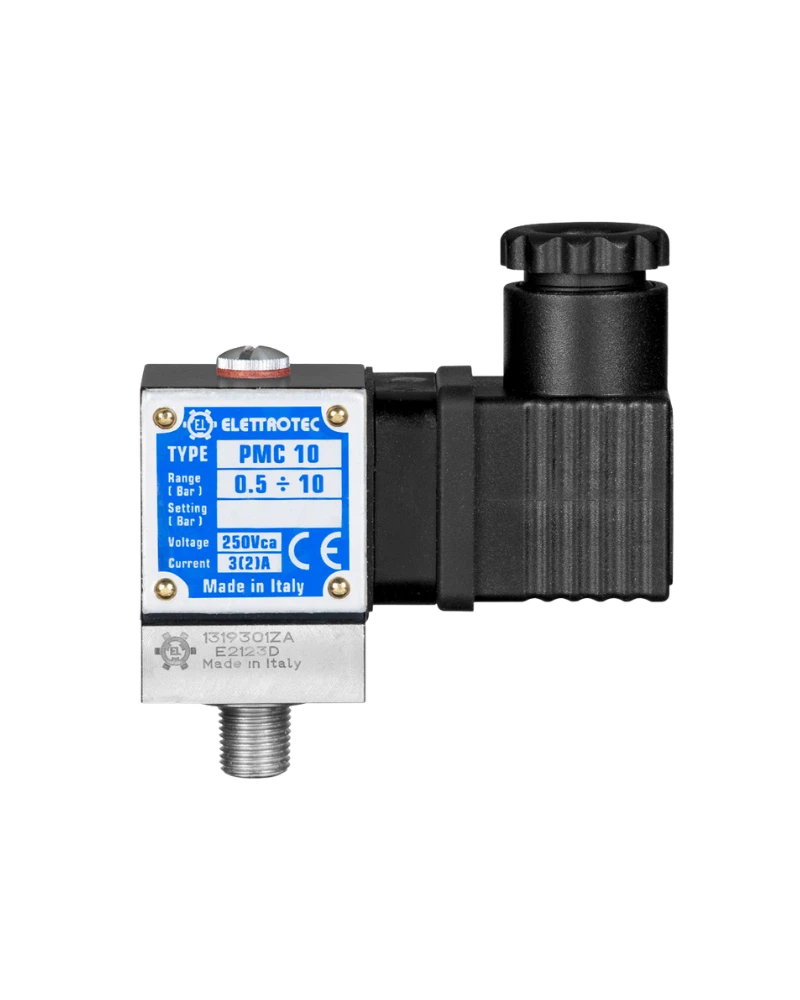

The ELETTROTEC PMC10DFC14KHSGSML24- Pressure switch with SPDT contacts- Pressure switch with SPDT contacts is an industrial Pressure intended for professional equipment and system applications, with product-specific technical characteristics available for selection and integration. Key characteristics include Dimensions: Body 30 x 30 – Max. high 95; Switch rating: 3 (2) A / 250 Vac; Adjustment range: 0.5 – 10 bar – 10 – 100 bar – 30 – 150 bar – 150 – 350 bar.

Product Overview

The PMC10DFC14KHSGSML24- Pressure switch with SPDT contacts is a Pressure intended for professional industrial applications.

Technical Characteristics

Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.

Key Features

• Dimensions of Body 30 x 30 – Max. high 95 for installation and space planning.
• Switch rating of 3 (2) A / 250 Vac for application-specific selection and integration.
• Adjustment range of 0.5 – 10 bar – 10 – 100 bar – 30 – 150 bar – 150 – 350 bar for application-specific selection and integration.
• Max. static pressure of 300 bar, 600 bar (according to possible pressure range and body material) for application-specific selection and integration.
• Options of Set-point rising and falling – Gold-plated contacts for low current – Degreased for oxygen – Connector with LED 24 V, 110 V, 220 V for application-specific selection and integration.
• Hysteresis of 30% of set-point for application-specific selection and integration.
• Temperature tange of -30 °C +140 °C (according to diaphragm/seal material) for application-specific selection and integration.
• Threads of G1/4 for straightforward system integration.

Applications

The PMC10DFC14KHSGSML24- Pressure switch with SPDT contacts can be considered for industrial systems and equipment requiring a Pressure. Final suitability should be evaluated against the complete system requirements.

Selection Considerations

Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.

Product Summary

The ELETTROTEC PMC10DFC14KHSGSML24- Pressure switch with SPDT contacts- Pressure switch with SPDT contacts is an industrial Pressure. Selection should be based on the documented characteristics and the requirements of the intended application.
