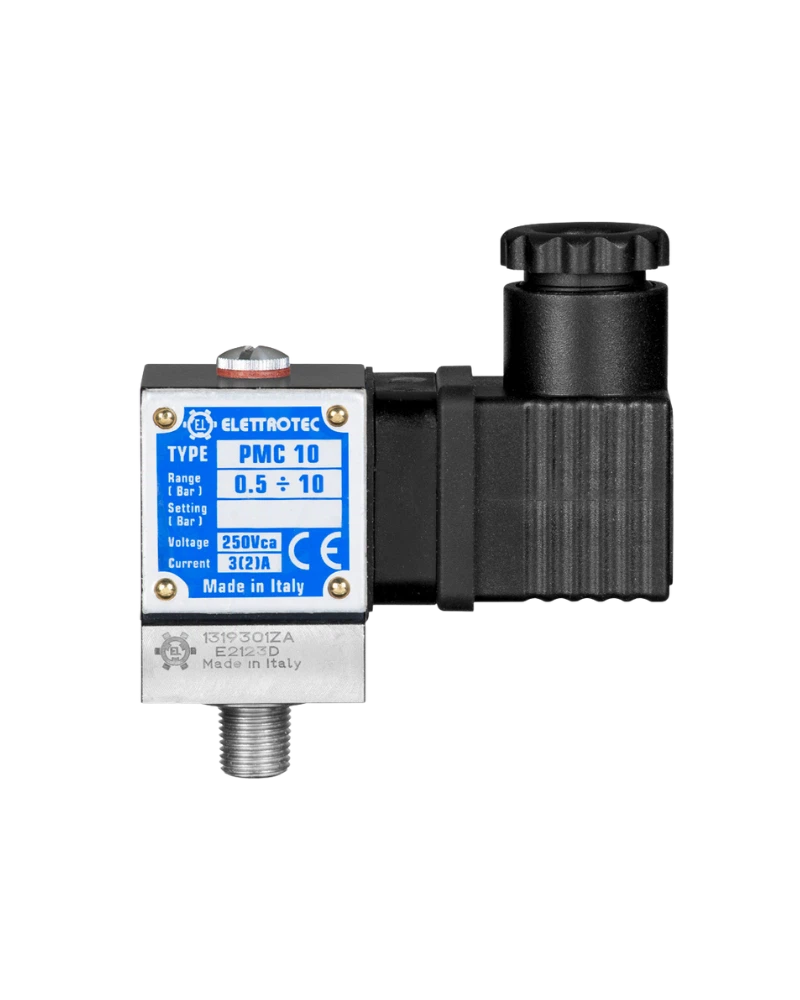

The ELETTROTEC PMC10DFC14KHSGSML220- Pressure switch with SPDT contacts- Pressure switch with SPDT contacts is an industrial Pressure intended for professional equipment and system applications, with product-specific technical characteristics available for selection and integration. Key characteristics include Dimensions: Body 30 x 30 – Max. high75 mm; Switch rating: 250 Vac, 24 Vdc; 30 V with “G” option / 3 (2) A; Adjustment range: 0.2 – 2 bar – 0.5 – 5 bar – 1 -10 bar – 5 – 25 bar – 25 – 80 bar.

Product Overview

The PMC10DFC14KHSGSML220- Pressure switch with SPDT contacts is a Pressure intended for professional industrial applications.

Technical Characteristics

Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.

Key Features

• Dimensions of Body 30 x 30 – Max. high75 mm for installation and space planning.
• Switch rating of 250 Vac, 24 Vdc; 30 V with “G” option / 3 (2) A for application-specific selection and integration.
• Adjustment range of 0.2 – 2 bar – 0.5 – 5 bar – 1 -10 bar – 5 – 25 bar – 25 – 80 bar for application-specific selection and integration.
• Max. static pressure of 350 bar for application-specific selection and integration.
• Hysteresis of 30% of set-point for application-specific selection and integration.
• Temperature tange of -30 °C +140 °C (according to diaphragm/seal material) for application-specific selection and integration.
• Threads of G1/8 BSPT – G1/4 BSPT for straightforward system integration.
• Options of Snubber for pressure picks – Set-point rising and falling – Gold-plated contacts for low current – Degreased for oxygen – Tested for applications with gas – Microswitch for – Led for – Connector – Execution with 2 for application-specific selection and integration.

Applications

The PMC10DFC14KHSGSML220- Pressure switch with SPDT contacts can be considered for industrial systems and equipment requiring a Pressure. Final suitability should be evaluated against the complete system requirements.

Selection Considerations

Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.

Product Summary

The ELETTROTEC PMC10DFC14KHSGSML220- Pressure switch with SPDT contacts- Pressure switch with SPDT contacts is an industrial Pressure. Selection should be based on the documented characteristics and the requirements of the intended application.
