Explore performance details, construction highlights, applications, and technical information in one clear overview.

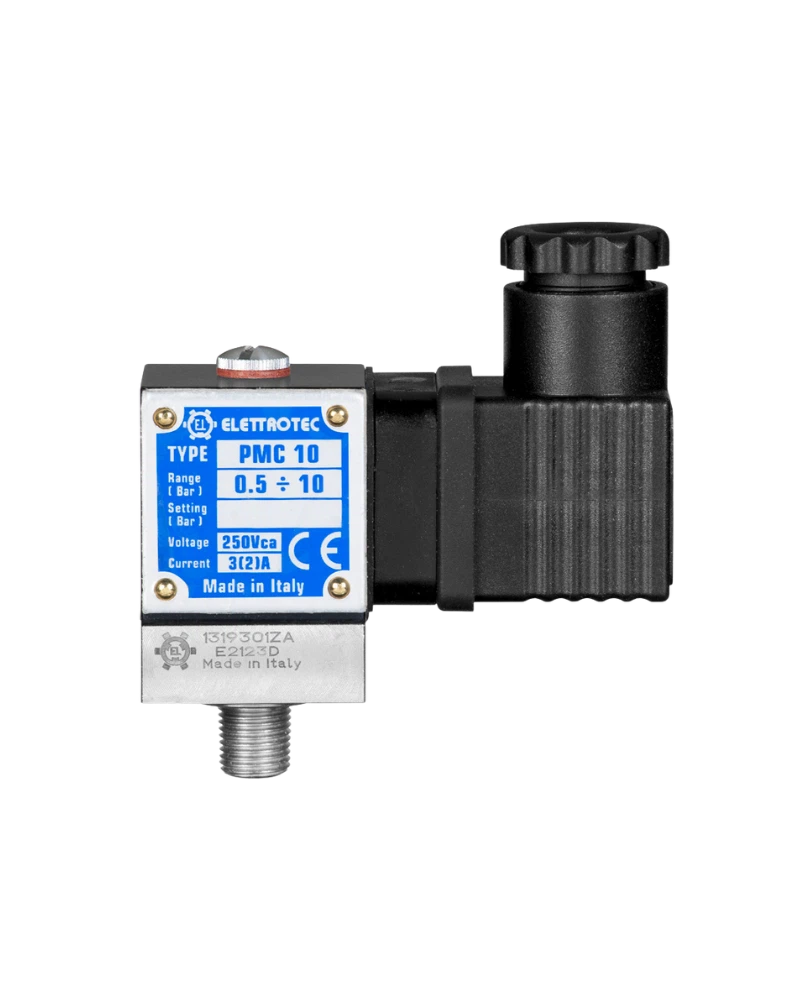

The PMC10DFC14KHSGL24- Pressure switch with SPDT contacts from ELETTROTEC is an industrial Pressure intended for professional equipment and system applications. The available product-specific technical information provides a practical basis for evaluation, selection and integration.
| Feature | Description |
|---|---|
| Input voltage | Vi 30 V |
| Dimensions | Body 30 x 30 mm – Max. high 75 mm |
| Input current | Li 100mA |
| Temperature range | -30 °C +140 °C (according to diaphragm/seal material) |
| Max. input power | Pi 0,75 W |
| Adjustment range | 0.2 – 2 bar – 0.5 – 5 bar – 1 – 10 bar – 5 – 25 bar – 25 – 80 bar |
| Max. static pressure | 350 bar |
| Certificate | ATEX – II 1 G EEX ia IIC T6 |
The documented technical characteristics for this model include Input voltage: Vi 30 V; Dimensions: Body 30 x 30 mm – Max. high 75 mm; Input current: Li 100mA; Temperature range: -30 °C +140 °C (according to diaphragm/seal material); Max. input power: Pi 0,75 W; Adjustment range: 0.2 – 2 bar – 0.5 – 5 bar – 1 – 10 bar – 5 – 25 bar – 25 – 80 bar; Max. static pressure: 350 bar; Certificate: ATEX – II 1 G EEX ia IIC T6. These values should be considered together with the process, equipment configuration and operating requirements of the intended application.
The available product information identifies Input voltage: Vi 30 V; Dimensions: Body 30 x 30 mm – Max. high 75 mm; Input current: Li 100mA.
The PMC10DFC14KHSGL24- Pressure switch with SPDT contacts can be evaluated for industrial systems and equipment requiring a Pressure. Final application suitability depends on the process conditions, system configuration and the verified characteristics required for the installation.
When integrating the product, verify the applicable connections, mounting arrangement, operating conditions and compatibility requirements against the manufacturer's technical documentation.
For engineering and procurement decisions, compare the documented characteristics with the requirements of the intended application. Particular attention should be given to performance, connections, operating conditions, construction and other model-specific values.
The ELETTROTEC PMC10DFC14KHSGL24- Pressure switch with SPDT contacts- Pressure switch with SPDT contacts is an industrial Pressure for application-specific evaluation and selection. The verified technical information should be reviewed alongside the actual system requirements before purchase or installation.
| Feature | Specification |
|---|---|
| Input voltage | Vi 30 V |
| Dimensions | Body 30 x 30 mm – Max. high 75 mm |
| Input current | Li 100mA |
| temperature range | -30 °C +140 °C (according to diaphragm/seal material) |
| Max. input power | Pi 0,75 W |
| Adjustment range | 0.2 – 2 bar – 0.5 – 5 bar – 1 – 10 bar – 5 – 25 bar – 25 – 80 bar |
| Max. static pressure | 350 bar |
| Certificate | ATEX – II 1 G EEX ia IIC T6 |
| Threads | G1/8 BSPT – G1/4 BSPT |
| Diaphragm / Seal material | NBR – FKM – HNBR – Siliwithe – Neoprene – EPDM |
