Explore performance details, construction highlights, applications, and technical information in one clear overview.

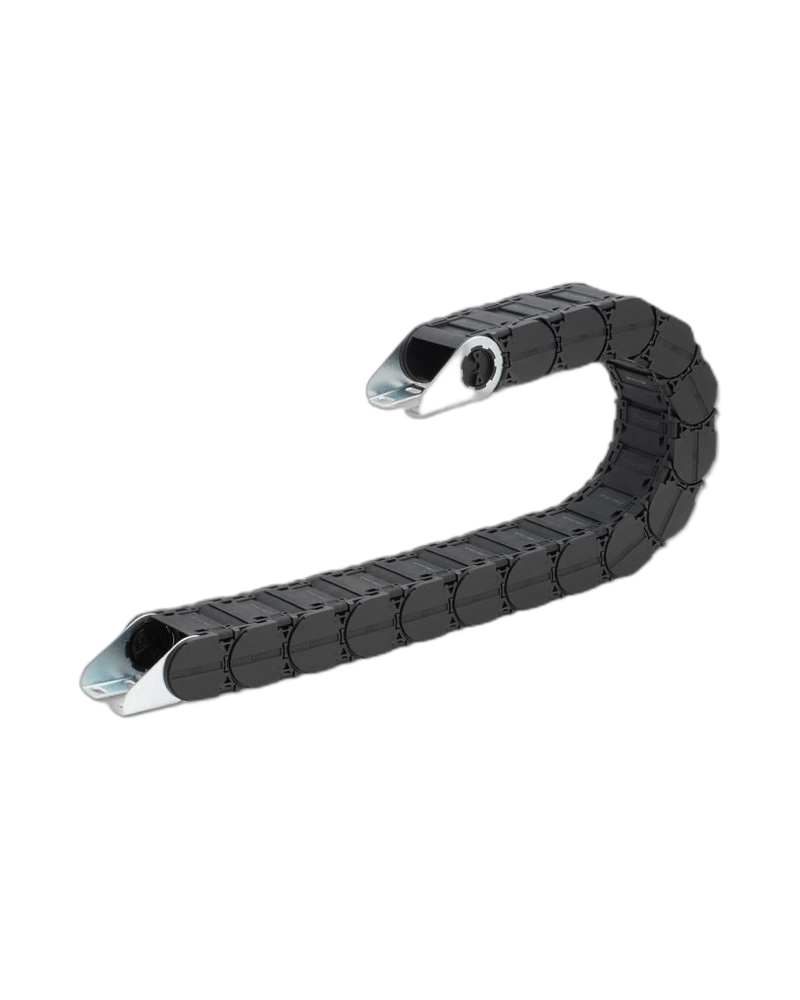

The Plarailchain SPO is a full-cover cable carrier designed to protect cables and tubing from environmental contaminants such as dust, while minimizing wear during operation. Its primary purpose is to ensure long-term integrity of stored wires and air tubes by reducing abrasion at the point of contact, thereby extending service life and maintaining system reliability in demanding industrial environments.
The Plarailchain SPO is constructed from PA6 with 30% glass fiber reinforcement (PA6 GF30%), providing a durable and wear-resistant structure. This material combination ensures mechanical strength while maintaining flexibility for smooth cable movement, and the special resin formulation contributes to reduced abrasion on internal components.
The carrier features a flap that opens from both the outer radius and inner radius, allowing for convenient access to the cable or tubing during installation, maintenance, or replacement without requiring disassembly of the entire system. This dual-directional opening enhances operational efficiency in tight or confined spaces.
The Plarailchain SPO is rated for operation within a temperature range of -10℃ to 80℃ and can support a maximum cable or tubing load of 32 kg/m for cables and 65 kg/m for tubes. It is designed to operate at a maximum traveling speed of 3 m/s, ensuring reliable performance under dynamic motion conditions.
The Plarailchain SPO is available in standard configurations with consistent dimensions and material specifications across variants. No color options are specified; the product is offered in a single, standardized finish suitable for industrial environments requiring functional durability over aesthetic appeal.
Installation of the Plarailchain SPO requires alignment with compatible guide rails or track systems to ensure proper cable guidance. The carrier integrates directly into existing linear motion systems where it can be mounted and secured using standard mounting hardware provided in the system configuration.
| Specification | Details |
|---|---|
| Body material | PA6 GF30% |
| Service temp. range | -10
