Product Overview

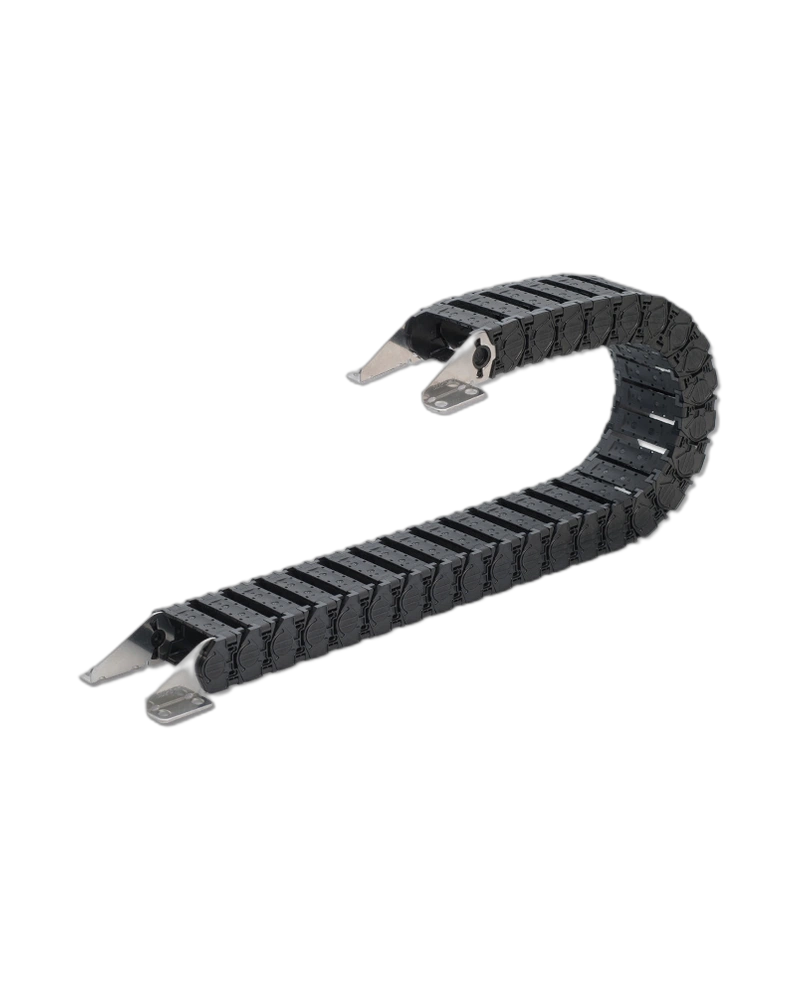

The Plarailchain SD is a high-performance chain system designed for use in demanding drive applications where both speed and load capacity are critical. It excels in high-speed, high-load drive sections, providing reliable motion transmission under extreme operational conditions. Its reinforced connecting structure ensures durability while maintaining precision, making it ideal for industrial automation systems requiring consistent performance over time.

Construction and Materials

The Plarailchain SD is constructed from a durable PA10T GF40% body material, offering excellent strength and wear resistance. The fixture is made of stainless steel (SUS430), which provides firm support during high-speed, high-load operations. This combination ensures structural integrity while minimizing friction and wear at contact points.

Configuration and Connections

The chain features a unique joint design that increases the contact area between links, reducing play and misalignment. This improved interface enables stable X-Y combined motion, ensuring precise positioning even under dynamic loads. The side plate stopper area is approximately 25% larger than that of the conventional Plarailchain SP model, enhancing mechanical stability during operation.

Operating Characteristics

The Plarailchain SD operates efficiently within a service temperature range of -10℃ to 80℃. It supports a maximum traveling speed of 4 m/s and can carry up to 7 kg of cable or tubing per meter without compromising performance. The shortened pitch length between links contributes to smooth operation, while minimizing bounce-up motion at start and stop events extends the chain’s service life.

Sizes and Options

The Plarailchain SD is available in a single standard configuration designed for high-load drive applications. It does not offer color variants or size options beyond its standard dimensions, ensuring compatibility with existing industrial systems that require consistent mechanical performance and precision motion control.

Installation and Integration

Installation of the Plarailchain SD requires integration into existing drive systems where high-speed, high-load transmission is needed. The stainless steel fixture provides a secure mounting point, and the chain’s design allows for direct connection to compatible guides or rails without additional adapters. Its smooth operation and low wear characteristics ensure seamless integration with automated motion systems.
