Explore performance details, construction highlights, applications, and technical information in one clear overview.

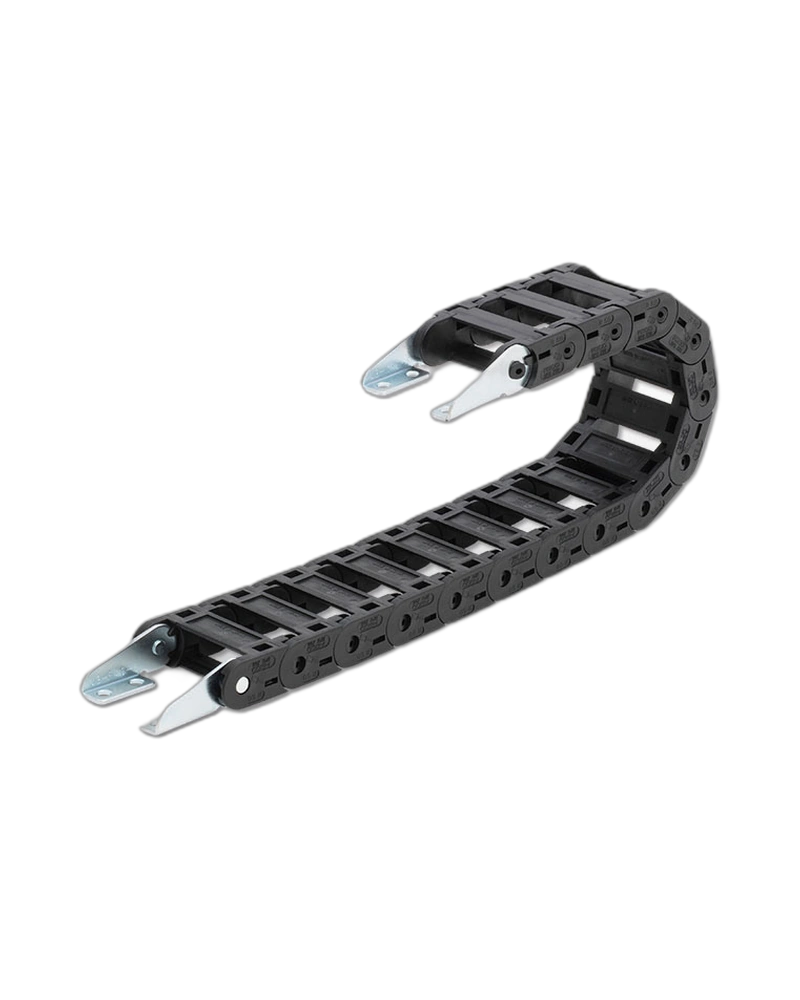

The Plarailchain HPM is a full-cover cable guide chain designed for use in mass-produced special-purpose machines. Its primary purpose is to provide reliable, dust-resistant protection for cables and tubing during operation, ensuring long-term performance in demanding industrial environments.
Constructed from PA6 with 20% glass fiber reinforcement (PA6 GF20%), the Plarailchain HPM offers a durable, cost-effective structure that resists wear and maintains structural integrity under typical operating conditions. The design features a simple, low-cost appearance while maintaining effective dust exclusion properties.
The chain connects via standard rail or guide mounting interfaces, allowing it to be integrated directly into machine frames or chassis. It is designed for straight-line cable routing and supports continuous movement of cables or tubing through its open channel structure.
The Plarailchain HPM operates within a service temperature range of -10℃ to 80℃. It can support a maximum cable or tubing weight of 3 kg/m under normal conditions, with an increased capacity of up to 4.5 kg/m in optimized configurations. The maximum traveling speed supported is 2.5 m/s.
The Plarailchain HPM is available in standard dimensions suitable for general-purpose cable guidance applications. It comes in a single color option, typically gray, which matches the industrial aesthetic of most production environments and ensures consistent visual integration with machine components.
Installation is straightforward and requires alignment with existing rail or guide systems. The chain can be mounted directly to machine frames using standard fastening methods, and its design allows for easy integration into existing cable management layouts without additional adapters.
| Specification | Details |
|---|---|
| Body material | PA6 GF20% |
| Service temp. range | -10
