Product Overview

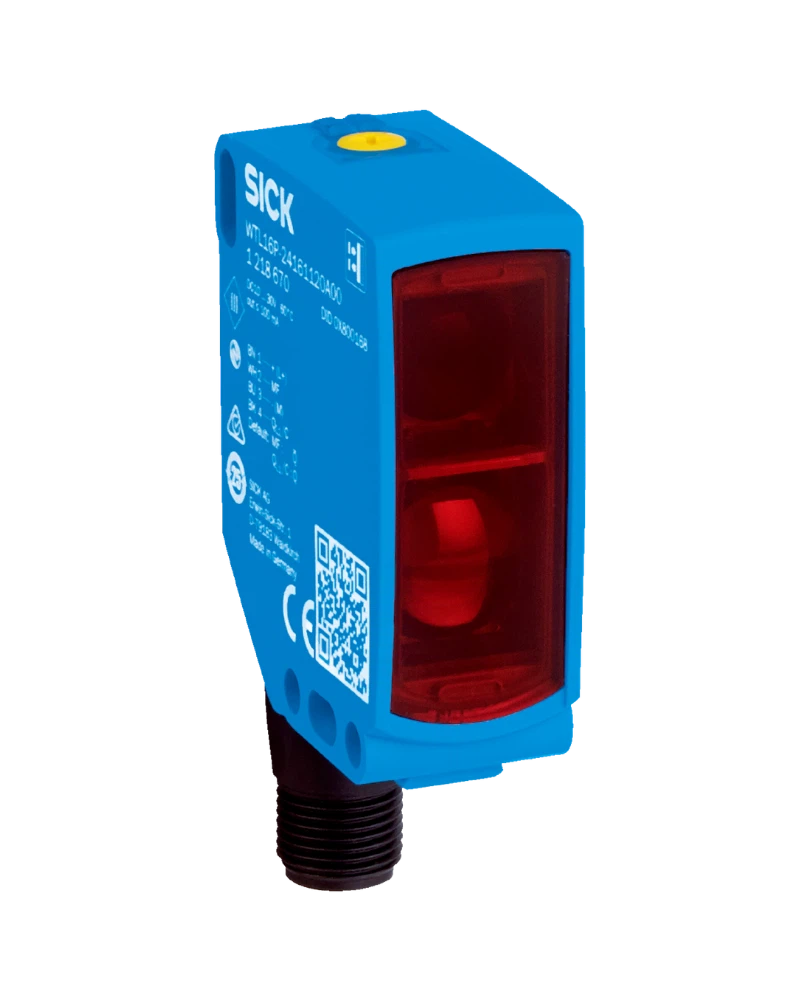

The SICK W16 photoelectric sensor is a versatile, ready-to-install device designed for reliable detection in demanding industrial environments. Featuring a robust VISTAL housing, it offers exceptional durability and resistance to extreme mechanical loads. Available with metal housings that meet ATEX requirements for device categories 3D and 3G, the W16 series ensures safe operation in explosion-hazardous areas such as Zone 22 (non-conductive dusts) and Zone 2. With a dual-mode design combining teach-in functionality and potentiometer control in one element, it enables intuitive and rapid fine-tuning of sensing parameters. The sensor supports multiple operating modes including background suppression, foreground suppression, two independent switching points, and window mode—enhancing flexibility for diverse applications. Its compact, unified design reduces inventory complexity while maintaining high performance across a wide range of materials and surfaces.

Key Features and Technology

The W16 sensor leverages advanced detection technologies to ensure reliable operation under challenging conditions. TwinEye technology uses two receivers in one sensor to improve detection reliability, especially for uneven, shiny, or reflective surfaces—including jet black objects. ClearSens technology ensures consistent detection of transparent materials such as glass bottles and cling film. LineSpot technology delivers high accuracy on perforated, structured, or irregularly shaped objects. Foreground suppression enables reliable detection of very flat, poorly reflecting, or low-emittance surfaces. The blue LED alignment aid simplifies installation by providing real-time visual guidance for optimal sensor and reflector positioning. These technologies collectively enhance operational safety and reduce false detections in complex environments.

Technical Characteristics

The W16 series offers a 2-in-1 control system combining a teach-in button with a potentiometer, enabling intuitive fine-tuning of sensing range in seconds. The visual representation of the sensing range provides real-time feedback for accurate setup and maintenance. Available variants such as WTM4FF, WTM4SF, WTM12F, WTM12L, WTM16F, and WTM26F support MultiMode operation—allowing background suppression, foreground suppression, two independent switching points, or window mode settings directly on the device or via IO-Link. The sensor operates as a photoelectric proximity switch with retro-reflective and through-beam capabilities. Detection reliability is enhanced by TwinEye, ClearSens, and LineSpot technologies, ensuring consistent performance across reflective, transparent, and uneven materials.

Configuration and Integration

The W16 sensor supports flexible configuration through its MultiMode feature, allowing users to set various operating modes directly on the device or via IO-Link. This enables seamless integration into existing control systems without requiring additional hardware. The combination of a teach-in button and potentiometer allows for quick, on-site adjustments during installation or maintenance. For explosion-hazardous environments, metal-housed variants comply with ATEX categories 3D and 3G, making them suitable for use in Zone 22 (non-conductive dusts) and Zone 2 areas. The visual sensing range display supports accurate setup and verification, reducing configuration errors. Integration is simplified by the sensor’s ready-to-install design and standardized mounting options.

Operating Environment

The W16 photoelectric sensor is designed for operation in harsh industrial environments. It meets ATEX requirements for device categories 3D and 3G, enabling safe use in explosion-hazardous zones including Zone 2 (flammable gases or vapors) and Zone 22 (non-conductive dusts). The VISTAL housing provides exceptional mechanical strength and resistance to extreme loads, ensuring long-term reliability under physical stress. The sensor is suitable for a wide range of ambient conditions, with performance maintained across varying temperatures and humidity levels typical in manufacturing settings. Its robust construction ensures durability even when exposed to vibration or impact during operation.

Industrial Applications

The W16 photoelectric sensor is ideal for applications requiring reliable detection of diverse materials and surface types. It excels in detecting transparent objects like glass bottles and cling film using ClearSens technology, while TwinEye ensures consistent performance on reflective or uneven surfaces such as shiny metals or jet black plastics. LineSpot technology supports accurate detection of perforated or structured items like paper rolls or mesh products. Foreground suppression enables reliable detection of flat, low-reflectivity materials. Common applications include packaging lines, material handling systems, and assembly processes where object presence must be confirmed with high accuracy under variable conditions. Its adaptability makes it suitable for use in both cleanroom and high-dust environments.
