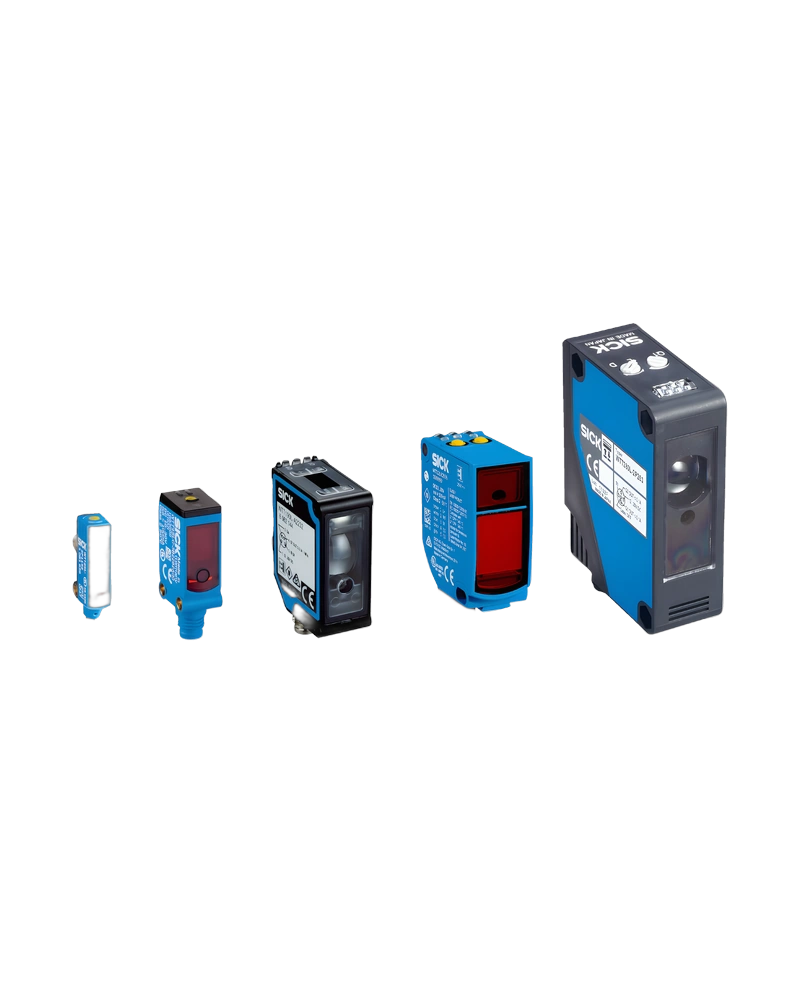

Product Overview

The SICK PowerProx photoelectric sensor is a robust, reliable proximity sensor designed for precise object detection in industrial environments. Based on optical time-of-flight technology with background suppression, it ensures accurate sensing even in the presence of ambient light or reflective backgrounds. The sensor emits visible red laser light to detect objects within a range of 200 mm to 4,000 mm (depending on object reflectivity), making it ideal for applications requiring consistent performance across varying conditions. With two independent switching outputs (Q1 and Q2) and selectable light/dark switching via a rotary switch, the PowerProx offers flexibility in configuration. Its compact rectangular housing and high-speed response time of ≤0.5 ms enable real-time detection in fast-paced production processes.

Key Features and Technology

The PowerProx utilizes background suppression combined with optical time-of-flight technology to distinguish target objects from surrounding background noise. This ensures reliable detection regardless of ambient lighting or surface reflectivity. The sensor emits a visible red laser beam with a light spot size of Ø12 mm at 3 meters, providing precise targeting and reduced risk of false triggers. It operates effectively on objects with up to 90% remission (standard white, DIN 5033) and is optimized for detection of objects with 6% reflectivity (black surface). The light/dark switching mode can be selected via a rotary switch, allowing users to configure the sensor based on whether they are detecting presence or absence. Safety warnings emphasize that the laser beam should never be intentionally directed at people's eyes.

Technical Characteristics

The PowerProx is designed for reliable operation with a supply voltage range of 10 V DC to 30 V DC, featuring ripple less than 3 V pp. It consumes a current of 70 mA under normal operating conditions and delivers a maximum output current of ≤100 mA. The sensor supports two PNP switching outputs (Q1 and Q2), each capable of light/dark switching depending on the selected mode. With a switching frequency of up to 1,000 Hz, it can handle high-speed cycling applications. The average service life is rated at 100,000 hours when operated at +25 °C under standard conditions. Circuit protection includes reverse-polarity protection (A), overvoltage protection (B), overcurrent protection (C), and short-circuit protection (D). The sensor operates within a maximum short-circuit current limit of 8 A in protected networks.

Configuration and Integration

The PowerProx offers two switching thresholds (Q1 and Q2) that can be individually configured for precise detection logic. Light/dark switching is selectable via a rotary switch, enabling users to define whether the sensor triggers on object presence or absence. The PNP output design ensures compatibility with most industrial control systems and PLCs. No analog outputs are provided. Integration requires proper alignment of the laser beam with the target object, ensuring optimal detection range and accuracy. The sensor is designed for direct mounting in standard industrial environments where electrical safety and signal integrity are critical. Users must ensure that the sensor is not pointed at personnel or reflective surfaces that could cause misinterpretation.

Operating Environment

The PowerProx is suitable for operation within a wide range of industrial conditions, including ambient temperatures typically found in manufacturing environments. It is designed to function reliably under standard operating conditions with a maximum supply voltage of 30 V DC and a ripple of less than 3 V pp. The sensor is rated for use in short-circuit protected networks with a maximum current limit of 8 A. While not explicitly stated, its design supports operation in environments where electromagnetic interference may be present due to robust circuit protection (A–D). Users must avoid exposing the laser beam to direct eye contact and ensure that the sensor is installed in accordance with safety guidelines to prevent accidental exposure.

Industrial Applications

The PowerProx is ideal for use in automated assembly lines, packaging systems, and material handling processes where reliable object detection is essential. Its ability to detect objects from 200 mm to 4,000 mm (depending on reflectivity) makes it suitable for both close-range and long-distance sensing tasks. Applications include presence/absence detection of parts, product counting, and position verification in conveyor systems. The sensor’s high switching frequency (up to 1,000 Hz) supports real-time monitoring in dynamic environments. With two independent outputs and selectable switching modes, it enables complex logic control without additional hardware. Its durability and long service life—rated at 100,000 hours at +25 °C—make it a cost-effective solution for continuous industrial operation.
