The SICK EventCam is an industrial-grade 2D camera designed for the detection and analysis of sporadic errors in industrial processes. It is intended for situations such as unexplained gripping, handling or positioning problems, unreproducible installation errors and machine downtimes. The EventCam can be integrated into stationary and mobile applications and provides single frames and video sequences for detailed error analysis.
A connected automation system or sensor can report an event through the camera trigger input. The EventCam then stores single frames or video sequences in its internal ring memory, allowing the operator to examine the period immediately before and after the event instead of searching through continuous video material.
The EventCam supports configurable resolution, output format and trigger signals through the browser-based SOPAS Air software. At SVGA resolution it can store up to 240 seconds before and 100 seconds after an event in the internal ring memory. In Full HD at 30 frames per second, the documented recording window is up to 25 seconds before and 15 seconds after the event. Stored media can be accessed over the network through the Ethernet interface and FTP.

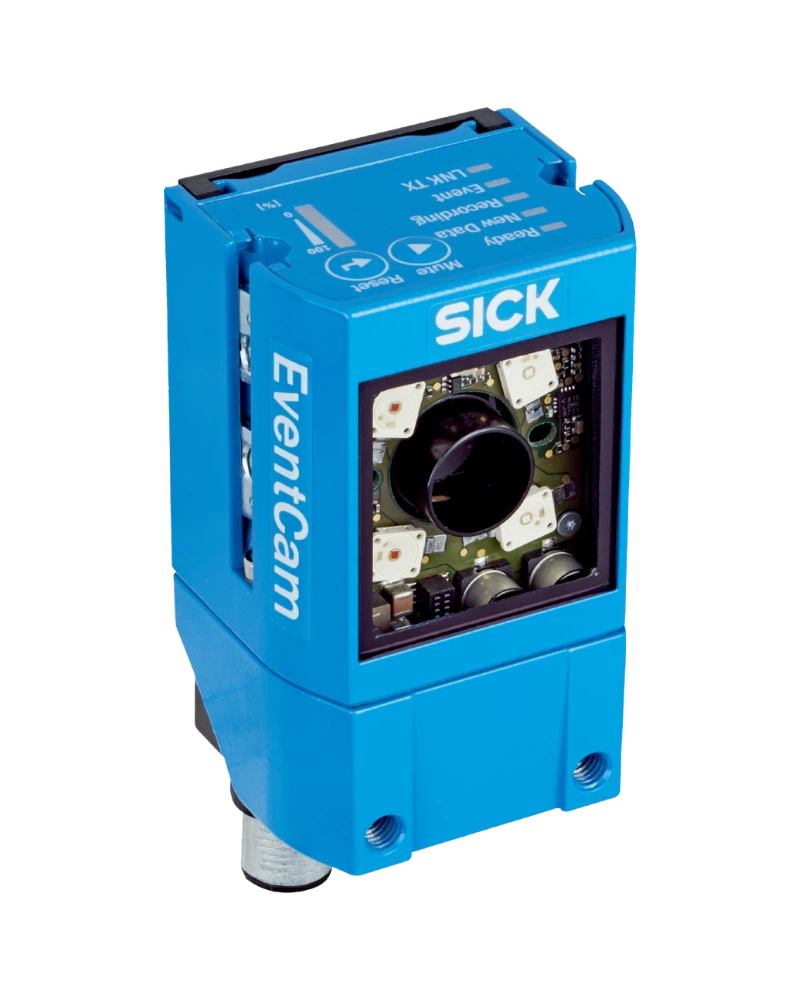

The optics, illumination, electronics and ring memory are housed in a compact IP65 enclosure made from cast aluminum. The housing provides multiple mounting options for flexible installation. Two working-distance variants are documented: 0.4 m to 0.6 m for compact stationary applications and 0.8 m to 6 m for larger robots, handling gantries and machines.
| Specification | Value |
|---|---|
| material | Lesefenster Kunststoff (PMMA) 2 mm dick, kratzfest beschichtet |
| Material | zur Verfügung. |
| ethernet | verbindung 100 Mbit/s |
| value | Lesefenster Kunststoff (PMMA) 2 mm dick, kratzfest beschichtet |
| verbindung | 100 Mbit/s |
| Lesefenster Kunststoff (PMMA) | 2 mm dick, kratzfest beschichtet |
| Ethernetverbindung | 100 Mbit/s |
| Material Lesefenster Kunststoff (PMMA) | 2 mm dick, kratzfest beschichtet |
| Abmessungen | 71 mm x 43 mm x 35,6 mm |
| Gewicht | 170 g |
| Schutzart | IP65 |
| Betriebsspannung | 24 V DC +/-20 % SELV |
| Ausgangsstrom je Digitalausgang | ≤ 50 mA |
| Leistungsaufnahme Typ. | 4 W |
