The IFM OID254 is a laser distance sensor for accurate measurement between 0.03 and 2 m. It uses a Class 1 laser and background suppression for dependable target detection. The stainless-steel M30 housing provides high environmental protection for demanding installations. Two complementary PNP outputs and IO-Link communication provide flexible automation integration. The sensor is particularly suitable for industrial applications requiring robust optical distance measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The OID254 measures distance using red laser light and time-of-flight technology. Its 0.03...2 m range covers many machine-monitoring and positioning requirements. Background suppression helps prevent false switching from objects located behind the intended target. A small laser spot supports accurate target alignment. The sensor therefore provides dependable distance detection for automated machinery.

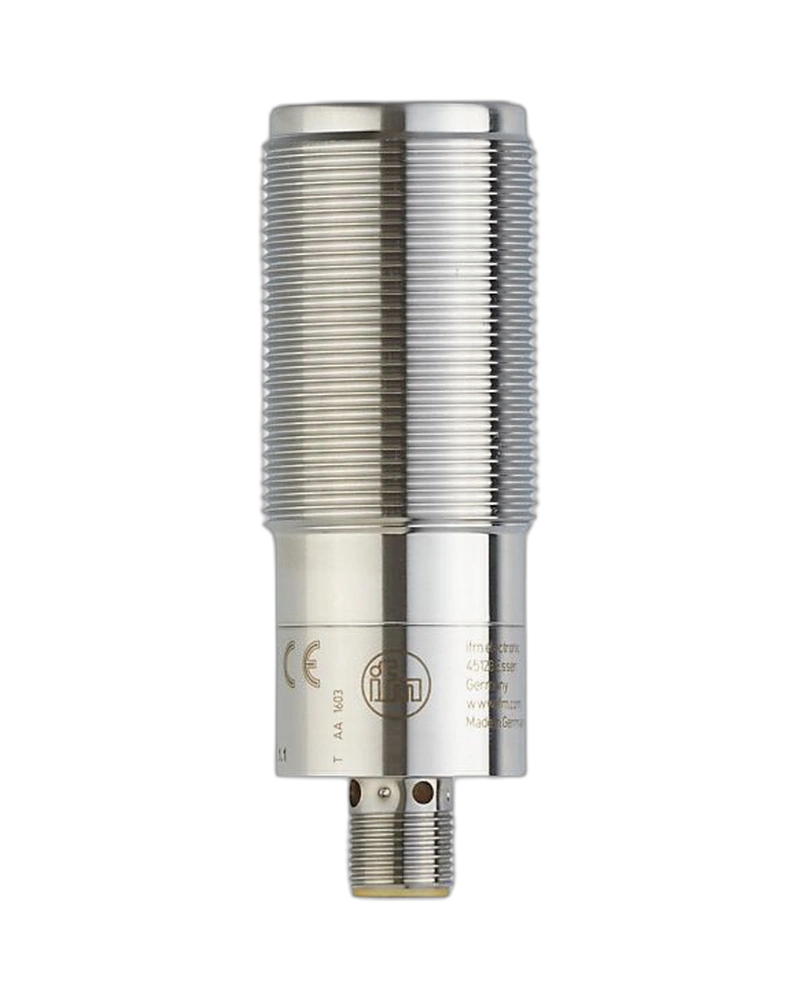

The sensor uses a stainless-steel M30 × 1.5 housing for demanding industrial environments. Its IP65, IP67, IP68, and IP69K ratings support use where water, dust, and intensive cleaning may occur. The optical window is made from PMMA. The compact cylindrical construction supports straightforward machine mounting. This design provides a durable solution for harsh-area optical sensing.
The OID254 supports IO-Link for sensor configuration and diagnostic communication. Its two PNP outputs provide complementary switching signals. The M12 connection simplifies integration with industrial control systems. A yellow switching-status LED provides local operating feedback. IO-Link also enables process data to be transferred directly to the automation system.
0.03...2 m measuring range
Class 1 laser
Red laser light
Background suppression
PNP complementary outputs
IO-Link
M30 × 1.5 housing
Stainless-steel construction
M12 connector
IP65/IP67/IP68/IP69K
33 Hz sampling rate
Short-circuit protection
Overload protection
Visible laser spot
Industrial construction
Industrial distance measurement
Machine positioning
Object detection
Conveyor automation
Packaging systems
Metal-processing equipment
Harsh-area automation
Washdown equipment
Material handling
Process monitoring
The OID254 combines accurate optical measurement with a highly protected housing. Its stainless-steel construction provides mechanical durability for industrial installations. High ingress protection helps protect the sensor from moisture and cleaning processes. Background suppression supports stable detection even when background surfaces are present. This combination makes the OID254 appropriate for demanding production environments.
| Specification | OID254 |
|---|---|
| Product Type | Photoelectric distance sensor |
| Order Code | OID254 |
| Measuring Principle | Laser distance |
| Measuring Range | 0.03...2 m |
| Background Suppression | <20 m |
| Light Type | Red laser |
| Wavelength | 650 nm |
| Laser Class | 1 |
| Light Spot | <5 mm at 2 m |
| Sampling Rate | 33 Hz |
| Electrical Design | PNP |
| Supply Voltage | 10...30 V DC |
| Current Consumption | <75 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Digital Outputs | 2 |
| Output Function | Complementary NO/NC |
| Output Current | 100 mA per output |
| Switching Frequency | 11 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| Connection | M12 |
| Connector | 5-pin |
| Housing | Stainless steel |
| Thread | M30 × 1.5 |
| Weight | 217.15 g |
| Protection Rating | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...60 °C |
