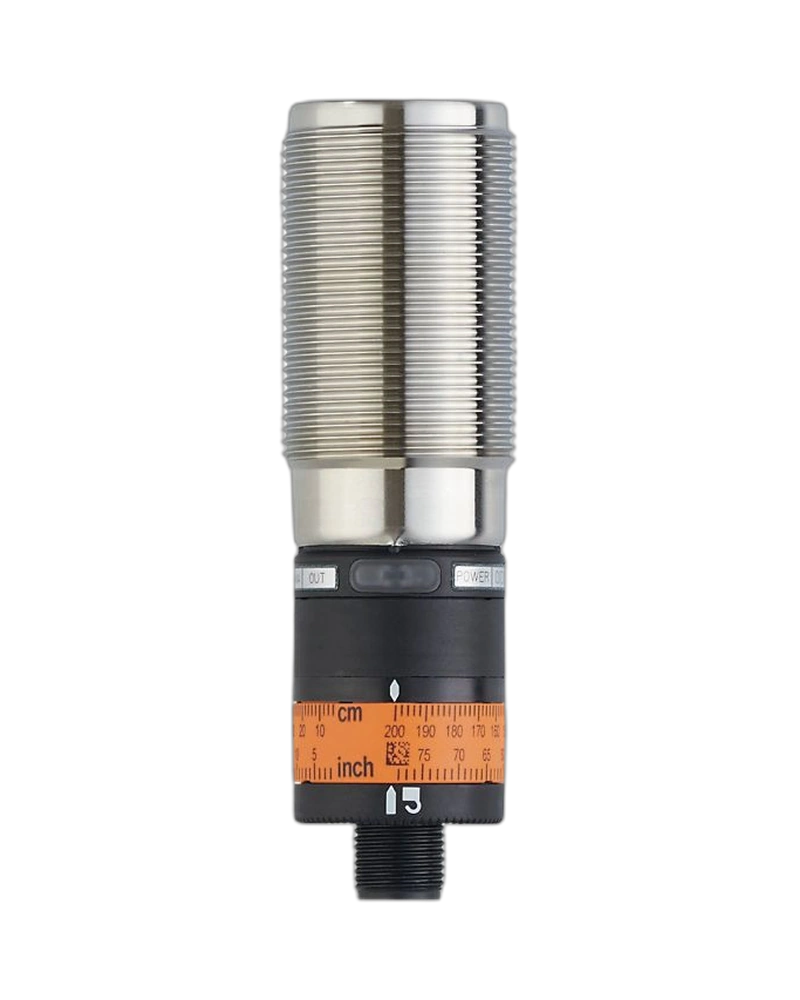

The IFM OID250 is a compact laser distance sensor with a 0.03...2 m measuring range. It uses a Class 1 red laser and background suppression for reliable object detection. The PNP sensor provides complementary switching outputs and IO-Link communication. A radial adjustment ring provides convenient switching-point configuration. Its stainless-steel M30 × 1.5 housing provides IP65/IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The OID250 measures targets between 0.03 and 2 m. Background suppression extends to less than 20 m. The red 650 nm laser provides a visible optical reference. Its sampling rate is 33 Hz. These characteristics support reliable distance monitoring.
The adjustment ring provides direct local switching-point adjustment. The sensor supports centimetre and inch units. Complementary PNP outputs provide switching information. Yellow and green LEDs indicate status. This makes commissioning straightforward.
IO-Link 1.1 provides process data and parameterisation. COM2 communication operates at 38.4 kBaud. SIO mode is available for conventional switching. Diagnostic and identification functions can be accessed digitally. This supports integration into connected automation systems.
0.03...2 m measuring range
Class 1 laser
650 nm red light
Background suppression <20 m
PNP output
Complementary outputs
Setting ring
33 Hz sampling rate
IO-Link 1.1
COM2 communication
M30 × 1.5 housing
Stainless steel
IP65/IP67
M12 connector
10...30 V DC
Distance monitoring
Object detection
Conveyor systems
Packaging machinery
Material handling
Machine positioning
Factory automation
Assembly equipment
Production monitoring
Industrial sensing
The stainless-steel housing provides durable mechanical protection. IP65/IP67 ratings support industrial dust and water exposure. The Class 1 laser provides a controlled optical measurement source. Background suppression reduces unwanted background detection. This makes the OID250 suitable for demanding factory applications.
| Specification | OID250 |
|---|---|
| Product Type | Photoelectric distance sensor |
| Model | OID250 |
| Product Code | OIDLCPKG/US |
| Measuring Range | 0.03...2 m |
| Background Suppression | <20 m |
| Light Type | Red laser |
| Wavelength | 650 nm |
| Laser Class | 1 |
| Sampling Rate | 33 Hz |
| Light Spot | <5 mm |
| Hysteresis | <4% at max. range |
| Electrical Design | PNP |
| Output Function | Complementary |
| Digital Outputs | 2 |
| Output Current | 100 mA/output |
| Supply Voltage | 10...30 V DC |
| Current Consumption | <75 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Short-Circuit Protection | Pulsed |
| Overload Protection | Yes |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| SIO Mode | Yes |
| Process Cycle | 6.4 ms |
| Device ID | 373 default |
| Housing | Stainless steel |
| Dimensions | M30 × 1.5 / L=100 mm |
| Protection | IP65/IP67 |
| Ambient Temperature | -25...60 °C |
| Weight | 207 g |
