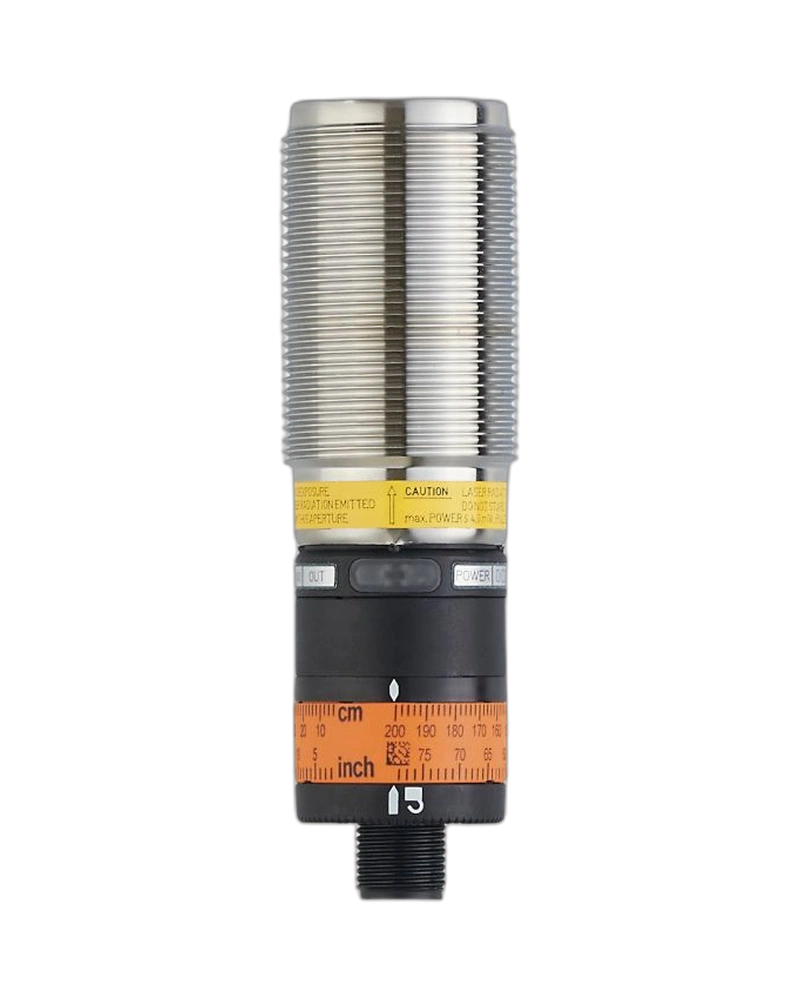

The IFM OID200 is a laser distance sensor with a 30...2000 mm measuring range. It uses a visible 650 nm red laser and a radial setting ring for convenient switching-point adjustment. The sensor provides complementary PNP outputs and IO-Link communication. Its M30 × 90 mm housing supports compact industrial installation. IP65/IP67 protection provides resistance to dust and water exposure.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The OID200 measures targets from 30 to 2000 mm. Background suppression extends to approximately 20 m. The sensor uses a Class 2 laser. Its switching frequency reaches 11 Hz. These characteristics support reliable industrial distance detection.
A radial setting ring allows the switching distance to be adjusted directly. The sensor supports centimetre and inch measurement units. Complementary outputs provide normally open and normally closed switching signals. Yellow and green LEDs indicate switching and operating status. This simplifies installation and commissioning.
The OID200 supports IO-Link for digital configuration and diagnostics. It can also operate through conventional switching. The M12 connector provides a standardized connection. Output parameters can be configured to match machine requirements. This provides flexibility for PLC-based automation.
30...2000 mm range
650 nm red laser
Laser class 2
Background suppression up to 20 m
PNP output
Complementary outputs
Radial setting ring
11 Hz switching
M12 connector
IP65/IP67
10...30 V DC
100 mA output
IO-Link
Yellow switching LED
Green operation LED
Object detection
Distance measurement
Conveyor systems
Packaging machinery
Material handling
Machine positioning
Factory automation
Production monitoring
Assembly equipment
Process control
The setting ring allows the operator to adjust the switching point without external programming equipment. This is useful during initial machine setup. The visible laser assists alignment. Complementary outputs provide straightforward control signals. The result is a practical distance-sensing solution.
| Specification | OID200 |
|---|---|
| Product Type | Photoelectric distance sensor |
| Model | OID200 |
| Measuring Range | 30...2000 mm |
| Background Suppression | Up to 20 m |
| Light Type | Visible red laser |
| Wavelength | 650 nm |
| Laser Class | 2 |
| Light Spot | <5 mm |
| Hysteresis | <2% at max. range |
| Sampling Rate | 33 Hz |
| Switching Frequency | 11 Hz |
| Electrical Design | PNP |
| Output Function | Complementary NO/NC |
| Digital Outputs | 2 |
| Output Current | 100 mA/output |
| Supply Voltage | 10...30 V DC |
| Current Consumption | <75 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Short-Circuit Protection | Pulsed |
| Overload Protection | Yes |
| Communication | IO-Link |
| Setting Method | Radial setting ring |
| Measurement Unit | cm/inch |
| Connection | M12 |
| Housing | M30 threaded |
| Dimensions | M30 × 90 mm |
| Protection | IP65/IP67 |
| Status Indication | Yellow/green LED |
