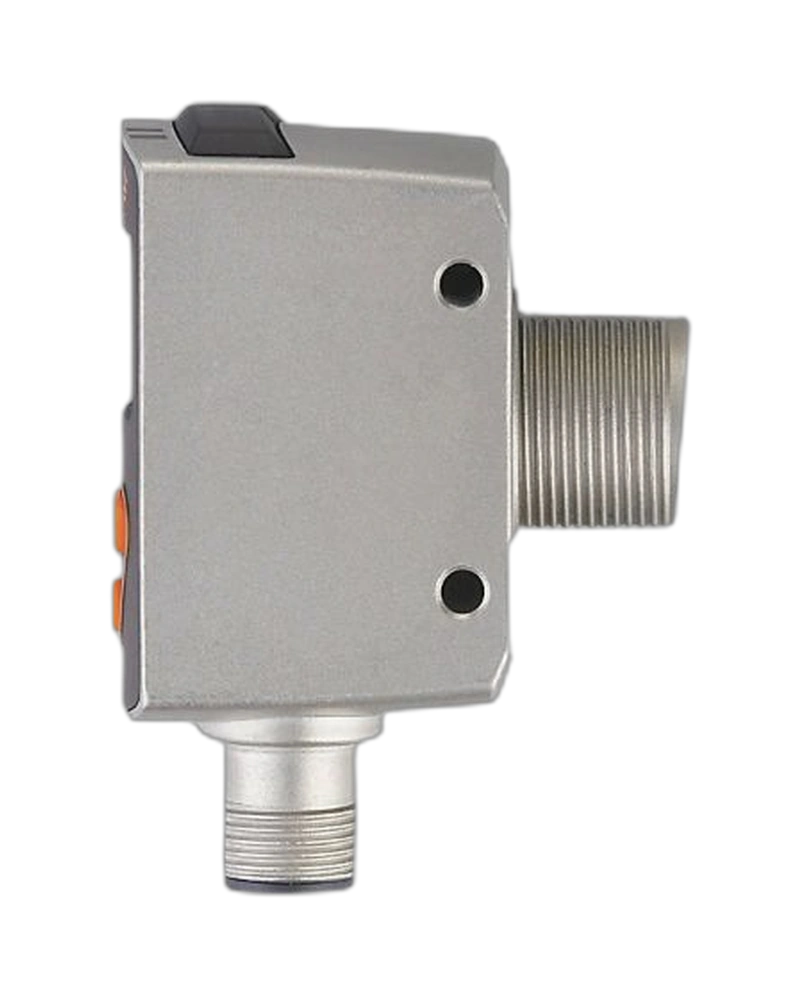

The IFM OGD596 is a compact laser distance sensor designed for precise measurement from 25 to 300 mm. It uses a Class 1 red laser, background suppression, and a three-digit display. Two programmable PNP outputs provide flexible switching functions. IO-Link enables parameterisation, diagnostics, and process-data communication. Its stainless-steel M18 housing and IP65/IP67 protection make it suitable for industrial factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The OGD596 provides a 0.025...0.3 m measuring range with a 33 Hz sampling rate. Its maximum light spot width and height are 3 mm at the maximum range. Background suppression extends from 0.03 to 19.2 m. The sensor is suitable for accurate detection of objects positioned relatively close to the sensor. This makes it useful for compact machine assemblies and production equipment.
The OGD596 provides two PNP digital outputs. Each output can be configured as normally open, normally closed, window, or switched off. Each switching output supports a permanent current rating of 100 mA. Pulsed short-circuit protection and overload protection are integrated. This provides flexible switching control for automated equipment.
The OGD596 communicates through IO-Link COM2 at 38.4 kBaud. Its minimum process cycle time is 5 ms. A three-digit alphanumeric display provides local measurement and parameter information. Programming buttons allow direct sensor configuration. IO-Link also provides device identification, process values, diagnosis, and a teach channel.
25...300 mm detection range
0.025...0.3 m measuring range
Class 1 laser
650 nm red light
3 mm maximum light spot
Three-digit display
Programming buttons
Two PNP outputs
NO/NC/window configuration
IO-Link 1.1
COM2 38.4 kBaud
5 ms process cycle
Stainless-steel housing
M18 × 1 thread
IP65/IP67
Object presence detection
Position monitoring
Assembly machines
Packaging systems
Conveyor systems
Factory automation
Small-part detection
Machine positioning
Process monitoring
Industrial automation
The OGD596 is optimized for accurate measurement within a compact sensing range. Its small optical spot supports precise target detection. Programmable output functions allow the sensor to be configured for switching or window-monitoring tasks. The integrated display simplifies adjustment directly on the machine. These features make it useful for automated production and assembly processes.
| Specification | OGD596 |
|---|---|
| Product Type | Photoelectric distance sensor |
| Order Code | OGD596 |
| Measuring Range | 0.025...0.3 m |
| Detection Range | 25...300 mm |
| Background Suppression | 0.03...19.2 m |
| Light Type | Red laser |
| Wavelength | 650 nm |
| Laser Class | 1 |
| Light Spot Width | 3 mm |
| Light Spot Height | 3 mm |
| Sampling Rate | 33 Hz |
| Electrical Design | PNP |
| Supply Voltage | 10...30 V DC |
| Current Consumption | <75 mA at 24 V |
| Protection Class | III |
| Reverse Polarity | Yes |
| Digital Outputs | 2 |
| Output Function | NO/NC/window/OFF |
| Output Current | 100 mA/output |
| Short-Circuit Protection | Pulsed |
| Overload Protection | Yes |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| Minimum Cycle Time | 5 ms |
| Device ID | 1066 default |
| Display | 3-digit alphanumeric |
| Connection | M12, 5-pin |
| Housing | Stainless steel |
| Dimensions | 61.7 × 22.5 × 45.2 mm |
| Thread | M18 × 1 |
| Protection | IP65/IP67 |
| Ambient Temperature | -25...50 °C |
