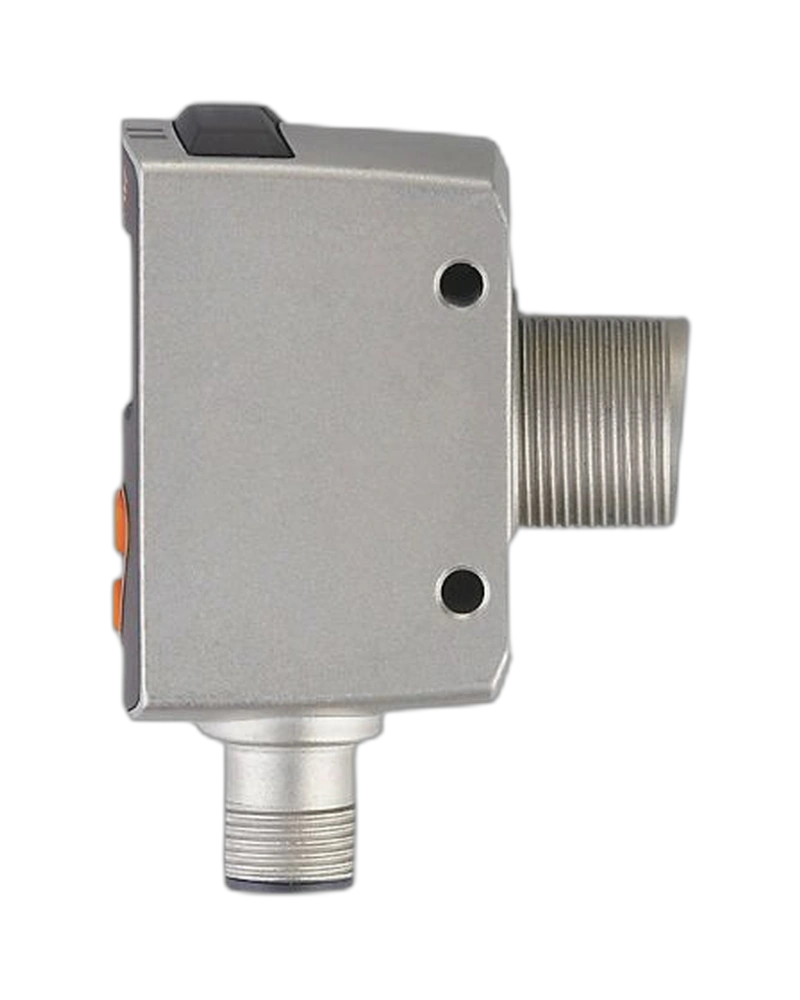

The IFM OGD592 is a precision photoelectric distance sensor designed for measurement from 25 to 300 mm. It uses a focused 650 nm red laser with a Class 1 laser classification. Two complementary PNP outputs provide flexible switching control. The stainless-steel housing provides IP65/IP67 protection for industrial applications. Its compact M12-connected design supports accurate object-distance monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The OGD592 measures targets between 25 and 300 mm. Its focused spot is approximately 1 mm at 150 mm. The sensor provides a 33 Hz sampling rate. The measurement principle provides reliable detection across industrial objects. This makes it suitable for precise short-range distance measurement.
The sensor uses two PNP outputs with light-on/dark-on selection. Each output supports up to 100 mA. Switching frequency reaches 11 Hz. Pulsed short-circuit and overload protection are provided. These outputs support direct machine-control integration.
The OGD592 uses a stainless-steel housing with IP65/IP67 protection. A 650 nm red laser provides the optical signal. The sensor uses an M12 connector. Two yellow LEDs indicate switching status. The compact construction supports industrial factory automation.
25...300 mm measuring range
650 nm red laser
Laser class 1
1 mm focused spot at 150 mm
PNP output
Two complementary outputs
100 mA per output
11 Hz switching frequency
33 Hz sampling rate
M12 connector
Stainless-steel housing
IP65/IP67
Background suppression
Short-circuit protection
Overload protection
Object detection
Precision distance measurement
Position monitoring
Conveyor systems
Packaging machinery
Assembly equipment
Factory automation
Machine positioning
Quality inspection
Production monitoring
The focused optical spot allows accurate target positioning. The 25...300 mm range covers short-distance machine-monitoring tasks. Background suppression reduces interference from objects behind the target. The PNP outputs provide direct switching signals. This makes the OGD592 useful for precise industrial sensing.
| Specification | OGD592 |
|---|---|
| Product Type | Photoelectric distance sensor |
| Model | OGD592 |
| Measuring Range | 25...300 mm |
| Setting Range | 25...300 mm |
| Sensing Principle | PMD distance measurement |
| Light Type | Red laser |
| Wavelength | 650 nm |
| Laser Class | 1 |
| Focused Spot | 1 mm at 150 mm |
| Sampling Rate | 33 Hz |
| Switching Frequency | 11 Hz |
| Electrical Design | PNP |
| Output Function | Light-on/dark-on selectable |
| Digital Outputs | 2 |
| Output Type | Complementary |
| Output Current | 2 × 100 mA |
| Supply Voltage | 10...30 V DC |
| Current Consumption | 75 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Short-Circuit Protection | Pulsed |
| Overload Protection | Yes |
| Background Suppression | Up to 19.2 m |
| Extraneous Light Immunity | 10 klx |
| Housing | Stainless steel |
| Protection | IP65/IP67 |
| Connection | M12 |
| Status LEDs | 2 yellow |
| Ambient Temperature | -25...50 °C |
| Housing Type | Cylindrical |
