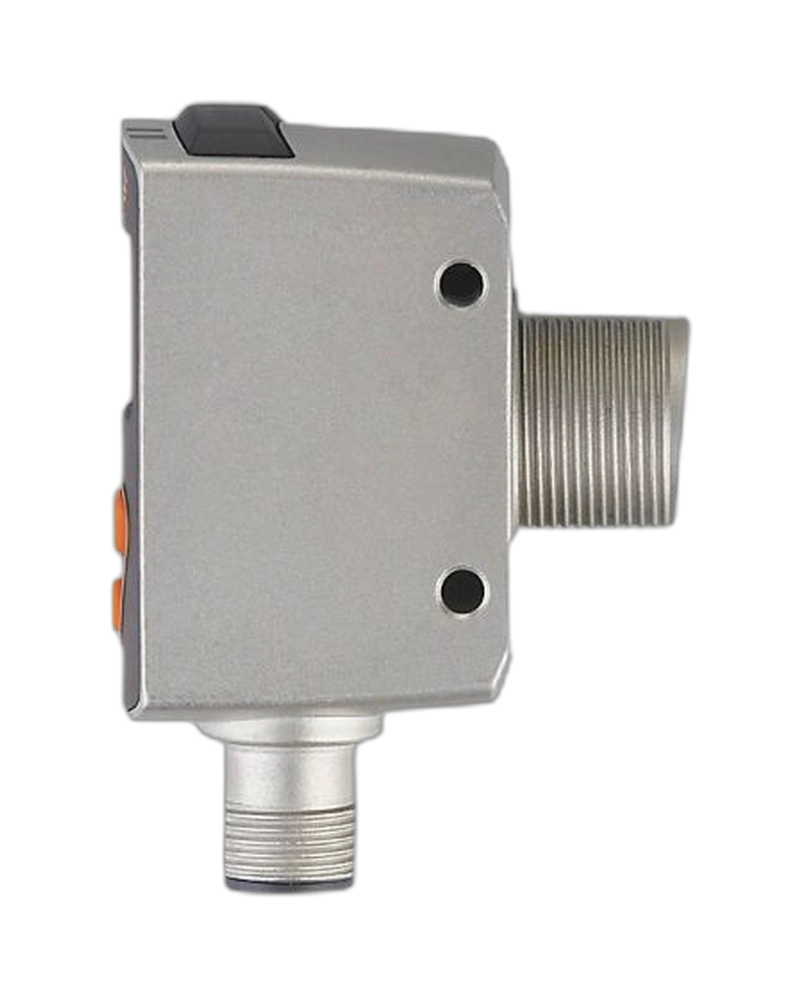

The IFM OGD585 is a laser distance sensor designed for measurement from 0.025 to 1.5 m. It combines a compact stainless-steel housing with IO-Link communication and programmable switching outputs. The sensor uses red laser light and background suppression for reliable object detection. A three-digit display and programming buttons simplify local setup. Its IP65/IP67 protection supports industrial applications requiring reliable distance measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The OGD585 provides a 25 mm to 1.5 m measuring range. Its background suppression extends to approximately 20 m, helping reduce interference from background surfaces. The laser produces a maximum 5 mm light spot at the maximum range. The 33 Hz sampling rate provides regular distance measurements for automation processes. These characteristics support accurate object and position detection.
The sensor uses PNP electrical design with two programmable switching outputs. Each output can be configured as normally open or normally closed. Each output can handle up to 100 mA. Pulsed short-circuit protection and overload protection provide additional electrical safety. This makes the OGD585 suitable for direct integration into PLC-controlled machines.
The OGD585 supports IO-Link 1.1 through a COM2 interface operating at 38.4 kBaud. Process values and diagnostic information can be transferred digitally to the control system. The integrated three-digit display provides local indication. Programming buttons allow direct adjustment of sensor settings. These functions simplify commissioning and service operations.
0.025...1.5 m measuring range
Red laser light
Laser class 1
Background suppression
Three-digit display
Programming buttons
Two PNP outputs
NO/NC programmable
IO-Link 1.1
33 Hz sampling
M12 connector
Stainless-steel housing
M18 × 1 thread
IP65/IP67
Short-circuit protection
Object detection
Distance measurement
Factory automation
Conveyor systems
Packaging machinery
Material handling
Machine positioning
Production monitoring
Industrial automation
Process control
The OGD585 is built for industrial automation where compact construction and reliable optical measurement are required. Its stainless-steel housing supports demanding environmental conditions. IP65/IP67 protection helps protect against dust and water exposure. The integrated display makes setup easier at the machine. IO-Link provides additional digital access to parameters and diagnostics.
| Specification | OGD585 |
|---|---|
| Product Type | Photoelectric distance sensor |
| Order Code | OGD585 |
| Measuring Range | 0.025...1.5 m |
| Range | Up to 1.5 m |
| Background Suppression | 0.03...20 m |
| Light Type | Red laser |
| Wavelength | 650 nm |
| Laser Class | 1 |
| Light Spot | 5 mm max. |
| Sampling Rate | 33 Hz |
| Electrical Design | PNP |
| Supply Voltage | 10...30 V DC |
| Current Consumption | <75 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Digital Outputs | 2 |
| Output Function | NO/NC programmable |
| Output Current | 100 mA/output |
| Switching Frequency | 11 Hz |
| Short-Circuit Protection | Pulsed |
| Overload Protection | Yes |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| Process Cycle | 6 ms |
| Connection | M12 |
| Housing | Stainless steel |
| Dimensions | 61.7 × 22.5 × 45.2 mm |
| Thread | M18 × 1 |
| Protection | IP65/IP67 |
| Ambient Temperature | -25...60 °C |
