The IFM OGD583 is a compact laser distance sensor with a 0.08...1.5 m measuring range. It uses red laser light, a three-digit display, and programmable switching outputs for machine monitoring. IO-Link provides process values, diagnostics, and parameterisation through an industrial communication interface. Its stainless-steel construction and IP65/IP67 protection support demanding industrial installations. The sensor is particularly suited to object detection, distance monitoring, and factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The OGD583 measures distances from 0.08 to 1.5 m. Its setting range extends from 0.085 to 1.5 m and supports objects with reflectivity from 6% to 900%. A red 650 nm laser provides a visible measurement reference. The maximum light spot diameter is 5 mm at the maximum range. These characteristics provide accurate target detection for industrial automation.
A three-digit alphanumeric display provides direct access to sensor information. Programming buttons allow local configuration of switching and measurement parameters. Two programmable PNP outputs can be configured for normally open or normally closed operation. The sensor also includes a laser on/off input. These functions simplify machine commissioning and operating-status monitoring.
The OGD583 uses IO-Link 1.1 with COM2 transmission at 38.4 kBaud. Cyclic process data includes two 16-bit process values, device status, and switching information. A minimum process cycle time of 5 ms provides fast digital communication. Acyclic functions include operating-hours and switching-cycle counters. This provides useful information for predictive maintenance and sensor diagnostics.
0.08...1.5 m measuring range
650 nm red laser
Laser class 1
Three-digit display
Programming buttons
PNP outputs
Two programmable switching outputs
IO-Link 1.1
COM2 communication
5 ms minimum cycle
Laser on/off input
Stainless-steel housing
M18 thread
IP65/IP67
Background suppression
Factory automation
Object detection
Distance measurement
Position monitoring
Conveyor systems
Packaging machines
Material handling
Production-line monitoring
Machine automation
Industrial process control

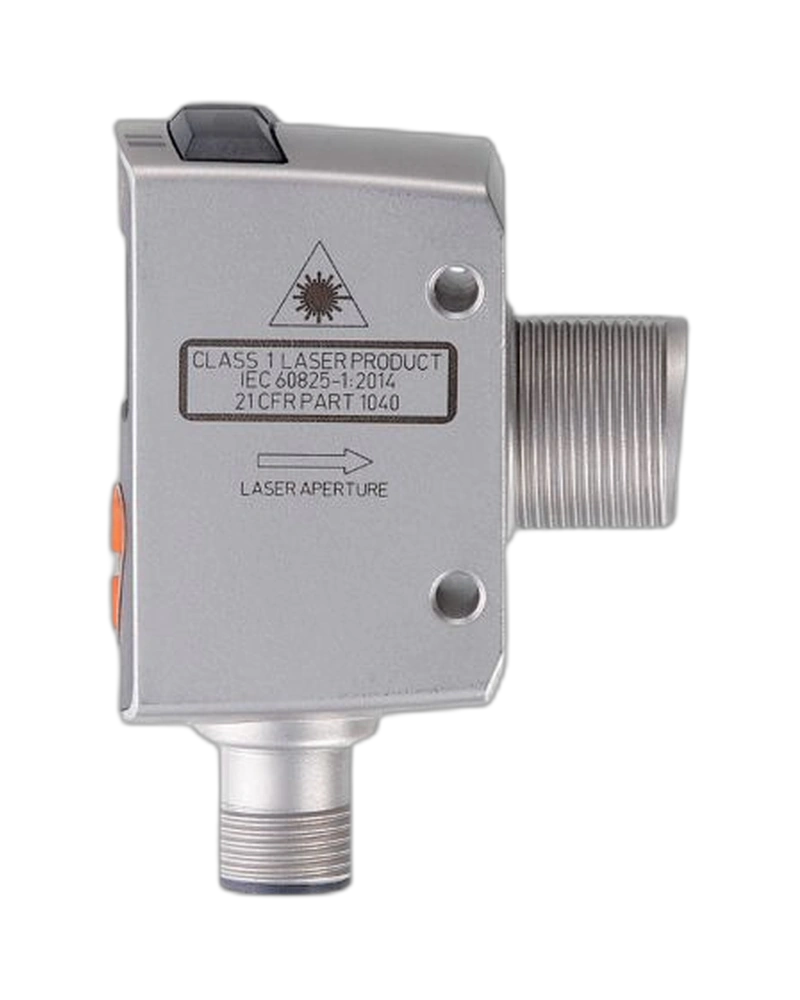

The OGD583 uses a stainless-steel housing and protected optical construction. IP65 and IP67 protection provide resistance to dust and water exposure. The compact M18-threaded housing simplifies mechanical installation. Its laser system supports precise distance measurement within the specified range. These characteristics make it suitable for industrial machine environments.
| Specification | OGD583 |
|---|---|
| Product Type | Photoelectric distance sensor |
| Order Code | OGD583 |
| Measuring Range | 0.08...1.5 m |
| Setting Range | 0.085...1.5 m |
| Reflectivity Range | 6...900% |
| Light Type | Red laser |
| Wavelength | 650 nm |
| Laser Class | 1 |
| Maximum Light Spot | 5 mm |
| Background Suppression | <20 m |
| Sampling Rate | 33 Hz |
| Electrical Design | PNP |
| Supply Voltage | 10...30 V DC |
| Current Consumption | <75 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Digital Outputs | 2 |
| Output Function | NO/NC programmable |
| Output Current | 100 mA/output |
| Switching Frequency | 11 Hz |
| Short-Circuit Protection | Pulsed |
| Overload Protection | Yes |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| Minimum Cycle Time | 5 ms |
| Connection | M12 |
| Housing | Stainless steel |
| Dimensions | 61.7 × 22.5 × 45.2 mm |
| Protection | IP65/IP67 |
