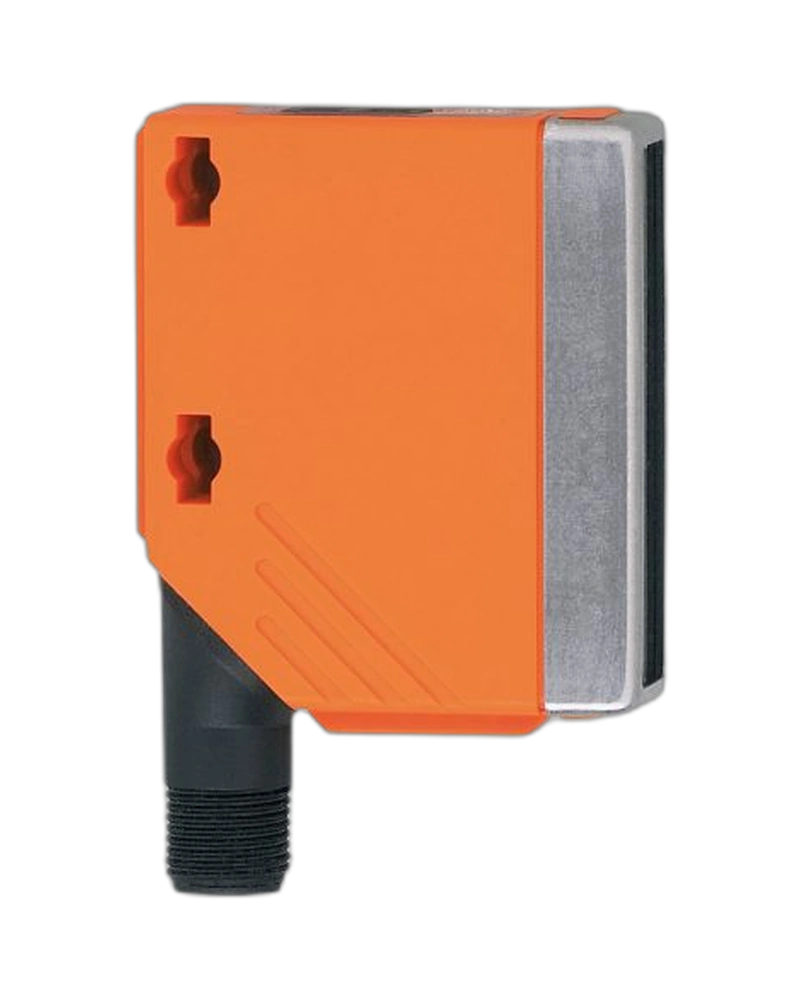

The IFM O5D151 is a compact photoelectric distance sensor designed for measurement from 0.03 to 2 m. It uses a Class 1 laser and background suppression for reliable target detection. Two PNP digital outputs can be configured as normally open or normally closed. IO-Link provides process-data communication and parameterisation. The sensor combines compact construction, display functionality, and industrial IP65/IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The O5D151 provides a 0.03...2 m measuring range with a 33 Hz sampling rate. Background suppression extends to less than 20 m. The sensor uses red laser light with a maximum 5 mm light spot at 2 m. Detection hysteresis is specified below 4% under the stated black-target condition. This enables reliable distance and object monitoring in industrial machines.
The sensor uses PNP output technology with two digital outputs. Each output can be configured for normally open or normally closed operation. Each output supports a maximum current load of 100 mA. Pulsed short-circuit protection and overload protection improve electrical reliability. These outputs allow direct connection to suitable PLC inputs and automation controllers.
IO-Link COM2 provides parameterisation and process-data exchange. The Smart Sensor profile supports device identification, process values, and diagnostic information. The sensor has a four-digit alphanumeric display for distance values and programming. Programming buttons provide local adjustment of operating parameters. This combination improves commissioning and maintenance efficiency.
0.03...2 m measuring range
Class 1 laser
Red laser light
Background suppression
Two PNP outputs
NO/NC output configuration
100 mA output load
IO-Link COM2
Four-digit display
Programming buttons
33 Hz sampling rate
IP65/IP67
M12 connector
Short-circuit protection
Overload protection
Object detection
Distance monitoring
Conveyor automation
Packaging machines
Material handling
Position monitoring
Production machinery
Industrial automation
Machine setup
Process monitoring
The O5D151 provides both local configuration and digital communication. Its display allows operators to view distance information without additional equipment. IO-Link makes sensor parameters accessible from the control system. Digital outputs provide direct switching signals for machine control. This combination supports efficient commissioning and ongoing machine monitoring.
| Specification | O5D151 |
|---|---|
| Product Type | Photoelectric distance sensor |
| Order Code | O5D151 |
| Measuring Range | 0.03...2 m |
| Background Suppression | <20 m |
| Light Type | Red laser |
| Laser Class | 1 |
| Maximum Light Spot | 5 mm at 2 m |
| Sampling Rate | 33 Hz |
| Electrical Design | PNP |
| Digital Outputs | 2 |
| Output Function | NO/NC complementary |
| Maximum Output Current | 100 mA |
| Switching Frequency | 11 Hz |
| Short-Circuit Protection | Pulsed |
| Overload Protection | Yes |
| Supply Voltage | 10...30 V DC |
| Protection Class | III |
| Reverse Polarity | Yes |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| SIO Mode | Yes |
| Process Data Analogue | 1 |
| Process Data Binary | 1 |
| Minimum Cycle Time | 6.4 ms |
| Device ID | 393 default |
| Ambient Temperature | -25...60 °C |
| Protection | IP65/IP67 |
| Connection | M12 |
| Display | 4-digit alphanumeric |
