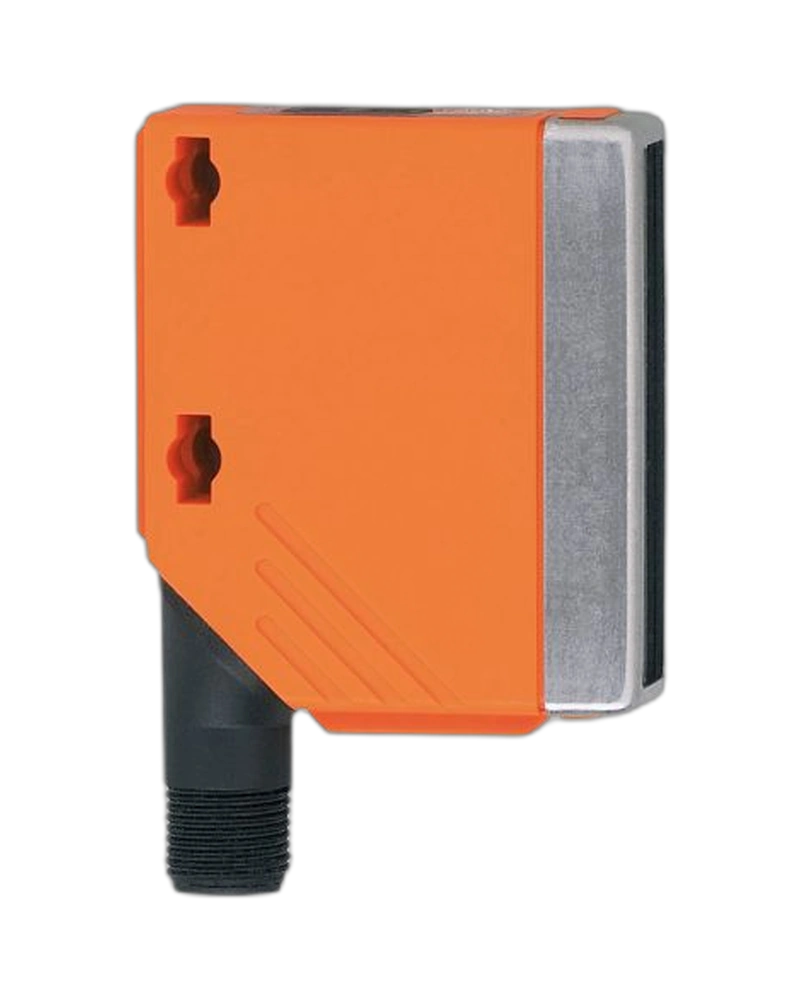

The IFM O5D150 is a compact laser distance sensor with a 0.03...2 m measuring range. It uses a Class 1 red laser for background-suppressed distance measurement. The sensor provides complementary PNP switching outputs and an integrated three-digit display. Pushbuttons simplify direct adjustment of the switching distance. IP65/IP67 protection and an M12 connection support industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The O5D150 measures distances from 0.03 to 2 m. Background suppression extends to approximately 20 m. Its laser spot is below 5 mm at maximum range. The sensor provides a 33 Hz sampling rate. This supports reliable object and distance detection.
A three-digit alphanumeric display provides local distance information. Range-plus and range-minus buttons allow switching-point adjustment. Yellow and green LEDs indicate switching and operating status. The display uses inch units on this version. This simplifies local machine setup.
The O5D150 supports IO-Link for parameterisation and process-data communication. Conventional SIO operation is also supported. Its PNP outputs provide complementary switching. The M12 connector provides a standard industrial connection. This makes the sensor suitable for modern control systems.
0.03...2 m range
Class 1 laser
Red 650 nm light
Background suppression
PNP output
Complementary switching
Three-digit display
Pushbuttons
IO-Link
33 Hz sampling
M12 connector
IP65/IP67
10...30 V DC
100 mA output
Stainless-steel bezel
Distance monitoring
Object detection
Conveyor systems
Packaging machinery
Material handling
Position monitoring
Assembly machines
Factory automation
Production monitoring
Machine control
The integrated display provides direct access to measured distance information. This reduces the need for an external display during commissioning. Pushbuttons allow switching-point adjustment at the machine. IO-Link provides additional controller-based configuration. These functions simplify setup and maintenance.
| Specification | O5D150 |
|---|---|
| Product Type | Photoelectric distance sensor |
| Model | O5D150 |
| Product Code | O5DLCPKG/US |
| Measuring Range | 0.03...2 m |
| Background Suppression | Up to 20 m |
| Light Type | Red |
| Wavelength | 650 nm |
| Laser Class | 1 |
| Light Spot | <5 mm |
| Sampling Rate | 33 Hz |
| Electrical Design | PNP |
| Output Function | NO/NC complementary |
| Digital Outputs | 2 |
| Output Current | 100 mA/output |
| Supply Voltage | 10...30 V DC |
| Current Consumption | 75 mA at 24 V |
| Protection Class | III |
| Reverse Polarity | Yes |
| Short-Circuit Protection | Pulsed |
| Overload Protection | Yes |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| SIO Mode | Yes |
| Display | 3-digit alphanumeric |
| Display Unit | Inch |
| Connection | M12 |
| Housing | PA |
| Bezel | Stainless steel |
| Protection | IP65/IP67 |
| Ambient Temperature | -25...60 °C |
