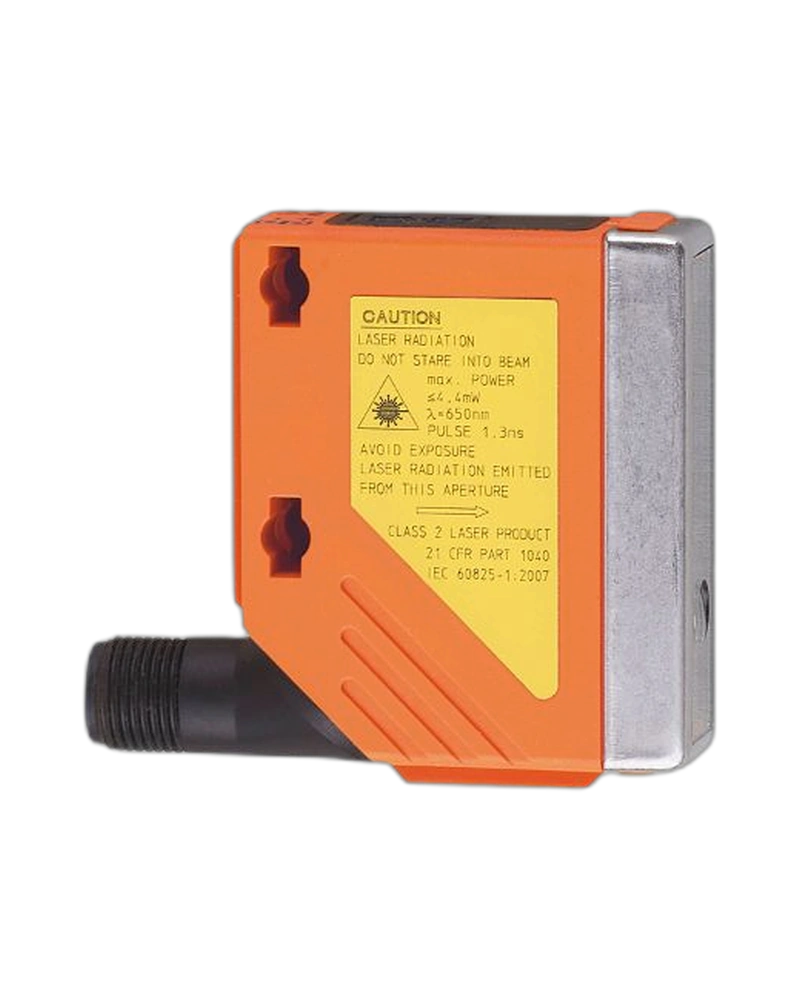

The IFM O5D101 is a laser distance sensor with a 0.03...2 m measuring range and inch display. It uses a Class 2 red laser and background suppression up to 20 m. Two complementary PNP outputs provide machine-control signals. A three-digit alphanumeric display supports local measurement and adjustment. IO-Link communication and IP65/IP67 protection provide modern industrial integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The O5D101 measures distances between 0.03 and 2 m. Background suppression extends up to 20 m. Its red 650 nm laser produces a controlled optical measurement beam. The sampling rate reaches 33 Hz. These functions support reliable object-distance monitoring.
The three-digit display presents the measured distance and settings. Range-plus and range-minus controls provide local adjustment. The display unit is configured for inches. Yellow and green LEDs indicate sensor status. This makes commissioning easier.
Two complementary PNP outputs provide switching information. IO-Link enables parameterisation and diagnostic communication. SIO mode supports conventional operation. The M12 connector provides a compact industrial connection. These features support flexible machine integration.
0.03...2 m range
Class 2 laser
650 nm red light
Background suppression up to 20 m
PNP outputs
Complementary switching
Three-digit display
Inch display
IO-Link 1.1
COM2 38.4 kBaud
33 Hz sampling
M12 connector
IP65/IP67
100 mA outputs
10...30 V DC
Distance monitoring
Object detection
Conveyor automation
Packaging machinery
Material handling
Position control
Assembly systems
Factory automation
Machine monitoring
Production lines
The display and buttons provide convenient sensor adjustment at the machine. This reduces dependency on external programming equipment during installation. The visible laser assists alignment. IO-Link provides additional digital configuration. These functions improve commissioning efficiency.
| Specification | O5D101 |
|---|---|
| Product Type | Photoelectric distance sensor |
| Model | O5D101 |
| Product Code | O5DLCPKG/US |
| Measuring Range | 0.03...2 m |
| Background Suppression | <20 m |
| Light Type | Red |
| Wavelength | 650 nm |
| Laser Class | 2 |
| Light Spot | <5 mm at 2 m |
| Sampling Rate | 33 Hz |
| Electrical Design | PNP |
| Output Function | Complementary NO/NC |
| Digital Outputs | 2 |
| Output Current | 100 mA/output |
| Supply Voltage | 10...30 V DC |
| Current Consumption | <75 mA at 24 V |
| Protection Class | III |
| Reverse Polarity | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| SIO Mode | Yes |
| Process Cycle | 6.6 ms |
| Device ID | 393 default |
| Display | 3-digit alphanumeric |
| Display Unit | Inch |
| Connection | M12, 4-pin |
| Housing | PA |
| Protection | IP65/IP67 |
| Ambient Temperature | -25...60 °C |
