Long-Range Measurement

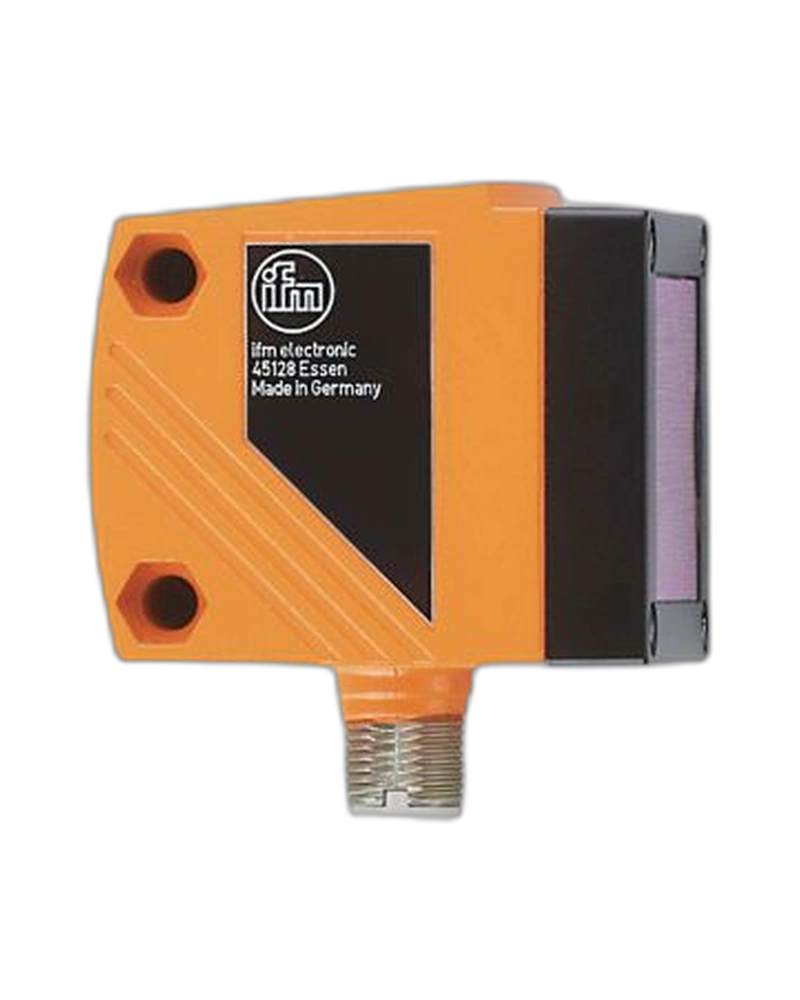

The O1D209 is designed for optical distance measurement from 1 to 100 m when used with a suitable reflector. The long measurement range makes it particularly useful for cranes, hoists, conveyors, and large machine structures. Background suppression and controlled optical measurement help provide reliable target detection. The sensor can accommodate long-distance positioning requirements without requiring multiple short-range sensors. This makes it useful where large machine travel distances must be monitored.

Programmable Outputs

The O1D209 provides two digital outputs with programmable normally open and normally closed functions. One output can also be configured as an analogue signal. The analogue channel provides 4...20 mA or 0...10 V transmission. This allows both switching control and continuous distance monitoring from the same sensor. IO-Link further expands configuration and diagnostic capabilities.

Industrial Construction

The sensor uses a metal housing with IP67 protection for industrial installations. Its M12 connector simplifies connection to standard industrial cabling. The laser system provides a visible measurement beam for convenient alignment. A four-digit display and programming controls provide local access to operating information. The combination is particularly useful for machine positioning and material-handling equipment.

Key Features

1...100 m measuring range with reflector

Laser distance measurement

Laser protection class 2

PNP output

Two programmable outputs

4...20 mA analogue output

0...10 V analogue output

IO-Link communication

Background suppression

Four-digit display

M12 connector

IP67 protection

18...30 V DC operation

Programmable switching thresholds

Adjustable measurement range

Applications

Crane positioning

Hoist position monitoring

Conveyor systems

Warehouse automation

Material handling

Stacker cranes

Large machine positioning

Travel-distance monitoring

Industrial automation

Machine position feedback

Long-Distance Position Control

The O1D209 is especially useful where the monitored machine or moving equipment travels over large distances. Its reflector-based operation allows reliable measurement across ranges that are significantly longer than conventional proximity sensors. The analogue output can transmit continuous distance information to a PLC or controller. Programmable switching outputs can additionally provide position-limit signals. This enables one sensor to support both measurement and machine-control functions.

Configuration and Communication

IO-Link allows the O1D209 to be configured without manually adjusting every parameter at the sensor. Process values and diagnostic information can be transferred to the automation controller. The analogue outputs provide compatibility with conventional control architectures. M12 connectivity supports straightforward industrial installation. These features make the sensor suitable for integrated positioning and monitoring systems.
