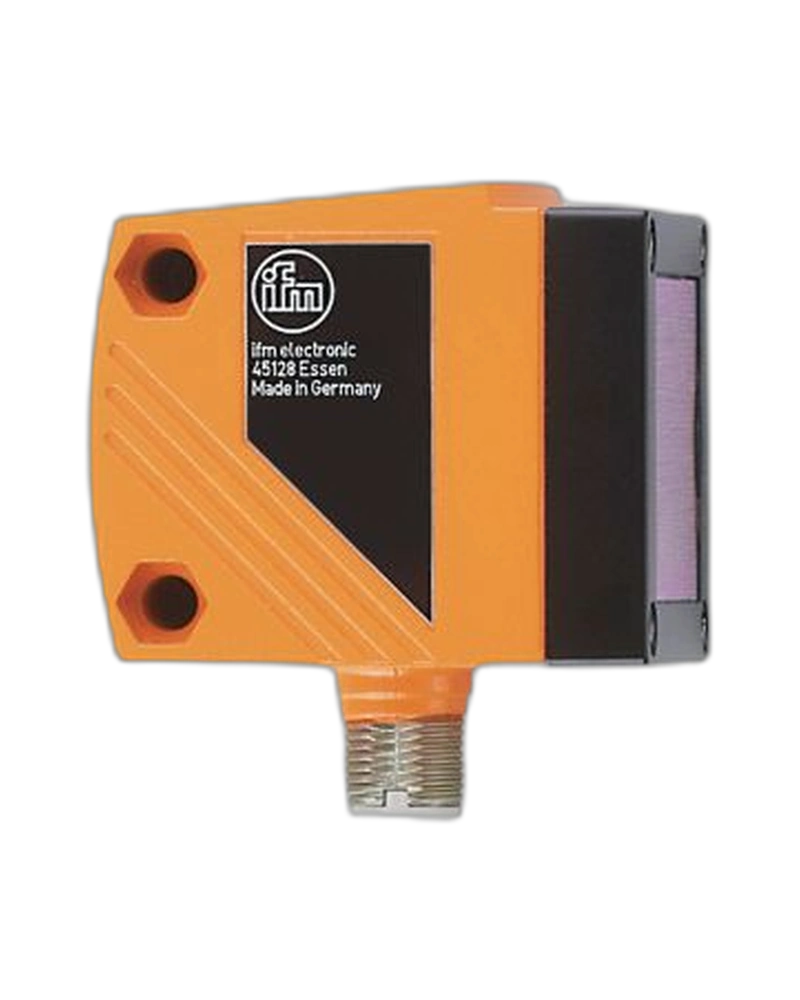

The IFM O1D120 is a PMD-based photoelectric distance sensor for precise measurement from 0.2 to 10 m. It uses a visible red laser and background suppression for reliable target detection. Two PNP switching outputs and one configurable analogue output provide flexible control options. A four-digit display allows direct viewing of distance values and programming information. IO-Link enables convenient parameterisation and diagnostics within modern automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The O1D120 measures distances between 0.2 and 10 m using PMD time-of-flight technology. The sensor can suppress background objects over a range of up to 19 m. A visible red laser spot assists with sensor alignment and commissioning. The measurement system is designed to provide reliable distance information across different target surfaces. It is therefore suitable for automated distance and position monitoring.
The O1D120 provides two programmable PNP digital outputs. One switching output can be configured as either a 4...20 mA or 0...10 V analogue output. The four-digit alphanumeric display indicates distance values and programming information. Yellow switching LEDs and a green operating LED provide additional status indication. This combination provides both local visibility and controller-level measurement.
The O1D120 supports IO-Link COM2 communication for parameterisation and process-data exchange. Its Smart Sensor profile provides identification, process-value, and diagnostic functions. The sensor can operate in SIO mode when conventional switching operation is required. A minimum process cycle time of approximately 6 ms supports automated data acquisition. This makes the O1D120 suitable for connected industrial automation systems.
0.2...10 m measuring range
PMD time-of-flight technology
PNP electrical design
Two programmable digital outputs
4...20 mA analogue output
0...10 V analogue output
Four-digit alphanumeric display
Background suppression
IO-Link COM2
Visible red laser
Laser class 2
M12 connector
IP67 protection
18...30 V DC supply
Adjustable sampling rate
Distance monitoring
Level measurement
Conveyor automation
Material handling
Position monitoring
Stack height detection
Packaging machines
Machine automation
Object detection
Industrial process monitoring
The O1D120 combines long-range optical measurement with configurable switching and analogue functions. The PMD system provides distance data without requiring a physical contact with the target. Background suppression helps maintain reliable detection when unwanted objects are located behind the target. The display provides immediate information during commissioning and maintenance. These characteristics support reliable automated measurement in industrial machinery.
IO-Link allows the O1D120 to exchange process values and diagnostic information with the machine controller. The sensor can be configured through connected automation software rather than relying only on local adjustment. Conventional switching operation remains available through SIO mode. M12 connectivity provides a standard industrial connection interface. This makes the sensor suitable for both conventional and Industry 4.0-oriented installations.
| Specification | O1D120 |
|---|---|
| Product Type | Photoelectric distance sensor |
| Order Code | O1D120 |
| Product Family | O1D |
| Sensing Principle | PMD time-of-flight |
| Measuring Range | 0.2...10 m |
| Target Reference | White paper, 90% remission |
| Background Suppression | 0...19 m |
| Light Spot | 15 × 15 mm at 10 m |
| Sampling Rate | 1...50 Hz |
| Light Type | Red laser |
| Wavelength | 650 nm |
| Laser Class | 2 |
| Electrical Design | PNP |
| Supply Voltage | 18...30 V DC |
| Current Consumption | <150 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Digital Outputs | 2 |
| Output Function | NO/NC programmable |
| Output Current | 200 mA per output |
| Analogue Outputs | 1 |
| Analogue Current | 4...20 mA |
| Analogue Voltage | 0...10 V |
| Maximum Current Load | 250 Ω |
| Minimum Voltage Load | 5 kΩ |
| Short-Circuit Protection | Pulsed |
| Overload Protection | Yes |
| Communication | IO-Link |
| IO-Link Type | COM2, 38.4 kBaud |
| Connection | M12 |
| Housing | Die-cast zinc |
| Protection Rating | IP67 |
| Ambient Temperature | -10...60 °C |
