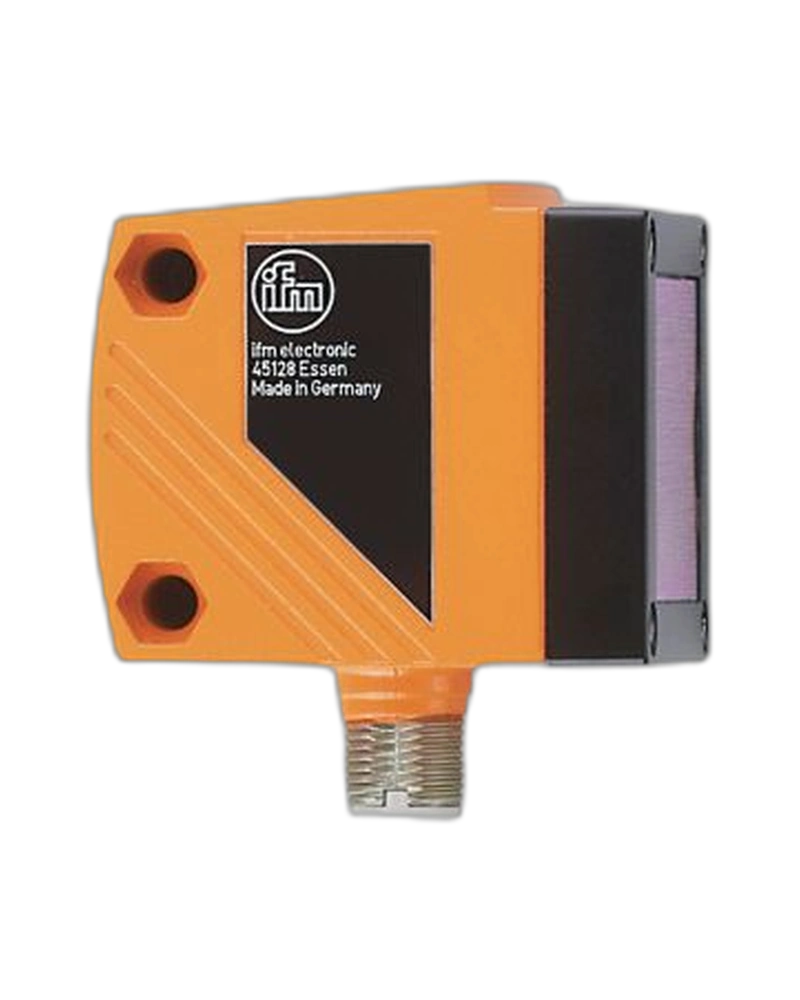

The IFM O1D100 is a long-range photoelectric distance sensor designed for measurements from 0.2 to 10 m. It uses a Class 2 red laser and PMD time-of-flight measurement. Two programmable PNP outputs are provided, with one output configurable as an analogue signal. IO-Link supports parameterisation, diagnostics, and process-data communication. The rectangular die-cast-zinc housing provides IP67 protection for industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The O1D100 provides a 0.2...10 m measuring range. Background suppression extends to approximately 19 m. Its sampling rate can be configured from 1 to 50 Hz. The laser spot remains controlled for long-range measurement. This makes the sensor suitable for large machine and material-handling systems.
The sensor has two PNP digital outputs. One output can be configured as 4...20 mA or 0...10 V analogue output. Digital outputs support up to 200 mA. Switching functions include normally open, normally closed, and window functions. This allows one sensor to provide both switching and continuous measurement.
IO-Link 1.1 provides digital communication with the automation controller. The sensor supports COM2 at 38.4 kBaud. Process data, diagnostics, identification, and teach functions are available. SIO mode supports conventional operation. This makes the O1D100 suitable for modern automation systems.
0.2...10 m measuring range
PMD time-of-flight
650 nm red laser
Laser class 2
Background suppression
Two PNP outputs
4...20 mA output
0...10 V output
IO-Link 1.1
Four-digit display
M12 connector
IP67
200 mA output
Programmable sampling rate
Die-cast zinc housing
Material level measurement
Conveyor monitoring
Coil-loop measurement
Stack height monitoring
Crane systems
Packaging equipment
Machine positioning
Factory automation
Material handling
Process monitoring
The O1D100 is suitable for applications requiring distance measurement across several metres. The scalable measuring range allows the analogue output to be adapted to the required distance window. Digital switching outputs provide additional limit signals. The display provides local measurement information. IO-Link adds digital configuration and diagnostic capabilities.
| Specification | O1D100 |
|---|---|
| Product Type | Photoelectric distance sensor |
| Model | O1D100 |
| Product Code | O1DLF3KG/IO-LINK |
| Measuring Range | 0.2...10 m |
| Target Reference | White paper 90% remission |
| Background Suppression | 0...19 m |
| Light Type | Red laser |
| Wavelength | 650 nm |
| Laser Class | 2 |
| Light Spot | <25 mm at 10 m |
| Sampling Rate | 1...50 Hz |
| Electrical Design | PNP |
| Digital Outputs | 2 |
| Output Function | NO/NC/window programmable |
| Output Current | 200 mA/output |
| Analogue Output | 1 |
| Analogue Current | 4...20 mA |
| Analogue Voltage | 0...10 V |
| Analogue Load | 250 Ω |
| Voltage Load | 5000 Ω minimum |
| Supply Voltage | 18...30 V DC |
| Current Consumption | <150 mA |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| Display | 4-digit alphanumeric |
| Connection | M12, 5-pin |
| Housing | Die-cast zinc |
| Dimensions | 59 × 42 × 52 mm |
| Protection | IP67 |
| Ambient Temperature | -10...60 °C |
