This industrial-grade product features a robust construction with a temperature range of -40°C to +120°C, a maximum static pressure of 25 bar, and a mechanical life of 106 cycles. It supports both brass and stainless steel 316 body options, ensuring reliable performance in demanding environments.
This product delivers reliable pressure regulation across a wide temperature range (-40°C to +120°C) and is designed to withstand demanding operational conditions with a maximum static pressure of 25 bar. Its mechanical life of 106 cycles ensures long-term durability, while the optional stainless steel 316 body construction provides enhanced corrosion resistance for harsh environments.
It operates within a temperature range of -40°C to +120°C and delivers a maximum cycle rate of 30 cycles per minute at 25°C. The product supports both brass and stainless steel 316 body options, with a mechanical life of 106 cycles. Power supply compatibility includes 12 Vdc, 24 Vdc, and 6 Vdc, with current ratings of 4 A at 24 Vdc, 8 A at 12 Vdc, and 15 A at 6 Vdc.
Available in two construction options: brass (zinc-plated steel) and stainless steel 316. The brass body provides cost-effective corrosion resistance, while the stainless steel 316 body ensures superior resistance to harsh chemicals and high-temperature environments. Both options are designed to meet the product's operational requirements and are suitable for a wide range of industrial applications.
30 (push-on terminals with IP 54 protection) and CAP. 31 (screw terminals with IP 54 protection). These configurations ensure secure and reliable electrical connections in industrial settings, with the IP 54 rating providing protection against dust and water ingress.
This pressure controller is designed for applications requiring precise pressure regulation in low-pressure systems. Its diaphragm-based mechanism ensures accurate pressure sensing and control, with a maximum cycle rate of 30 cycles per minute at 25°C. The product's ability to operate within a wide temperature range (-40°C to +120°C) makes it suitable for both indoor and outdoor industrial environments.

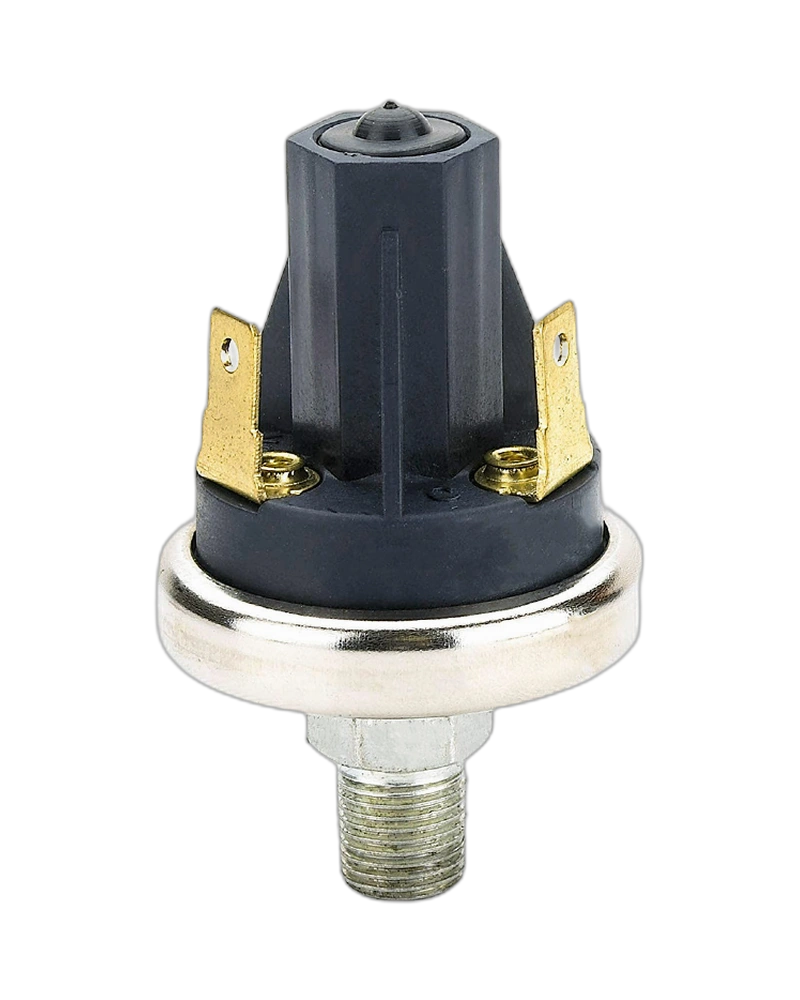

The PHC70ABN18KF - PHC - Adjustable pressure controllers for low pressure - PHC - Adjustable pressure controllers for low pressure is an industrial Pressure. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Voltage max. 240 Vac | Max. voltage 240 Vac |
| Current intensity resistiva 4 A @ 24 Vdc/8 A @ 12 Vdc/15 A @ 6 Vdc | Switching resistive currents 4 A @ 24 Vdc/8 A @ 12 Vdc/15 A @ 6 Vdc |
| Current intensity induttiva 0.5 A @ 240 Vac/1 A @ 120 Vac | Switching inductive currents 0.5 A @ 240 Vac/1 A @ 120 Vac |
| temperature range -40°C...+120°C | temperature range -40°C to +120°C |
| Max. n° di interventi a 25°C 30/1’ (membrana) | Max. cycle rate at 25°C 30/min. (diaphragm type) |
| Current maximum / Max. current | < 30 mA |
| ESEC. Body Brass BRASS BODY EXECUTION | ESEC. Body Stainless steel AISI 316 S.S. 316 BODY EXECUTION |
