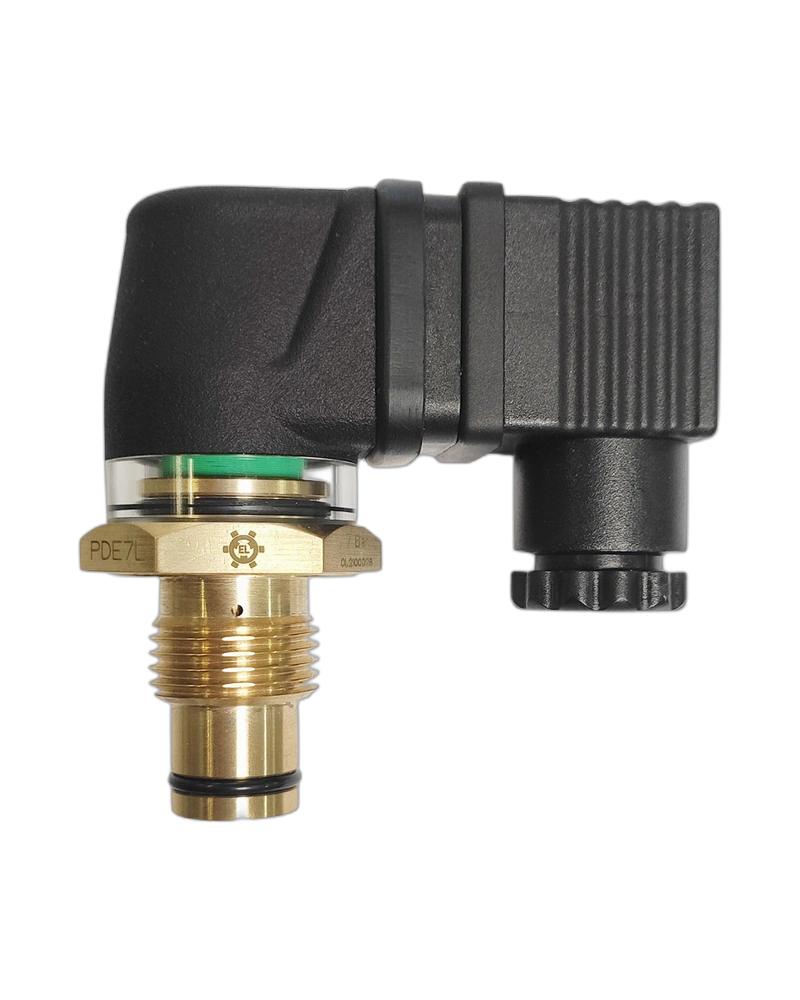

The ELETTROTEC PDE2LBVE1L220 Differential pressure switch -Clogging indicator is a precision instrument for monitoring fluid flow clogging in industrial systems. This pressure switch features a robust brass body with HNBR diaphragm/seal material, operating within a temperature range of -25°C to +140°C. It offers configurable differential pressure settings from 2 bar to 8 bar with a fixed differential of 30% of the set-point, making it ideal for applications requiring reliable clogging detection in high-pressure environments.
The ELETTROTEC PDE2LBVE1L220 Differential pressure switch -Clogging indicator is a specialized industrial instrument designed to detect fluid flow clogging by monitoring differential pressure changes. This switch operates within a wide temperature range (-25°C to +140°C) and features a brass body with HNBR diaphragm/seal material, ensuring durability and reliability in demanding applications. With configurable differential pressure settings ranging from 2 bar to 8 bar and a fixed differential of 30% of the set-point, it provides precise clogging detection for critical industrial processes where fluid flow integrity is essential.
The PDE2LBVE1L220 Differential pressure switch -Clogging indicator functions by detecting changes in differential pressure across a diaphragm. When fluid flow clogs, the differential pressure increases beyond the set-point, triggering the switch to open or close the contact. This mechanism ensures early detection of clogging events without requiring direct contact with the fluid, making it suitable for hazardous or high-pressure environments.
This switch operates within a temperature range of -25°C to +140°C, depending on the diaphragm/seal material. The maximum static pressure it can handle is 450 bar, ensuring suitability for high-pressure applications. It features a fixed differential of 30% of the set-point, which helps maintain consistent clogging detection accuracy. The switch supports multiple thread types including G1/2", M22 x 1.5, and M20 x 1.5 for versatile installation options.
The PDE2LBVE1L220 allows precise adjustment of differential pressure settings between 2 bar and 8 bar. The set point tolerance is +/- 10%, ensuring reliable performance across varying operating conditions. The fixed differential of 30% of the set-point provides a consistent margin for clogging detection, reducing false positives and improving system reliability.
This switch is rated for 1 A / 220 Vac, 3 A / 24 Vdc, and 7 A / 250 Vac, accommodating a range of electrical systems. The SPDT contact design ensures reliable switching operations while maintaining electrical safety standards. The CE certification confirms compliance with European safety regulations, making it suitable for international industrial applications.
The ELETTROTEC PDE2LBVE1L220- Differential pressure switch -Clogging indicator- Differential pressure switch -Clogging indicator is an industrial Pressure. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Switch rating | 1 A / 220 Vac – 3 A / 24 Vdc – 7 A / 250Vac |
| Settings ΔP | 2 bar – 5 bar – 7 bar – 8 bar |
| Max. static pressure | 450 bar |
| temperature tange | -25 °C +140 °C (according to diaphragm/seal material) |
| Threads | G1/2″ – M22 x 1.5 – M20 x 1.5 |
| Diaphragm/ Seal material | HNBR – FKM |
