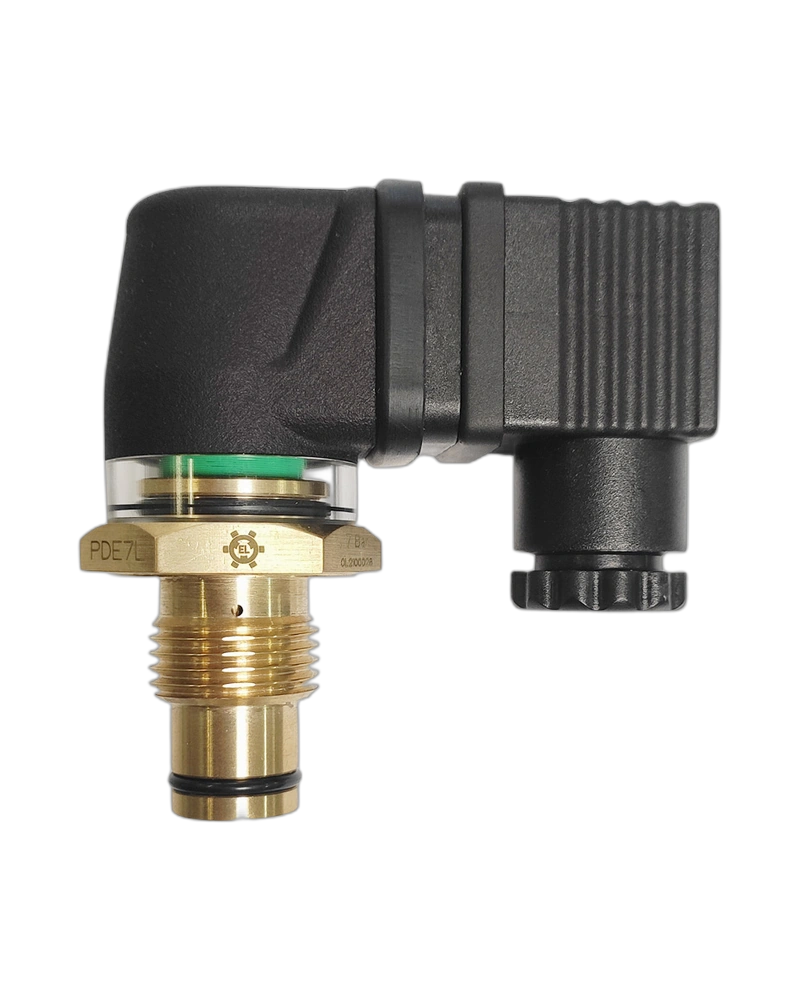

The ELETTROTEC PDE2LBVE1HM12 Differential pressure switch -Clogging indicator is a precision instrument for monitoring and detecting clogging in high-pressure systems. This pressure switch operates within a range of 2-8 bar differential pressure settings, features a robust brass body, and supports temperatures from -25°C to +140°C. Its compatibility with HNBR and FKM diaphragm materials ensures reliable performance in demanding industrial environments.
The ELETTROTEC PDE2LBVE1HM12 Differential pressure switch -Clogging indicator is a specialized industrial instrument designed to detect clogging events in fluid systems by monitoring differential pressure changes. This high-precision switch operates within a range of 2-8 bar differential pressure settings, with a maximum static pressure rating of 450 bar, making it suitable for critical applications where system integrity is paramount. Its robust construction, featuring a brass body and temperature-resistant HNBR or FKM diaphragm materials, ensures reliable operation across a wide temperature range from -25°C to +140°C. The switch's ability to detect clogging events through a fixed differential of 30% of the set-point provides critical early warning for maintenance, enhancing system reliability without disrupting production.
The PDE2LBVE1HM12 functions as a clogging indicator by monitoring the differential pressure between two points in a fluid system. When the differential pressure exceeds the set point by a fixed margin of 30% of the set-point value, the switch triggers an electrical signal to indicate potential clogging. This mechanism allows for early detection of blockages before they cause system failure, ensuring continuous operation in critical industrial processes.
The switch operates within a differential pressure range of 2-8 bar, with a maximum static pressure rating of 450 bar. It features a set point tolerance of +/- 10% and a fixed differential of 30% of the set-point value. The operating temperature range spans from -25°C to +140°C, depending on the diaphragm and seal materials used. Thread options include G1/2", M22 x 1.5, and M20 x 1.5, while the PDE2LBVE1HM12- Differential pressure switch -Clogging indicator is constructed from brass for durability.
The ELETTROTEC PDE2LBVE1HM12- Differential pressure switch -Clogging indicator- Differential pressure switch -Clogging indicator is compatible with HNBR and FKM diaphragm/seal materials, which provide excellent resistance to a wide range of fluids and temperatures. These materials ensure long-term performance in harsh industrial environments, from high-temperature processes to corrosive media, without compromising the switch's reliability or accuracy.
This differential pressure switch is ideal for applications where clogging detection is critical, such as in hydraulic systems, filtration processes, and high-pressure fluid handling. Its ability to operate within a wide temperature range and high static pressure makes it suitable for use in oil and gas, chemical processing, and manufacturing environments where system integrity must be maintained.
The ELETTROTEC PDE2LBVE1HM12- Differential pressure switch -Clogging indicator- Differential pressure switch -Clogging indicator is an industrial Pressure. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Settings ΔP | 2 bar – 5 bar – 7 bar – 8 bar |
| Max. static pressure | 450 bar |
| temperature tange | -25 °C +140 °C (according to diaphragm/seal material) |
| Threads | G1/2″ – M22 x 1.5 – M20 x 1.5 |
| voltage | 220 V |
| Diaphragm/ Seal material | HNBR – FKM |
| Housing Material | NBR contact NO |
