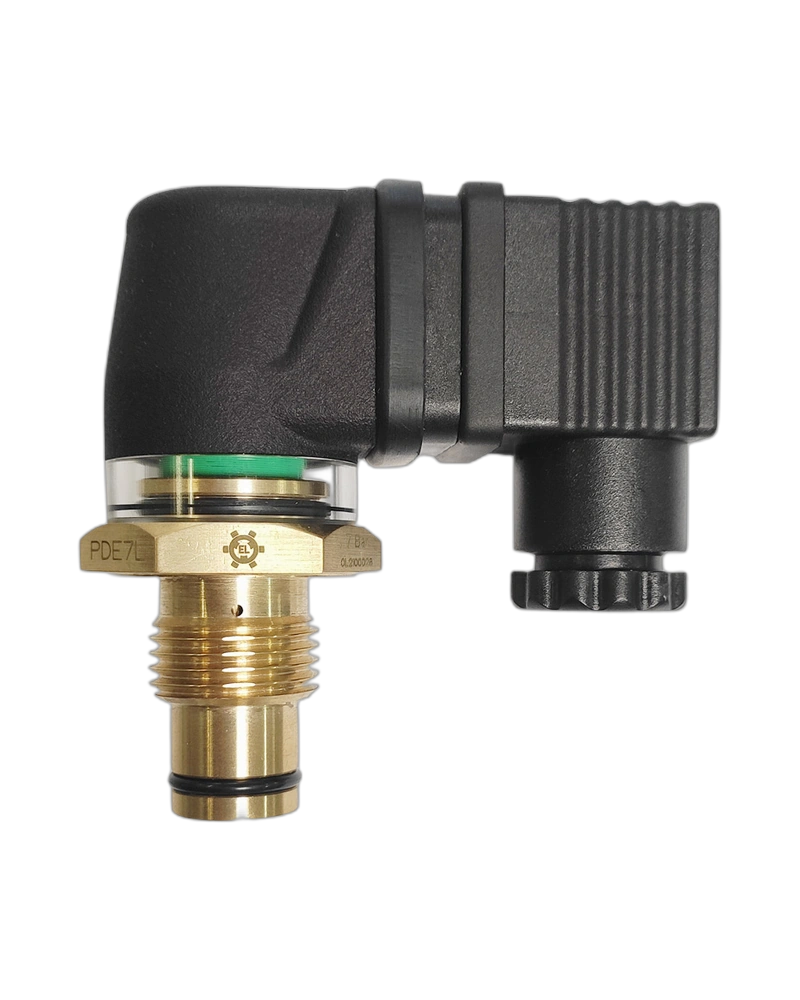

The ELETTROTEC PDE2LBVE1HL220 Differential pressure switch -Clogging indicator is a precision instrument for monitoring fluid flow clogging in industrial systems. This pressure switch features a robust brass body with HNBR diaphragm/seal material, operating within a temperature range of -25°C to +140°C. It offers switch ratings of 1 A / 220 Vac, 3 A / 24 Vdc, and 7 A / 250Vac, with set points adjustable between 2 bar and 8 bar for precise clogging detection in high-pressure applications up to 450 bar.
The ELETTROTEC PDE2LBVE1HL220 Differential pressure switch -Clogging indicator is a specialized industrial instrument designed to detect fluid flow clogging by monitoring differential pressure changes. This switch operates within a wide temperature range of -25°C to +140°C, utilizing a brass body and HNBR diaphragm/seal material to ensure reliable performance in demanding environments. With a maximum static pressure rating of 450 bar and switch ratings supporting 1 A / 220 Vac, 3 A / 24 Vdc, and 7 A / 250Vac, it provides precise clogging indication for critical industrial fluid systems where pressure stability is essential.
The PDE2LBVE1HL220 features a brass body with HNBR diaphragm/seal material, ensuring durability and chemical resistance. It operates within a temperature range of -25°C to +140°C, with a maximum static pressure rating of 450 bar. The switch provides set points adjustable between 2 bar and 8 bar, with a fixed differential of 30% of the set-point value. It supports switch ratings of 1 A / 220 Vac, 3 A / 24 Vdc, and 7 A / 250Vac, and is CE certified for safety compliance.
This differential pressure switch is ideal for detecting clogging in industrial fluid systems such as water treatment, chemical processing, and oil and gas applications. Its high-pressure tolerance and temperature range make it suitable for environments where fluid flow restrictions can impact system efficiency or safety. The switch's ability to operate within a wide temperature range ensures reliability in both extreme cold and high-heat conditions.
The PDE2LBVE1HL220 offers multiple thread options including G1/2″, M22 x 1.5, and M20 x 1.5, facilitating easy integration into various piping systems. Its SPDT contact configuration allows for straightforward electrical connections with compatible control systems. The switch's CE certification ensures it meets international safety standards for industrial use in the UAE market.
The ELETTROTEC PDE2LBVE1HL220- Differential pressure switch -Clogging indicator- Differential pressure switch -Clogging indicator is an industrial Pressure. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Switch rating | 1 A / 220 Vac – 3 A / 24 Vdc – 7 A / 250Vac |
| Settings ΔP | 2 bar – 5 bar – 7 bar – 8 bar |
| Max. static pressure | 450 bar |
| temperature tange | -25 °C +140 °C (according to diaphragm/seal material) |
| Threads | G1/2″ – M22 x 1.5 – M20 x 1.5 |
| Diaphragm/ Seal material | HNBR – FKM |
