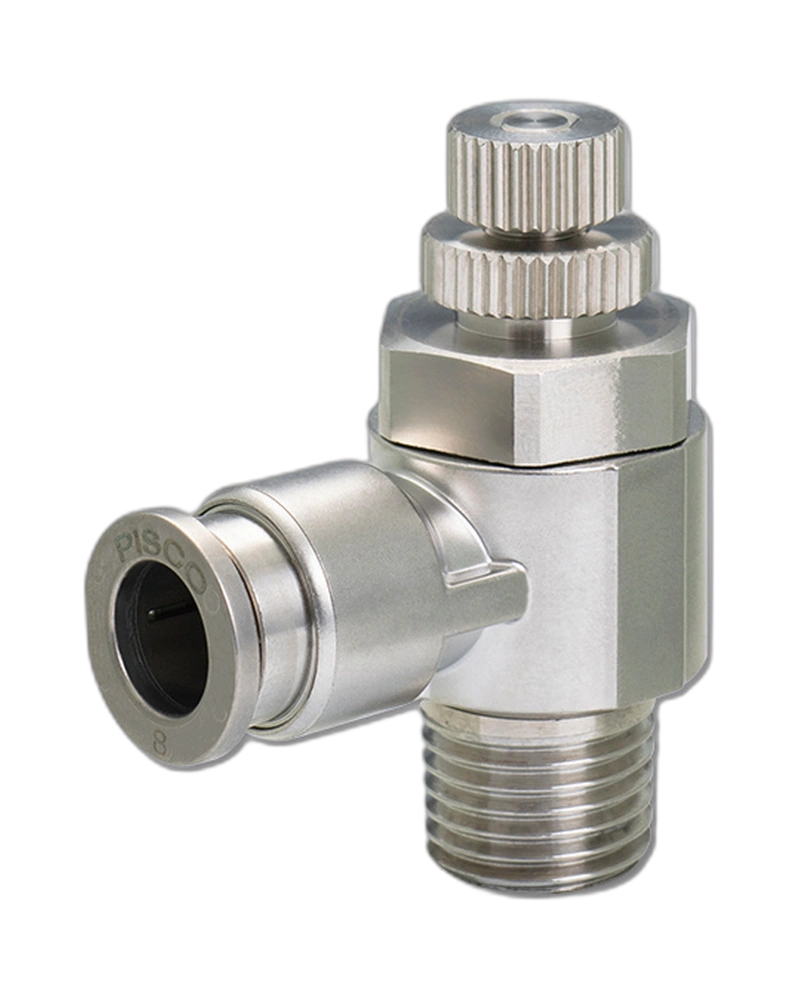

The Needle Valve SUS316 Stainless Steel is a precision flow control valve designed for accurate regulation of fluid flow in demanding industrial environments. It features a fine-tipped needle mechanism that enables precise adjustment of flow rates, making it ideal for applications requiring tight control over air, water, or compatible chemicals.
The valve body and all external components are constructed from SUS316 stainless steel, known for its excellent corrosion resistance. No copper-based metallic materials are used in the flow path, ensuring compatibility with aggressive chemical environments and eliminating potential contamination risks.
The valve connects via standard taper pipe male threads including R1/8, R1/4, R3/8, and R1/2, allowing for seamless integration into existing piping systems. The internal sealing is achieved using FKM (a fluorocarbon rubber) which provides superior resistance to heat, chemicals, and ozone exposure.
The needle valve operates within a maximum pressure range of 1.0MPa and can handle vacuum conditions down to -100kPa. It is suitable for use across a temperature range from -5°C to 150°C, with no freezing risk under normal operating conditions.
Available in metric sizes φ4, φ6, φ8, φ10, φ12, and φ16, the valve offers flexibility to match various system requirements. All variants are manufactured using non-grease, oil-free assembly methods and are packaged in a clean room environment with fluorine grease applied for protection.
The valve is designed with a lock-claw mechanism similar to that found in tube fittings, enabling easy and reliable release when disassembling or replacing components. This ensures smooth operation during maintenance and integration into automated or manual flow control systems.
| Specification | Details |
|---|---|
| Fluid medium | Air, Water, Other chemicals (Proviso) |
| Max. operating pressure | 1.0MPa |
| Vacuum | -100kPa |
| Operating temperature range | -5 to 150℃ (No freezing) |
| Metric size (mm) | φ4, φ6, φ8, φ10, φ12, φ16 |
| Taper pipe male thread | R1/8, R1/4, R3/8, R1/2 |
| Construction / connection | The same lock-claw mechanism as tube fittings is used, providing excellent operability when releasing the tube |
| Construction / connection | The same lock-claws system as tube fitting is adopted |
| Main metal material | SUS316 |
| Material restriction | No copper-based metallic material is used in flow paths |
| Oil-free specification | Non-grease oil-free specifications No lubrication is used during assembly |
| Clean-room specification | Clean-room package specification Fluorine grease is used as grease, and the product is packaged in a clean room after cleaning with clean air |
| Compliance / certification | Every part of the product is compliant with the Food Sanitation Act |
