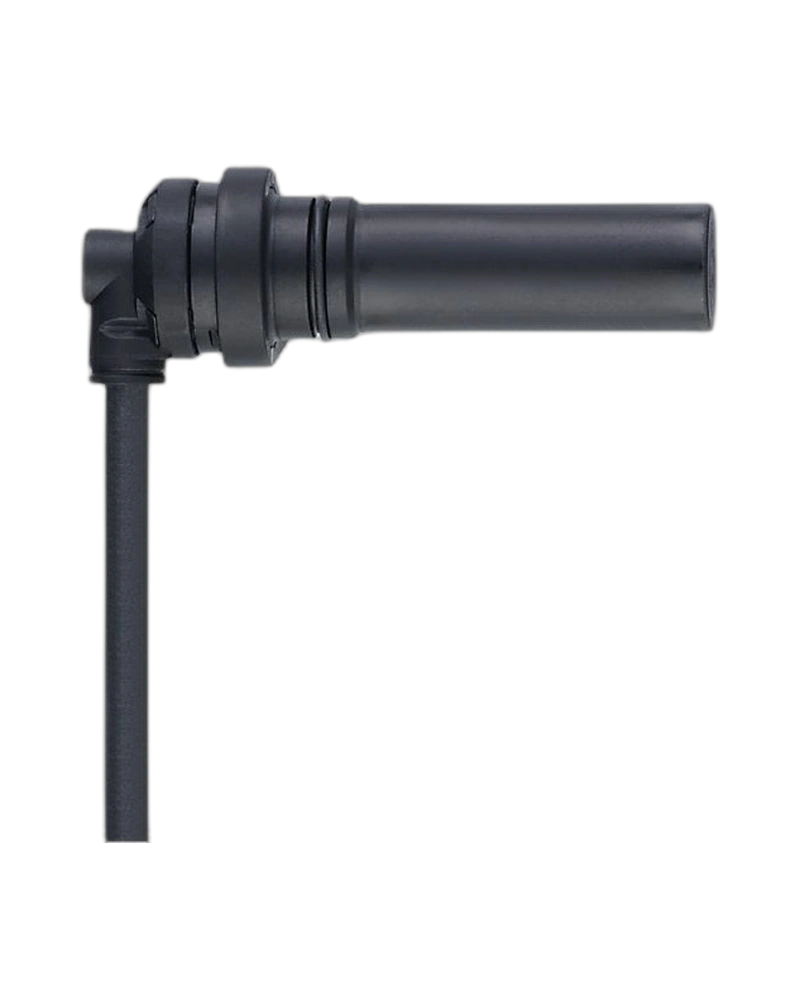

The IFM MX5051 is a PNP rotational speed sensor for non-contact detection of metal toothed wheels. It has a 1.7 mm sensing range and a normally open output function. The sensor uses a 2 m PUR cable for direct connection to the control system. Its Ø15 × 64.5 mm body is designed for industrial speed monitoring applications. The sensor provides a compact solution for detecting rotational movement in drives and machine axes.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MX5051 uses a PNP normally open output for compatible industrial control systems. The sensor detects metal toothed wheels without mechanical contact. Its 1.7 mm sensing range provides a defined target distance. This arrangement supports reliable pulse generation from rotating machinery. The sensor is suitable for drive and machine-axis speed monitoring.
A 2 m PUR cable provides direct connection to the automation system. The longer cable is useful where the sensor is installed some distance from the control connection. PUR provides suitable mechanical durability for industrial applications. The prewired construction reduces installation complexity. This makes the sensor practical for production machinery.
The Ø15 × 64.5 mm housing provides a compact cylindrical installation format. The threaded sensor body can be positioned close to a suitable toothed target. Its 1.7 mm sensing range supports precise mechanical installation. The sensor is intended for rotational speed applications. It is suitable for automated equipment requiring reliable speed feedback.
Rotational speed sensor
MXD41,7-BPKG/H/ZH
PNP electrical design
Normally open output
1.7 mm sensing range
1 mm operating distance
2 m PUR cable
Ø15 × 64.5 mm body
Non-contact metal detection
Toothed-wheel monitoring
Industrial speed sensing
Compact cylindrical design
Motor speed monitoring
Gearbox monitoring
Drive systems
Machine axes
Rotating machinery
Conveyor systems
Industrial automation
Motion feedback
Machine control
Speed measurement
The MX5051 provides a direct switching signal when the toothed target is detected. Its PNP normally open output integrates easily with compatible controllers. The 1.7 mm sensing range supports stable target positioning. The 2 m cable gives useful installation reach. This makes it suitable for automated speed-monitoring systems.
The cylindrical housing can be mounted close to rotating gear components. Its compact diameter helps conserve machine space. The integrated PUR cable simplifies wiring. The non-contact operating principle avoids mechanical contact with the target. This supports reliable long-term speed detection.
| Specification | MX5051 Details |
|---|---|
| Product | Speed sensor |
| Order number | MX5051 |
| Product designation | MXD41,7-BPKG/H/ZH |
| Sensor type | Rotational speed sensor |
| Electrical design | PNP |
| Output function | Normally open |
| Sensing range | 1.7 mm |
| Operating distance | 1 mm |
| Cable length | 2 m |
| Cable material | PUR |
| Housing diameter | 15 mm |
| Housing length | 64.5 mm |
| Target | Metal toothed wheel |
| Detection | Non-contact |
| Switching output | PNP |
| Mounting style | Cylindrical threaded |
| Toothed-wheel detection | Yes |
| Speed monitoring | Yes |
| Machine-axis use | Yes |
| Drive use | Yes |
| Cable connection | Fixed |
| Sensor body | Cylindrical |
| Industrial application | Yes |
| Motion detection | Yes |
| Rotational feedback | Yes |
| Automation integration | Yes |
| Cable type | PUR |
| Manufacturer | IFM electronic |
| Pack quantity | 1 piece |
