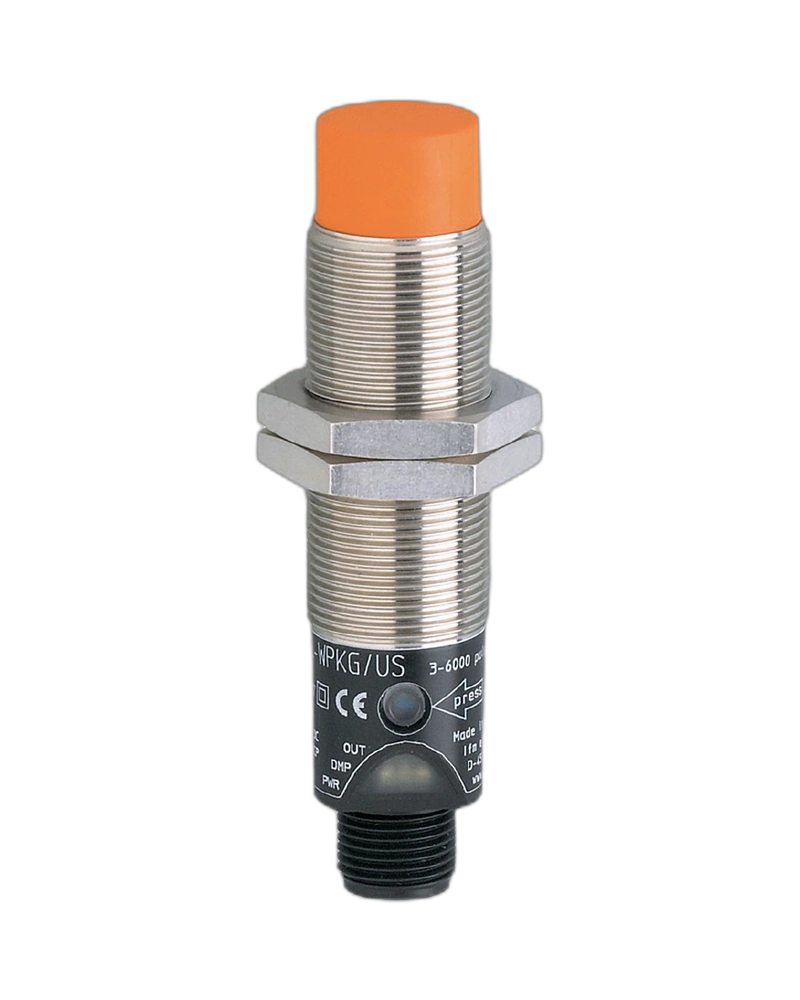

IFM DI6001 is a compact speed-monitoring unit designed for reliable monitoring of rotating equipment. It combines sensing and evaluation functionality in a compact industrial housing. The unit is suitable for detecting machine speed and movement conditions. It can provide a switching signal to connected automation systems. Its compact format supports easy installation close to the monitored target.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DI6001 is designed for applications requiring direct speed supervision. IFM documentation identifies DI6001 as a compact M18 speed monitor with a switching output and additional pulse output. The unit operates from 10–36 V DC and has a specified setting range of 3–6000 pulses/min in the referenced IFM catalogue.
The unit can monitor rotating components and provide control signals according to configured speed conditions. The additional pulse output can provide useful speed-related information for compatible systems. This allows the device to be used for machine control and monitoring. It is suitable for conveyors, drives and rotating machinery. The integrated design helps simplify system architecture.
The M18 compact housing supports practical installation in machine structures. A setting pushbutton and LED indication can assist with setup and status monitoring. The device can be integrated into PLC-based control systems. It is suitable for industrial environments where reliable speed supervision is required. Correct installation should follow the applicable IFM instructions.
Compact speed monitor
M18 housing
10–36 V DC supply
Speed monitoring
Switching output
Additional pulse output
Setting pushbutton
LED indication
Compact machine installation
Rotational movement monitoring
Industrial automation integration
Speed supervision
Conveyor systems
Motor monitoring
Rotating shafts
Drive systems
Machine tools
Material handling
Production lines
Rotary equipment
Industrial automation
Machine protection
| Parameter | Details |
|---|---|
| Model | DI6001 |
| Product type | Compact speed monitor |
| Measuring principle | Inductive |
| Housing | M18 |
| Supply voltage | 10–36 V DC |
| Setting range | 3–6000 Imp/min |
| Output | Switching + pulse output |
| Application | Speed monitoring |
| Target | Metallic target |
| Sensing range | Refer to datasheet |
| Operating distance | Refer to datasheet |
| Output function | Refer to datasheet |
| Current consumption | Refer to datasheet |
| Start-up delay | Adjustable |
| Switch-point adjustment | Pushbutton |
| LED indication | Yes |
| Connection | M12 / model dependent |
| Housing material | Refer to datasheet |
| Protection rating | Refer to datasheet |
| Operating temperature | Refer to datasheet |
| Pulse output | Yes |
| Monitoring function | Speed |
| Installation | Threaded |
| Product family | Speed sensors |
| Manufacturer | IFM |
