The IFM MX5015 is a two-channel speed sensor with a 2 m PUR cable for rotational speed detection. It provides a 1.7 mm sensing range and supports switching frequencies up to 15,000 Hz. The sensor uses a DC NPN electrical design and operates from 7 to 30 V DC. Its Ø15 × 49.5 mm housing operates from -32 to 140°C and provides IP65/IP68/IP69K protection. The two pulse outputs provide a 90° ±20° phase relationship for rotational monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MX5015 detects metal toothed wheels without mechanical contact. Its two pulse outputs provide rotational information for compatible evaluation electronics. The phase shift is 90° ±20° and the mark-to-space ratio is 50% ±10%. This enables the connected control system to interpret rotational movement. The 1.7 mm sensing range provides controlled target positioning.
The sensor is supplied with a 2 m PUR cable. The cable contains four 0.34 mm² conductors for the electrical connection. The prewired design eliminates the need for separate connector termination. This makes the sensor suitable for direct installation into machine wiring systems. The cable length also provides useful routing flexibility around motors and drives.

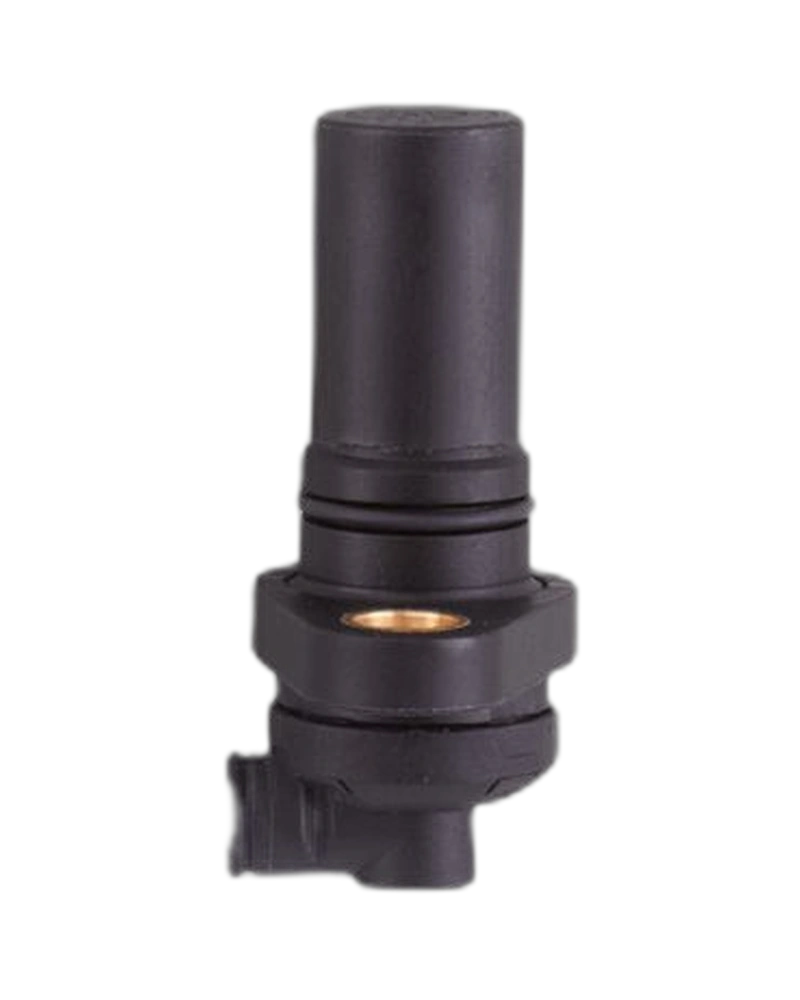

The sensor uses a cylindrical Ø15 × 49.5 mm body. Its socket is made from brass, while the housing is PA and the O-ring uses FKM. The specified tightening torque is 7 Nm. The 1.25 mm toothed-wheel module provides the reference target geometry. The sensor weighs approximately 82.7 g.
Rotational speed sensor
MXD41,7 ANOG/H/2M/ZH
Two pulse outputs
NPN electrical design
7…30 V DC
1.7 mm sensing range
1 mm operating distance
1.25 mm toothed-wheel module
1…15,000 Hz switching frequency
2 m PUR cable
4 × 0.34 mm² conductors
IP65/IP68/IP69K
-32…140°C
Ø15 × 49.5 mm housing
82.7 g weight
Brass socket
PA housing
FKM O-ring
7 Nm tightening torque
90° ±20° phase shift
50% ±10% mark-to-space ratio
Rotational speed measurement
Gear-wheel monitoring
Motor monitoring
Drive systems
Machine axes
Industrial automation
Rotating machinery
Conveyor systems
Motion control
Speed feedback
The integrated 2 m cable simplifies electrical installation. The PUR cable provides a durable industrial connection. Four conductors support the supply and pulse-output arrangement. The prewired construction reduces field termination requirements. This is useful for machine builders seeking straightforward sensor installation.
The 15 kHz switching frequency supports high-speed gear-wheel detection. The dual pulse outputs provide additional rotational information. The phase relationship supports direction or sequence evaluation where required. The 1.7 mm sensing range maintains a defined sensor-target relationship. This makes the MX5015 suitable for fast rotating machinery.
| Specification | MX5015 Details |
|---|---|
| Product | Speed sensor |
| Order number | MX5015 |
| Product designation | MXD41,7 ANOG/H/2M/ZH |
| Sensor type | Rotational speed sensor |
| Electrical design | DC NPN |
| Supply voltage | 7…30 V DC |
| Current consumption | <30 mA |
| Protection class | III |
| Channels | 2 |
| Sensing range | 1.7 mm |
| Operating distance | 1 mm |
| Switching frequency | 1…15,000 Hz |
| Toothed-wheel module | 1.25 mm |
| Phase shift | 90° ±20° |
| Mark-to-space ratio | 50% ±10% |
| Cable length | 2 m |
| Cable material | PUR |
| Conductors | 4 |
| Conductor size | 0.34 mm² |
| Housing diameter | 15 mm |
| Housing length | 49.5 mm |
| Weight | 82.7 g |
| Housing material | PA |
| Socket material | Brass |
| O-ring | FKM |
| Tightening torque | 7 Nm |
| Protection | IP65/IP68/IP69K |
| Ambient temperature | -32…140°C |
| Connection | Fixed cable |
