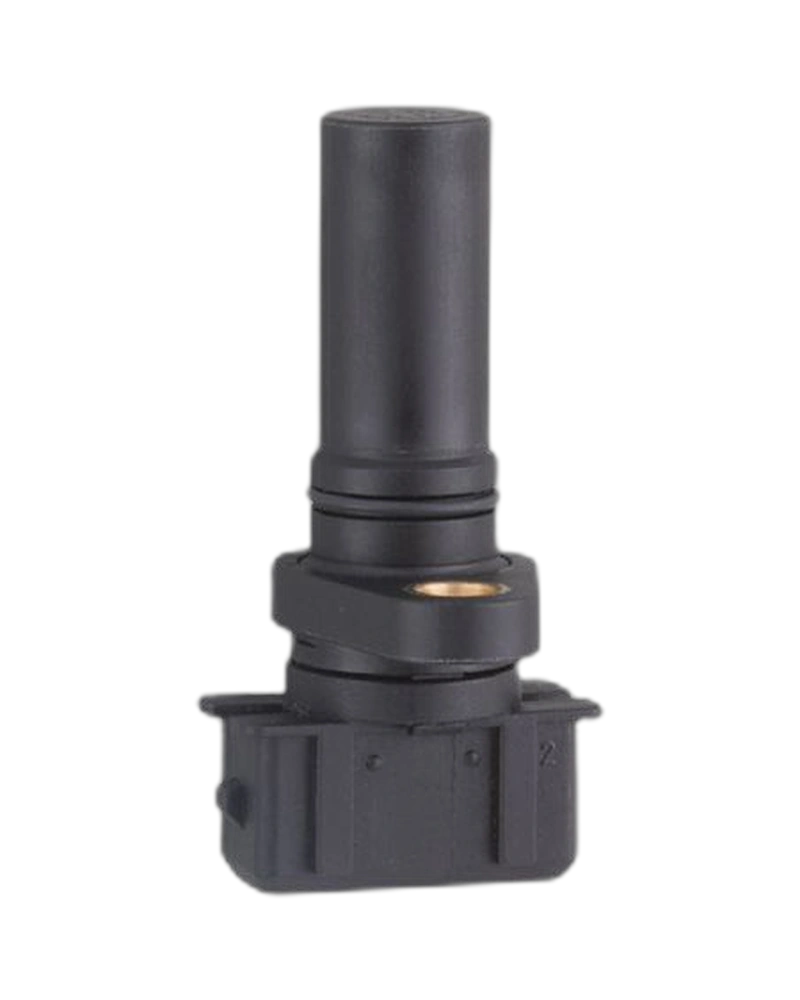

The IFM MX5004 is a two-channel rotational speed sensor for non-contact detection of metallic toothed wheels. It provides a 1.7 mm sensing range and supports switching frequencies from 1 to 15,000 Hz. The sensor uses a DC NPN electrical design with a 7 to 30 V DC supply range. Its IP67/IP69K protection and -32 to 140°C ambient range support demanding industrial machinery. The cylindrical Ø15 mm sensor provides compact integration into drive and axis systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MX5004 detects rotating toothed wheels without physical contact. Its 1.7 mm sensing range allows controlled positioning relative to the target wheel. The sensor can process switching frequencies up to 15 kHz. This enables monitoring of high-speed rotating equipment. It is suited to drive, motor and machine-axis applications.
The two-channel design provides A and B pulse outputs. The pulse channels support phase-based rotational information. The sensor uses an NPN output design for compatible control electronics. This arrangement can provide useful rotational information for speed and movement analysis. The quick-disconnect design also simplifies sensor replacement.
The MX5004 operates from -32 to 140°C. Its IP67/IP69K rating supports protection against dust and high-pressure cleaning conditions. The sensor uses a cylindrical plastic housing with industrial connector construction. Its protection class III electrical design supports low-voltage machine integration. These characteristics make it suitable for demanding automation equipment.
Rotational speed sensor
MXD41,7 ANOG/H/AMP
Two-channel output
DC NPN design
7…30 V DC supply
1.7 mm sensing range
1 mm operating distance
1.25 mm toothed-wheel module
1…15,000 Hz switching frequency
IP67 protection
IP69K protection
-32…140°C ambient range
Protection class III
Quick-disconnect connection
Cylindrical Ø15 mm housing
High-speed tooth detection
Non-contact sensing
Drive and axis monitoring
Motor speed monitoring
Gear-wheel detection
Drive systems
Machine axes
Rotating machinery
Conveyor systems
Industrial automation
Motion monitoring
Machine control
High-speed equipment
The 15 kHz switching frequency allows the MX5004 to detect fast-moving toothed targets. This is useful for motors, drives and high-speed mechanical systems. The non-contact principle eliminates mechanical sensor wear. The 1.7 mm sensing range provides a defined target distance. This supports consistent rotational pulse generation.
The sensor's IP67/IP69K protection makes it suitable for industrial environments. The broad -32…140°C range supports demanding temperature conditions. The quick-disconnect connection simplifies replacement and service. The compact cylindrical body fits into restricted machine spaces. This provides a practical speed-sensing solution for automated machinery.
| Specification | MX5004 Details |
|---|---|
| Product | Speed sensor |
| Order number | MX5004 |
| Product designation | MXD41,7 ANOG/H/AMP |
| Sensor type | Rotational speed sensor |
| Housing | Cylindrical |
| Diameter | 15 mm |
| Electrical design | DC NPN |
| Supply voltage | 7…30 V DC |
| Current consumption | <30 mA |
| Protection class | III |
| Reverse polarity protection | No |
| Output current | <50 mA |
| Short-circuit protection | No |
| Switching frequency | 1…15,000 Hz |
| Sensing range | 1.7 mm |
| Operating distance | 1 mm |
| Toothed-wheel module | 1.25 mm |
| Number of channels | 2 |
| Connection | Quick disconnect |
| Ambient temperature | -32…140°C |
| Plug-area temperature | 125°C |
| Protection | IP67/IP69K |
| Connector protection | IP54 |
| Target | Metallic toothed wheel |
| Detection method | Non-contact |
| Application | Rotational speed |
| Housing material | Plastic |
| Mounting | Threaded cylindrical |
| Sensor family | MXD speed sensor |
