The IFM MX5000 is a high-speed rotational speed sensor for non-contact detection of metal toothed wheels. It uses a two-channel NPN output arrangement for speed and direction-related pulse detection. The sensor provides a 1.7 mm sensing range and supports switching frequencies up to 15 kHz. Its operating temperature range extends from -32 to 140°C, with IP67/IP69K protection. The compact Ø15 × 70 mm cylindrical design is suitable for demanding drive and axis applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MX5000 is designed for non-contact detection of metallic toothed wheels. Its 1.7 mm sensing range provides the required distance for compatible gear-wheel applications. The sensor supports switching frequencies up to 15,000 Hz. Two pulse outputs allow detailed rotational information to be processed by connected electronics. This makes the sensor suitable for high-speed machinery.
The sensor provides two pulse outputs designated A and B. The pulse signals have a phase shift of 90° ±20°. The mark-to-space ratio is specified at 50% ±10%. This arrangement provides two-channel rotational information for compatible evaluation electronics. It allows the system to determine rotational behaviour from the generated pulse sequence.

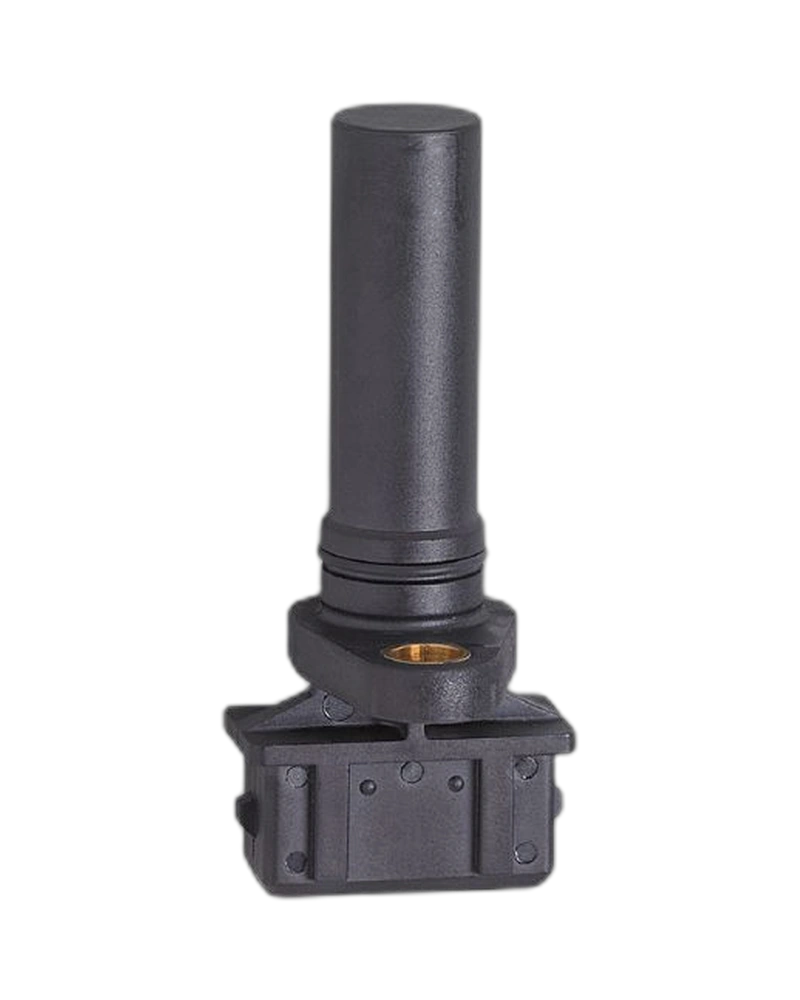

The MX5000 uses a cylindrical PA housing with brass connector hardware and an FKM O-ring. It operates from 7 to 30 V DC and has protection class III. The sensor supports -32 to 140°C ambient operation, while the plug area is rated to 125°C. IP67/IP69K protection supports use in demanding industrial environments. The sensor weighs approximately 22 g.
Rotational speed sensor
MXD31,8 ANOG/AMP/H
Two-channel design
NPN electrical output
1.7 mm sensing range
1 mm operating distance
Up to 15,000 Hz switching frequency
7…30 V DC supply
<30 mA current consumption
Protection class III
IP67 protection
IP69K protection
-32…140°C ambient range
125°C plug-area temperature
Ø15 × 70 mm dimensions
PA housing
Brass connector
FKM O-ring
1.25 mm toothed-wheel module
AMP Junior Timer connector
Phase shift 90° ±20°
50% ±10% mark-to-space ratio
Non-contact tooth detection
Rotational speed measurement
Gear-wheel monitoring
Motor speed detection
Drive systems
Machine axes
High-speed machinery
Industrial automation
Conveyor drives
Rotating equipment
Motion monitoring
The MX5000 detects metallic gear teeth without mechanical contact. This eliminates direct wear between the sensor and rotating target. Its high switching frequency supports fast-moving toothed wheels. The 1.7 mm sensing range provides controlled sensor-to-target spacing. This makes it useful for precise rotational monitoring.
The sensor is designed for industrial temperature and environmental conditions. Its -32…140°C operating range supports demanding machinery. IP67 and IP69K protection helps protect the sensor from dust and water exposure. The PA housing and brass connector provide a practical industrial construction. These features support reliable speed sensing in machinery.
| Specification | MX5000 Details |
|---|---|
| Product | Speed sensor |
| Order number | MX5000 |
| Product designation | MXD31,8 ANOG/AMP/H |
| Sensor type | Rotational speed sensor |
| Detection method | Non-contact |
| Target | Metal toothed wheel |
| Electrical design | NPN |
| Channels | 2 |
| Supply voltage | 7…30 V DC |
| Current consumption | <30 mA |
| Protection class | III |
| Reverse polarity protection | No |
| Output current | 50 mA |
| Short-circuit protection | No |
| Switching frequency | 2…15,000 Hz |
| Sensing range | 1.7 mm |
| Operating distance | 1 mm |
| Toothed-wheel module | 1.25 mm |
| Phase shift | 90° ±20° |
| Mark-to-space ratio | 50% ±10% |
| Ambient temperature | -32…140°C |
| Plug-area temperature | 125°C |
| Protection rating | IP67/IP69K |
| Housing | Cylindrical |
| Housing material | PA |
| Connector material | Brass |
| O-ring material | FKM |
| Dimensions | Ø15 × 70 mm |
| Weight | Approx. 22 g |
