Explore performance details, construction highlights, applications, and technical information in one clear overview.

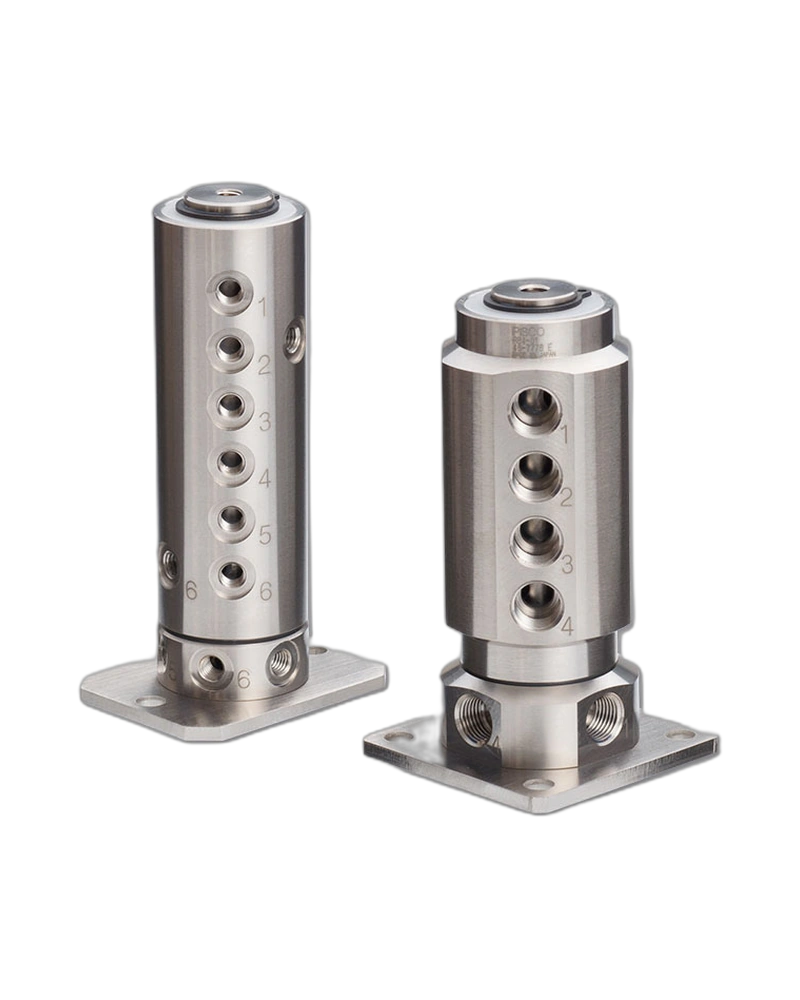

The Multi-Circuit Rotary Joint is a precision-engineered component designed to enable continuous fluid flow between stationary and rotating equipment, such as index tables or rotary machinery. It ensures reliable transmission of air without leakage or disruption during rotation, making it ideal for applications where dynamic movement and consistent performance are required.
The joint features a brass body with electroless nickel plating on the main metal components, providing excellent corrosion resistance and durability under operational conditions. This construction ensures long-term reliability in environments exposed to moisture or mild chemical exposure.
The rotary block is configurable to support either 4, 6, or 8 circuits, allowing users to select the appropriate circuit count based on their system requirements. Port arrangements can be chosen as inline or spiral, offering flexibility in design and integration with existing piping layouts.
This rotary joint is rated for a maximum operating pressure of 0.9MPa and can handle a maximum vacuum of -100kPa. It operates within a temperature range of 0
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Max. operating pressure | 0.9MPa |
| Max. vacuum | -100kPa |
| Operating temp. range | 0
