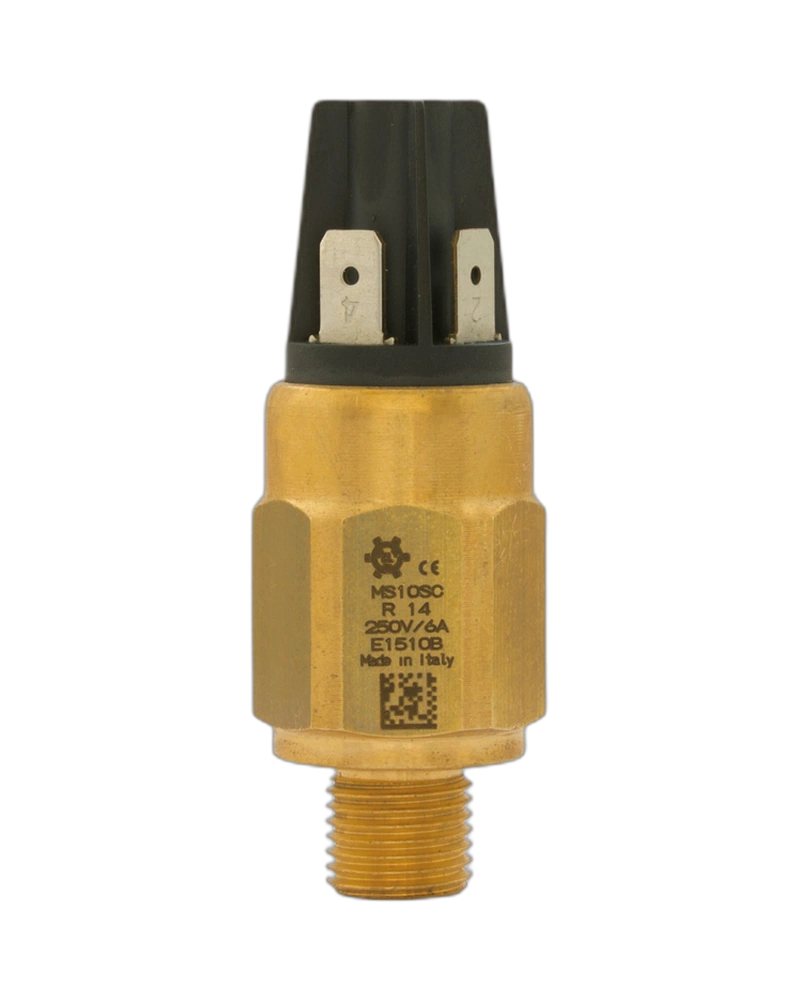

The ELETTROTEC MS10SCBNTR14 - MS-PS - Adjustable pressure switches with SPDT contacts - MS-PS - Adjustable pressure switches with SPDT contacts - MS-PS - Adjustable pressure switches with SPDT contacts is an industrial Pressure intended for professional equipment and system applications, with product-specific technical characteristics available for selection and integration. Key characteristics include Dimensions: Body Ch 27 – Max. high 79; Switch rating: 250 Vac, 24 Vdc; 30 V with “G” option / 6 (2) A; 30 mA with “G” option; Adjustment range: 0.2 – 2 bar – 1 – 10 bar – 10 – 50 bar – 30 – 100 bar – 30 – 150 bar – 50 – 300 bar.

Product Overview

The MS10SCBNTR14 - MS-PS - Adjustable pressure switches with SPDT contacts - MS-PS - Adjustable pressure switches with SPDT contacts is a Pressure intended for professional industrial applications.

Technical Characteristics

Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.

Key Features

• Dimensions of Body Ch 27 – Max. high 79 for installation and space planning.
• Switch rating of 250 Vac, 24 Vdc; 30 V with “G” option / 6 (2) A; 30 mA with “G” option for application-specific selection and integration.
• Adjustment range of 0.2 – 2 bar – 1 – 10 bar – 10 – 50 bar – 30 – 100 bar – 30 – 150 bar – 50 – 300 bar for application-specific selection and integration.
• Hysteresis of From 10% to 30% of set-point value for application-specific selection and integration.
• Body material of Brass – zinc plated steel – AISI 316 for durable industrial use.
• Max. static pressure of 300 bar, 600 bar (according to possible pressure range and body material) for application-specific selection and integration.
• Electrical connection of Faston 6.3 x 0.8 for straightforward system integration.
• Temperature tange of -30 °C +140 °C (according to diaphragm/seal material) for application-specific selection and integration.

Applications

The MS10SCBNTR14 - MS-PS - Adjustable pressure switches with SPDT contacts - MS-PS - Adjustable pressure switches with SPDT contacts can be considered for industrial systems and equipment requiring a Pressure. Final suitability should be evaluated against the complete system requirements.

Selection Considerations

Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.

Product Summary

The MS10SCBNTR14 - MS-PS - Adjustable pressure switches with SPDT contacts - MS-PS - Adjustable pressure switches with SPDT contacts is an industrial Pressure. Selection should be based on the documented characteristics and the requirements of the intended application.
