Explore performance details, construction highlights, applications, and technical information in one clear overview.

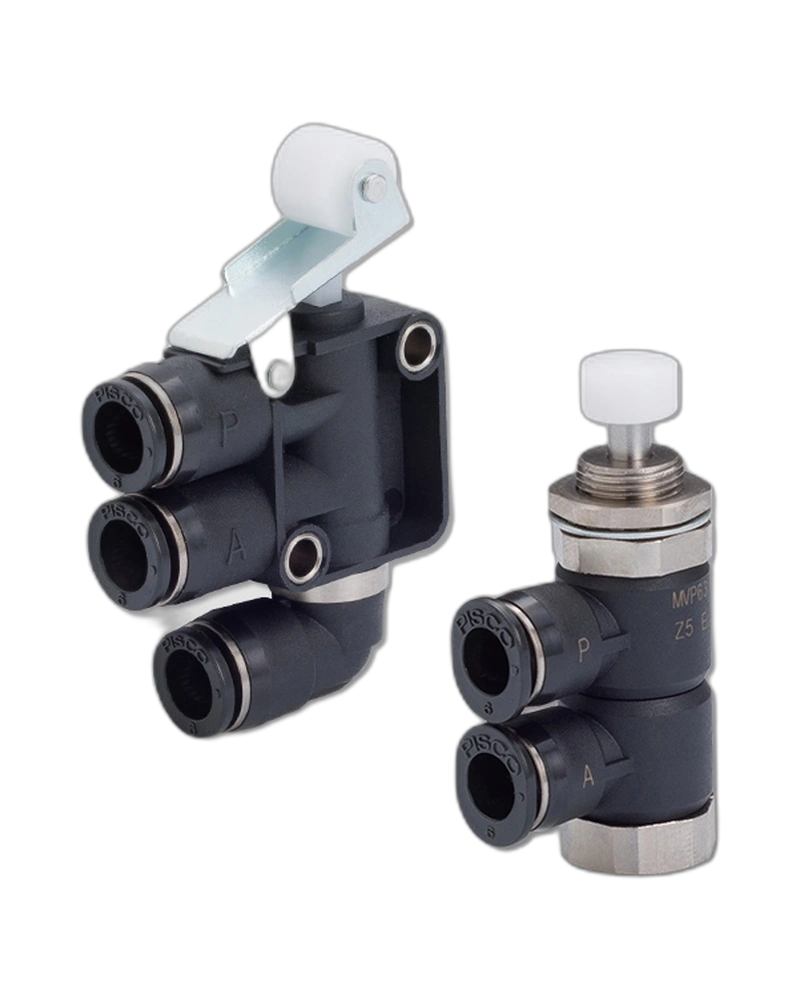

The Mechanical Valve is a push-type pneumatic control valve designed to open and close the input of air pressure. It provides reliable on-off switching of airflow using a spool valve mechanism, ensuring that the operating force remains consistent regardless of the input air pressure strength.
The valve's main resin components are constructed from PBT (polybutylene terephthalate), a standard resin suitable for general environmental conditions. The primary metal parts are made from brass with electroless nickel plating, offering durability and corrosion resistance in typical industrial settings.
The valve features a panel mount design with a rotatable fitting that allows the tube outlet direction to be freely adjusted, enabling flexible integration into various control panels or equipment layouts without requiring additional mounting hardware.
This mechanical valve operates within an air pressure range of 0 to 0.7 MPa and is suitable for ambient temperatures between 0°C and 60°C (no freezing). When closed, the three-directional control valve exhausts residual pressure, ensuring safe and stable system conditions.
Available in two sizes: φ4 mm and φ6 mm (equivalent to φ1/8" and φ5/32"), providing options for different tubing and system compatibility. The valve is offered in standard finishes with no color variation specified.
The valve integrates directly into pneumatic systems via its panel mount design, with the push-type actuation mechanism allowing manual operation. The rotatable outlet fitting enables precise alignment during installation, supporting direct connection to air lines or control circuits.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Operating pressure range | 0
